2x2 shapeoko mod / aluminium rulers reinforcement
done for an artiste using it as canvas engraver
shapeoko2 really rocks it well shapeoko #customMade cnc

e2e8917814d308d4a6e54d747ff2fe13.jpeg720×960 57.1 KB

bcbe53ef8a2a400ea3efbe5850247c2e.jpeg2048×1536 426 KB

b2bc066021c1c4e315aeaf41c14dbe4d.jpeg1280×853 173 KB

2

Thanks sharing your project. Did you need to upgrade your stepper motors to handle the new size? Also not fully understanding the reinforcement. Di you add something to to tracks to stiffen it up?

3

hi;
the motors have been upgraded to nema 23 for X and Y axis
for the reinforcement both x and y axis use straight edge aluminium (http://www.concretetool.co.uk/handtools/pics/StraightEdge.jpg)

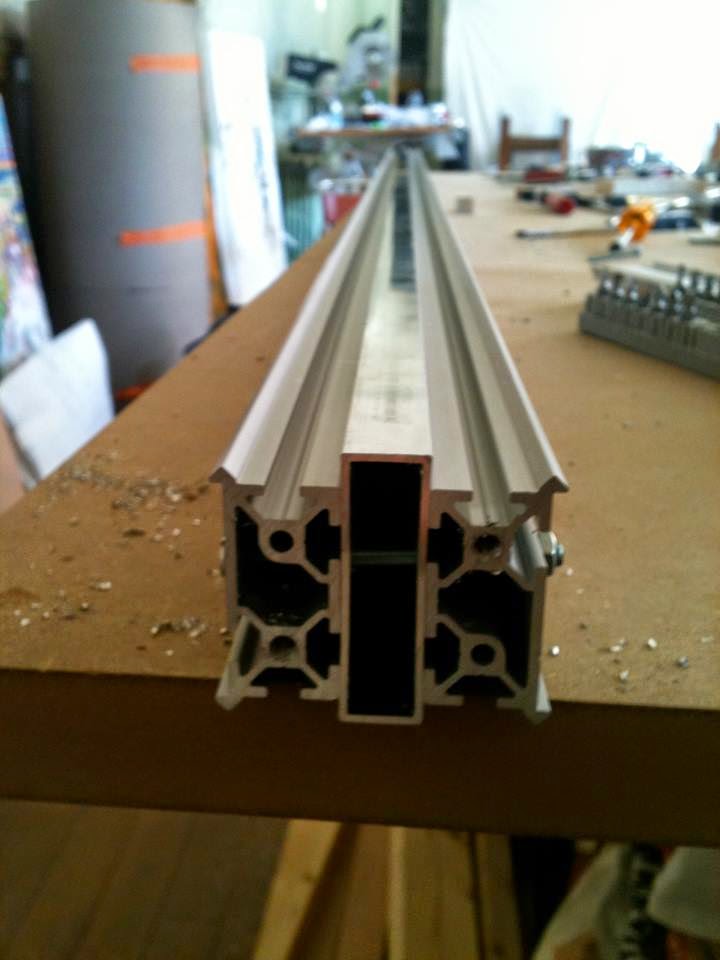

for the X axis :
rails are on both side :

and bolted together ( img2)

for y axis only in the inside of the work area / those are also use as protection for the rails (img 3) bolted to the rail AND the work surface

i probably have some more pictures of the cnc while working on it

j.
