#ScoutCoreXY 3D MODEL VIEWER ON #SKETCHFAB: Scout CoreXY [XY:F694ZZ, Z:624vv, Horizontal X] - 3D model by thorfab [6c6dd3f] - Sketchfab
Finally got the courage to take the previous #ScoutCoreXY design that had the tiny, pushed-outwards (but space efficient) Y Rods clamps.

It wasn’t easy, had to do some important changes in the process: X axis is now horizontal instead of vertical, footprint is a bit larger.

I am not happy about the larger footprint for the same print area but I’ve learned that it is important that the smooth rods’ ends on X are fully supported by screws instead of floating at the mercy of the belts tension, which tends to bring them to solid contact, possibly bending/flexing the Y rods (Vertical vs Horizontal X rods arrangement? What distance between rods?).

Also the larger footprint of the frame is not that disappointing as I could incorporate the square-tube-clamp that I have been repeating throughout the design also for the Y rods’ ends clamps and also now I have enough room to include my 4-point-adjusting-collars, with which I can very precisely square and level the XY stage.

Attached/Linked are the relevant pictures

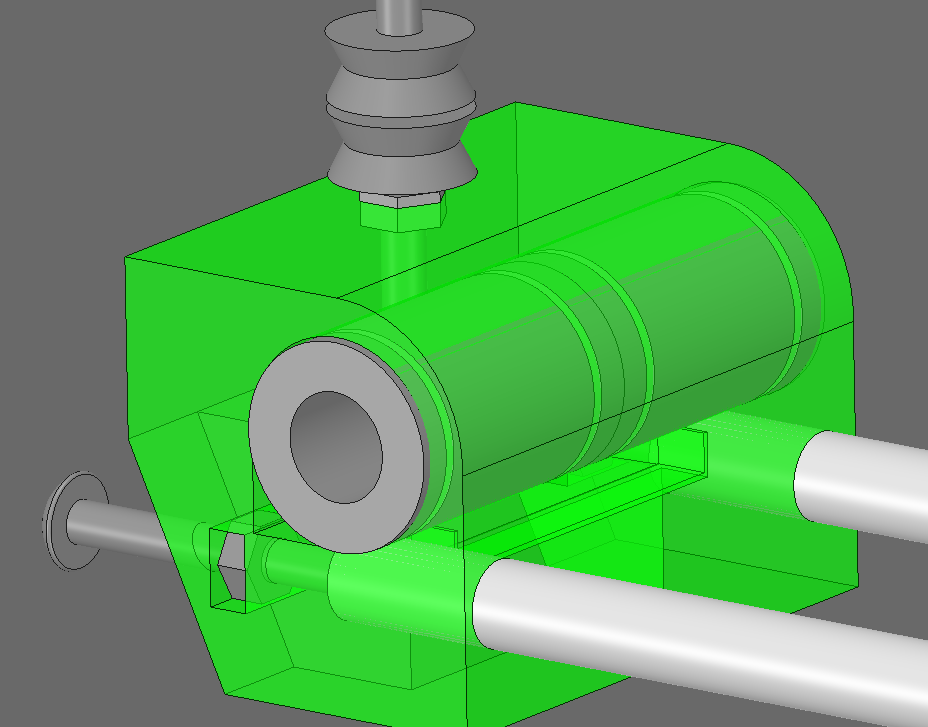

c7054297d3f4b40edb415cab8158f5aa.png763×724 32.1 KB

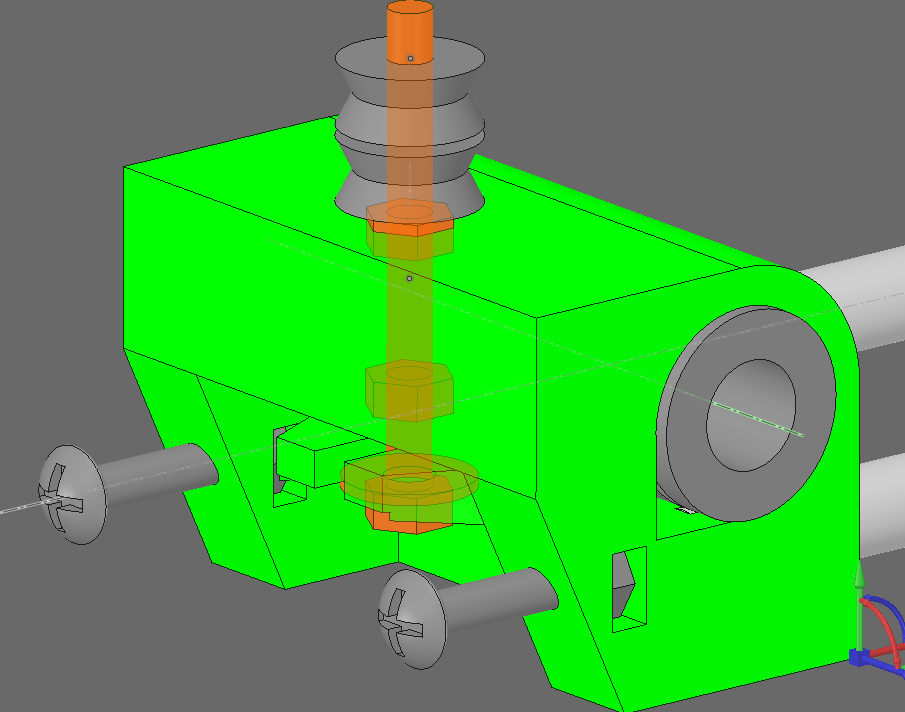

78cff08971e15830f54e2536f05c36f7.png928×727 49.2 KB

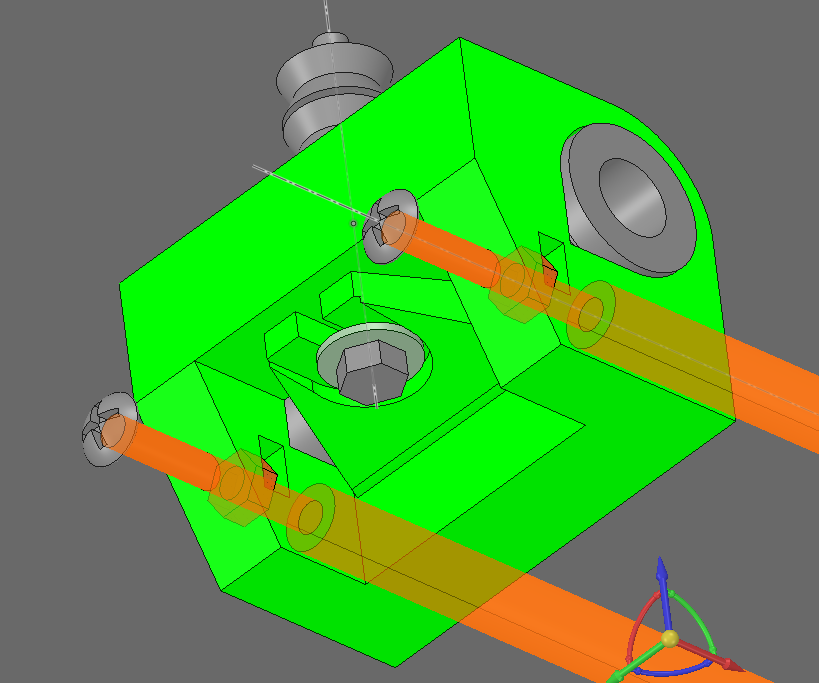

574c7cc7302de41a2c3ee61c286a7978.png791×700 31.1 KB

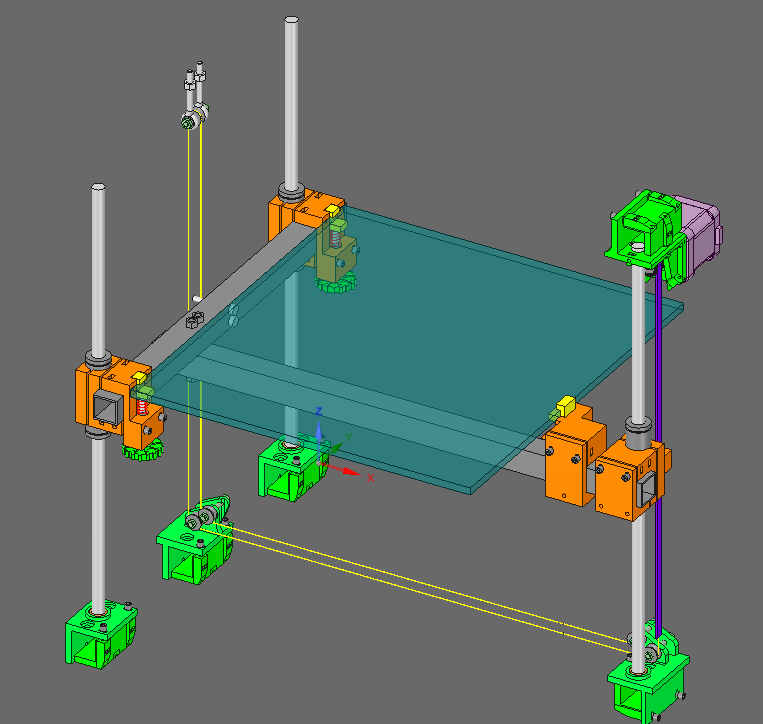

4d3991370f2459bb99e03b8a1c082025.png905×712 48.2 KB

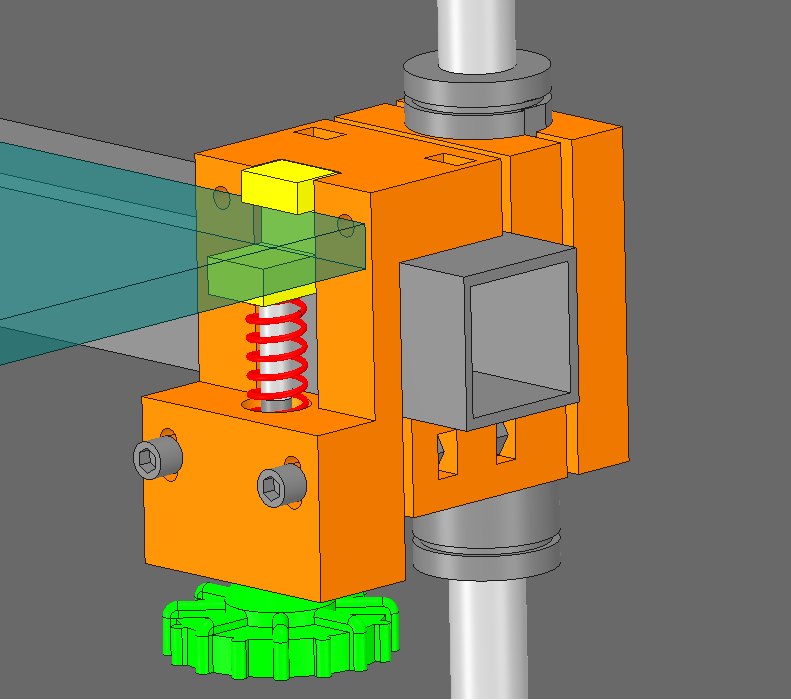

0a8dd8c09a1bda61d83ed8d3482f7df8.png819×683 54.4 KB

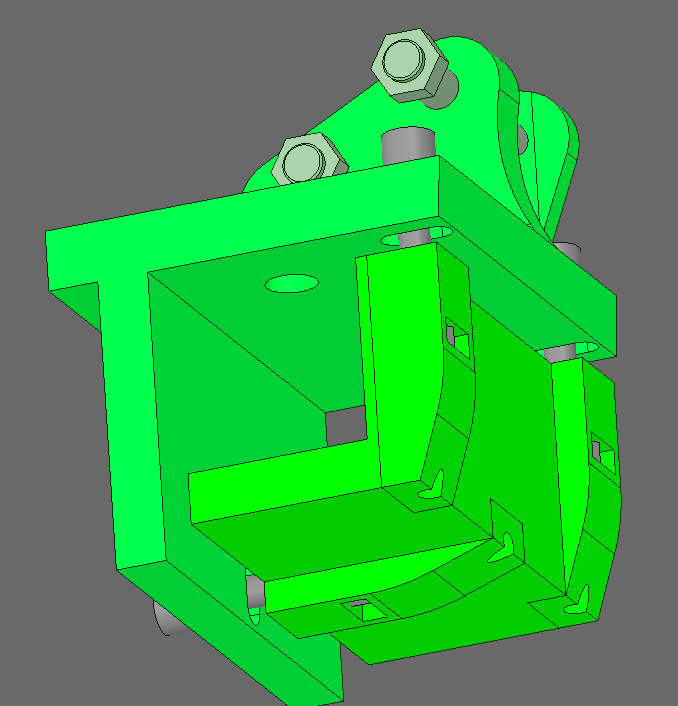

0448d4f6f074d95377455962638b9b9c.png678×706 18.3 KB

2

Here is the 3D MODEL VIEWER on SKETCHFAB:

Discussion/Comments/Sugestions/Critiques are welcomed :slight_smile:

PS: each photo in the attached album has relevant captions so if you are curious feel free to read them and comment.

3

What is Sketchfab?

4

you just have to follow the link and you’ll see: Scout CoreXY [XY:F694ZZ, Z:624vv, Horizontal X] - 3D model by thorfab [6c6dd3f] - Sketchfab
