A Axis
Just to up-date, I now have a axis running thanks to @Jim_Fong
Tested and run for first time on LW4 and all looks good once I get my head around how it all works and get some good position and results I need.

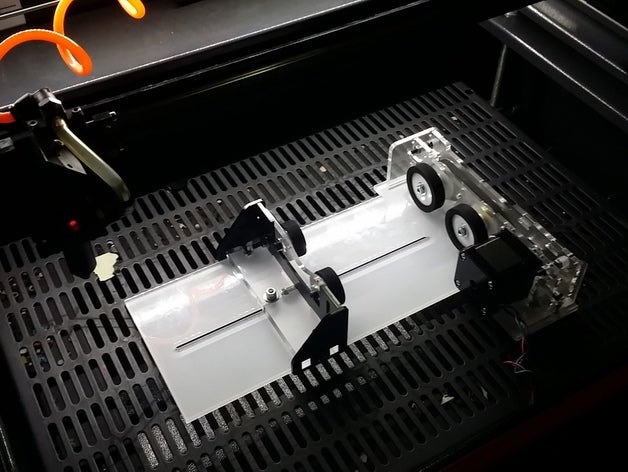

My Axis is made from a sliding bearing block which I have removed the slider bearing and installed a roller bearings in both ends.

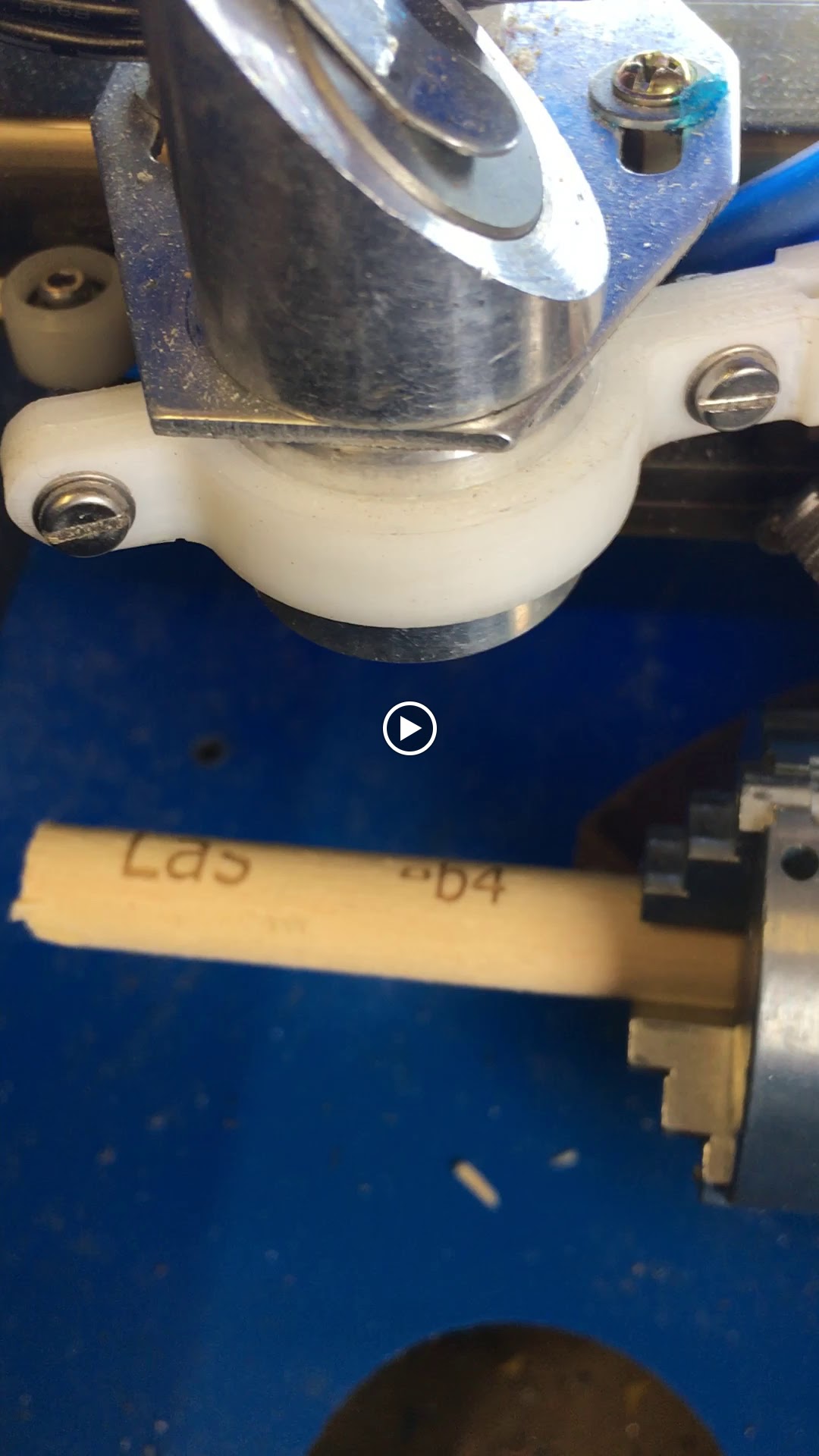

Small 45mm 3 jaw 12x.1 threaded chuck mounted on 12mm shaft.
Currently mounted on 12mm acrylic sheet with magnets inserted on the bottom to hold it in place.
I need to set up a 4 pin connector and sheath the cables now and then get my Z axis and bed sorted. #K40AAxis#K40rotarydevice
I have been watching this evolution with interest and this is on my list to add to my K40.
Has anyone pulled together one contiguous set of:
…Mechanical drawings and parts list
…Wiring diagrams for Smoothie and C3D
…Smoothie configuration changes
…LW configuration
…Test file
I would be happy to help do that if we are at that point since I will want to do that for mine?
@donkjr I will pull together a parts list and a drawing for mine and can post it in to the K40 G+
Just setting up a LW test file so I can get accurate measurements maintaining correct circumference.
If I pull together anything else then will post it.
@donkjr As discussed above, thread posted on the K40 with the drawings.
I have made some changes so will up-date the drawing over the next few days hopefully.
check this thread out.
