A question for those who have worked with Living Hinges before.

Yuusuf_Sallahuddin_Y · March 28, 2016, 10:03am

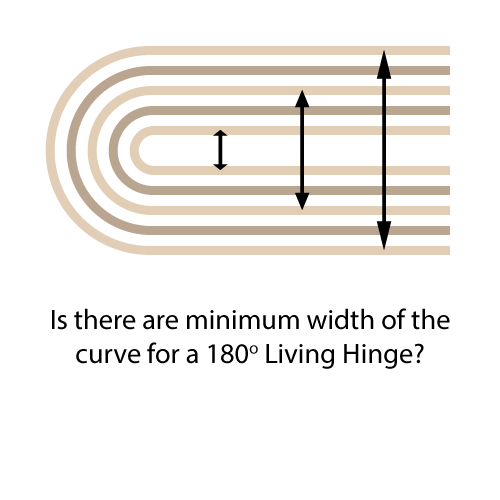

Is there a minimum curve size for bending 180 degrees?

I intend to make something out of 1/8 ply (or 3mm) & I am curious as to how small the curve can be. Also I am curious as to how far around the curve area the living hinge cut lines are required to go?

Mishko_Mishko · March 28, 2016, 11:24am

I guess that depends greatly on the density of the cuts (links), kerf and thickness, and of course the material itself. This guy made quite a science of lattice hinges: https://www.deferredprocrastination.co.uk/blog/category/def-proc/lattice-hinges/

Yuusuf_Sallahuddin_Y · March 28, 2016, 11:41am

@Mishko_Mishko Thanks Mishko. I’ll take a look at that.

StephaneBUISSON · March 28, 2016, 3:57pm

@Yuusuf_Sallahuddin_Y
https://www.deferredprocrastination.co.uk/blog/2011/laser-cut-lattice-living-hinges/

oups! sorry too late so I post this video too (still learning myself)

Yuusuf_Sallahuddin_Y · March 28, 2016, 4:13pm

@StephaneBUISSON Thanks Stephane. Yep it seems you were too late, but better late than never.

StephaneBUISSON · March 28, 2016, 4:17pm

@Yuusuf_Sallahuddin_Y as I edit it I am not sure you see the video too

Yuusuf_Sallahuddin_Y · March 28, 2016, 5:07pm

@StephaneBUISSON Thanks for that. I may have overlooked the edit if you didn’t mention it. I’ll take a look.

Yuusuf_Sallahuddin_Y · March 28, 2016, 5:11pm

@StephaneBUISSON That video is great & very helpful to show just how flexible things become with the living hinge. As I’ve never tried it, it is good to see the issues faced with different spacing between lines, different overlaps, etc.
