Another update and a slightly shorter to-do list on my custom bot.

3D Printing
,
1

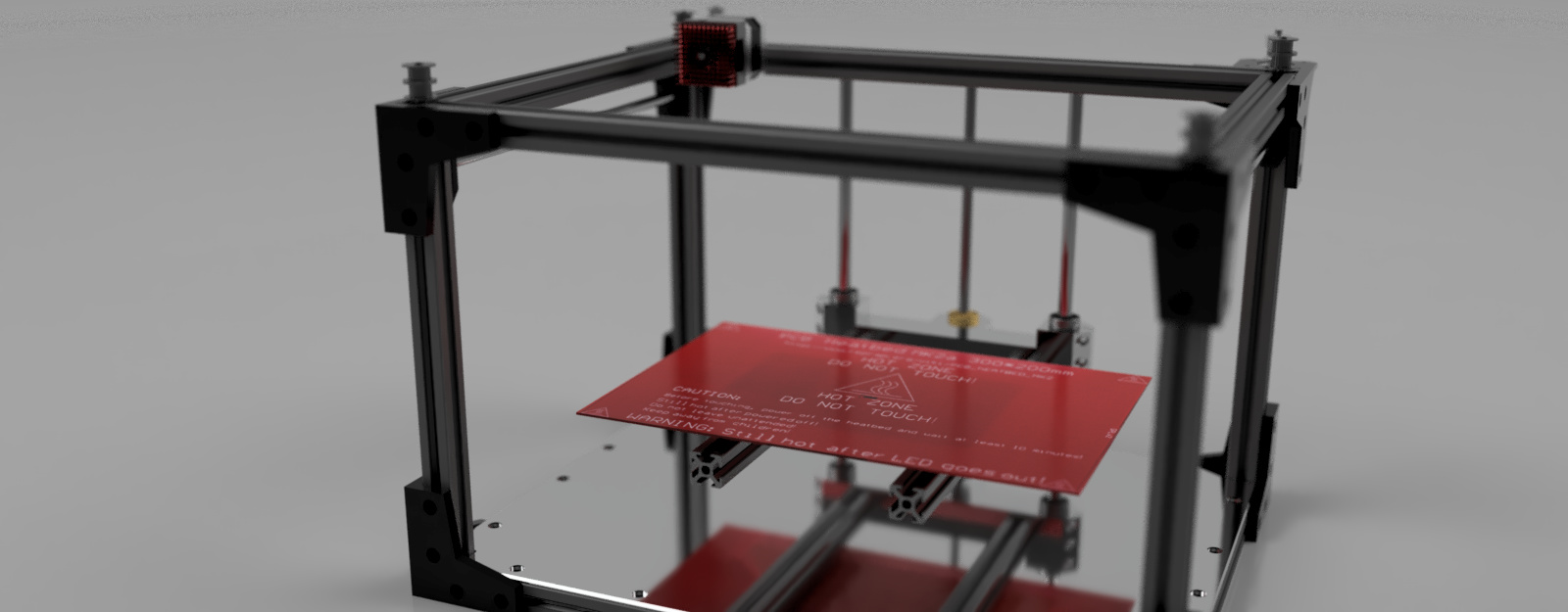

Another update and a slightly shorter to-do list on my custom bot. Next things I will have to do is to figure out how to place the pulleys for a planar core-xy setup and design the y-carriages, the carriage for the bed. Last but not least I will have to do the designs and placement investigatios for the PSU, Display (probably mount it on the 7-stage) and the mainboards.

ba213d64016a4f0cb467ccd4776b6c24.jpg1600×625 137 KB

2

You should look here for some good ideas:

HyperCube 3D Printer found on #Thingiverse HyperCube 3D Printer/CNC by Tech2C - Thingiverse

It uses the core xy principle too with 2 belts on their own plane

3

Unfortunately I have some issues with the gantry on my machine. I think I can get some inspiration from the hypercube. Thanks for the suggestion!
