Awesome thermal images of Shai Schechter 's new hot end.

3D Printing
,
1

Awesome thermal images of @Shai_Schechter 's new hot end.

Originally shared by Shai Schechter

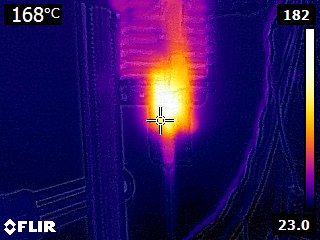

(See my previous post) Here’s also some cool thermal images of the hotend.









2

Here’s the link to the video as well. Really impressed how well the heat is contained under the heat break!

3

The thermal camera can’t detect the temperature of the upper portion of the heatbreak, only the temperature of the surface of the heatsink.

4

Yes sure there will be some reflection, but it is still showing the sharp transition. The FLIR is 10 degrees off from what the thermistor is reading because it’s closer to the core.

5

No, not reflection - an IR camera only tells you surface temperatures. It does not tell you the temperature of the inside of the heatbreak.

6

So when is preorder date?

7

@Evan_Nguyen already available for pre-order http://deltaprintr.com/shop/parts-and-accessories/hardware/mini-hotend/

8

Thanks

9

Only talking about FLIR: A good example of a bad thermal vision.

10

Is 80 degrees enough to cause filament to become pliable after a few minutes?
