Building a new machine based on new IGUS Drylin roller bearings http://www.igus.co.uk/wpck/7030/DryLin_W_Hybridlager

Carriages move much more freely than with plain bearings. We just hope they can deal with dirt as well as plain bearings though.

64bfa715a2d1e70b04af8fb3e36bdc8e.jpeg3264×2448 588 KB

4383ad8cd2898bed330876731304f99b.jpeg3264×2448 915 KB

2be72afb5848ee593b120f72952cd600.jpeg3264×2448 908 KB

1be5dd17b07db59e56f60deaff33089e.jpeg3264×2448 566 KB

2

The fitting and construction looks really good. The website link you have contains no price information. How much would a 1m beam + bearing roller cost me?

3

1m of linear guide cost around 35 EUR (or $42), rollers around 16 EUR (or $20). http://www.igus.com/wpck/6920/N09_5_12_WJRM

4

@Shenzhen_Sinjoelaser motors are 4Nm nema23 from http://cnc4you.co.uk

5

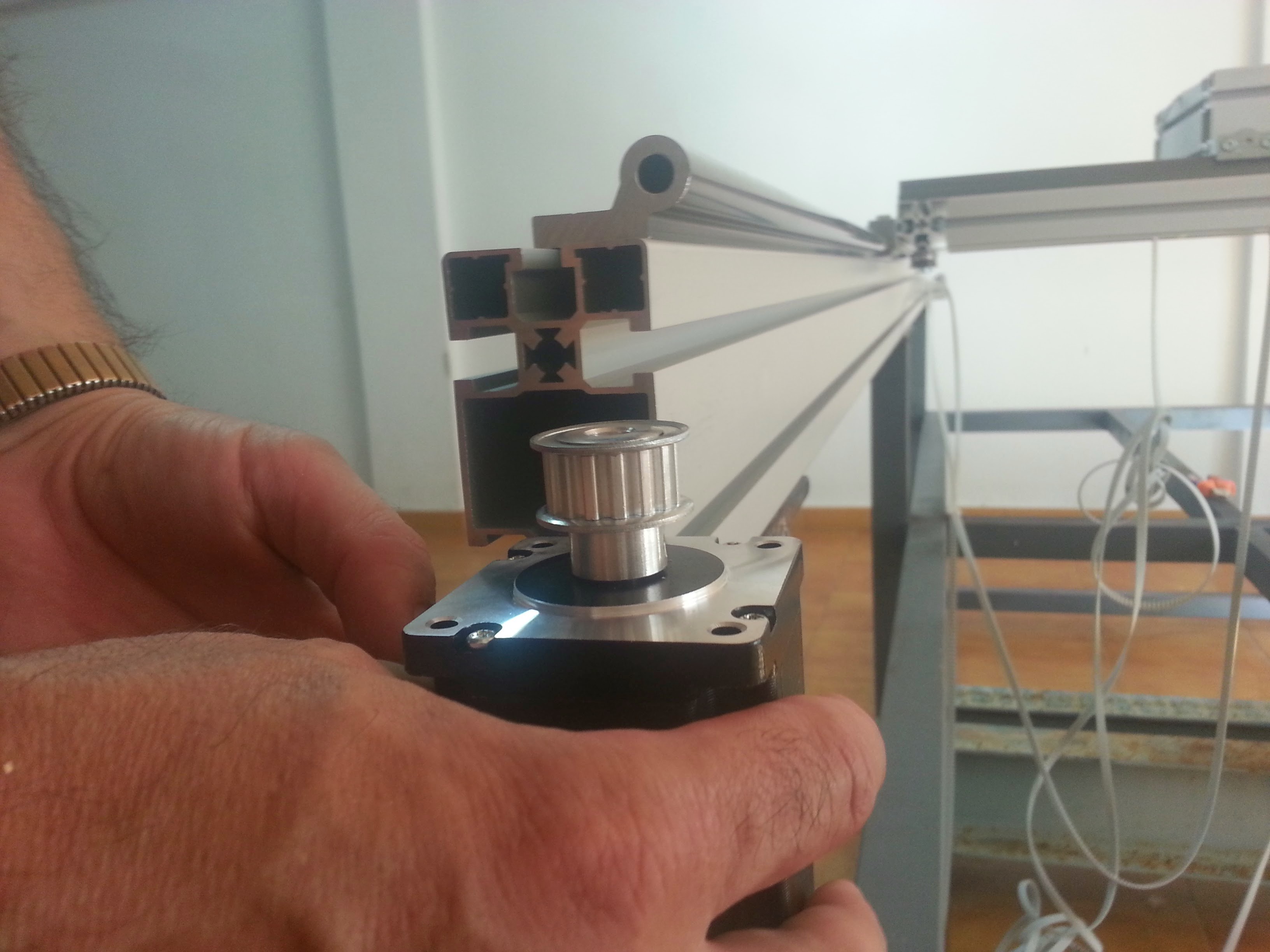

I have added a part to fix steppers to the extrusion: http://www.thingiverse.com/thing:445583
