Created a small 0.96" Oled Display for the BeagleBone Black.

Electronics
, ,
1

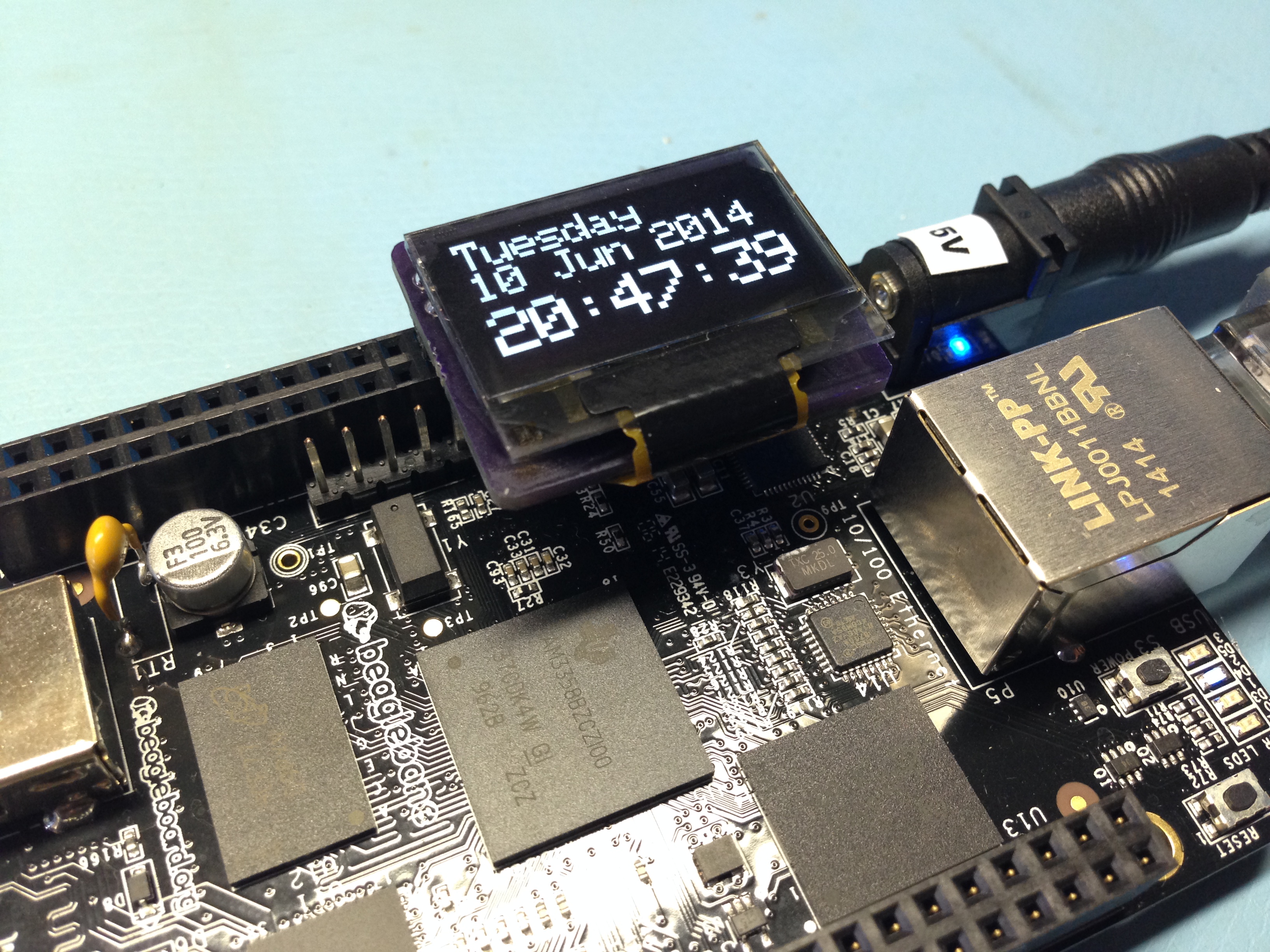

Created a small 0.96" Oled Display for the BeagleBone Black. Could possibly be used to monitor uptime, ram and memory available: http://youtu.be/CQBb_RW_sLI

c31a374969926c5bcc949ff2f0fe94b4.jpeg3264×2448 2.54 MB

2

I need that board :slight_smile:

3

Very nice, I’ve been looking at oled displays to use in a project. I really like your scroll animation… should be good for all sorts of data.

4

I just put it for sale on Tindie.com. Just search the site for BeagleBone and you will see it. Not sure if anyone would want one so I only made the one last night. Backorders are enabled so I can make one up for each order.

5

@mike_rankin Clickity click… git solderin :slight_smile:

6

https://www.tindie.com/products/miker/beaglebone-black-096-oled-display/

7

That’s slick.

8

Previously my setup consisted of a mess of wires connected to a display on a breadboard. This is much more portable.

9

Just ordered one, and while waiting for it to be assembled / shipped - how one will talk to the display? I cannot find any mention of interface spec

10

@George_Georgiev Look here - http://guy.carpenter.id.au/gaugette/2014/01/28/spi-ssd1306-oled-for-beaglebone-black/

11

Thank you, DJ! That’s good start.

12

Packaging up your display now to ship out tomorrow morning.

13

And now landeded here…

First comment… anyway to move the board a smidege more into the body of BBB? It was soooo close to fitting inside http://www.adafruit.com/products/1555

14

Good idea. I have no case for mine and never thought of mounting it more towards the middle.

15

@mike_rankin , I have finally came to that project, and I am trying to make it work on Debian’ BBB (kernel 3.8.13). Do you happen to have a pinout of your LCD, I would rather not reverse-engineer it unless I have to :wink:

16

Email me and I’ll attach the schematic.

17

@mike_rankin - ggeorgiev2001 at gmail com Thanks!
