Thank you everyone for jumping in, I really do appreciate it. This community is awesome.

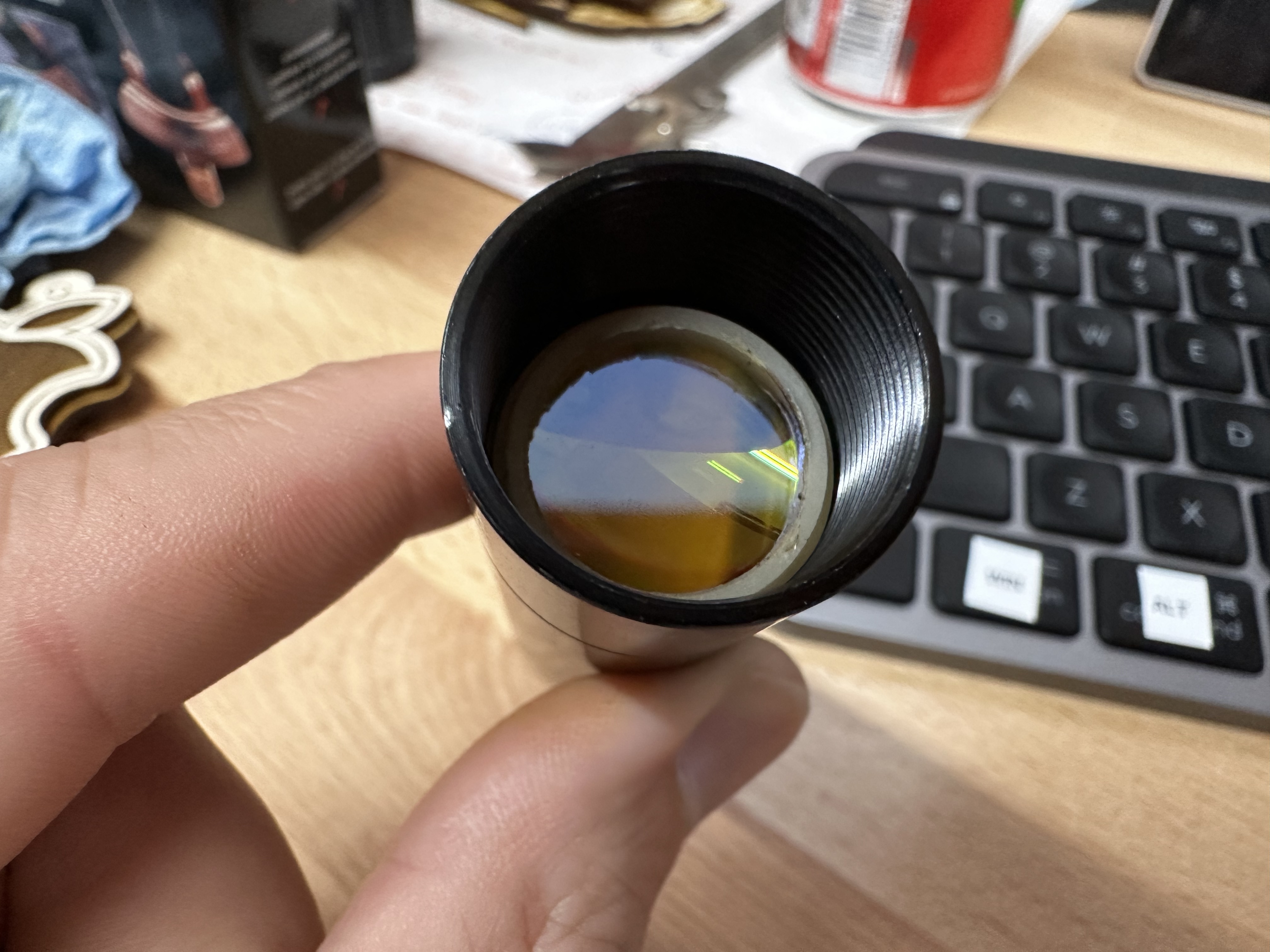

@dougl I cleaned my lense and check the o-ring to ensure it was secure.
Everything is as secure as it can be. I have a K40, my first laser, and that thing is wobbly. I mean how can this flimsy piece of metal hold that mirror stable?? The K40 doesn’t have this type of pattern going on. What an amazingly cheap piece of tech that just works.
Here are the settings I have setup for FluidNC.
I don’t think my acceleration values are out of the question. As a matter of fact, the image in one of my prior posts that I engraved on pine (just a square) I had adjusted the acceleration down to 1000 mm/sec2.
Sorry for this, the forum wouldn’t let me upload a text file???
name: "TMC2209 XYZ Laser"
board: "FluidNC 4X 2209"
stepping:
engine: I2S_STATIC
idle_ms: 255
dir_delay_us: 1
pulse_us: 4
disable_delay_us: 0
axes:
shared_stepper_disable_pin: NO_PIN
x:
steps_per_mm: 200
max_rate_mm_per_min: 18000
acceleration_mm_per_sec2: 3000
max_travel_mm: 750
homing:
cycle: 1
mpos_mm: 0
positive_direction: false
seek_mm_per_min: 3000
feed_mm_per_min: 240
motor0:
limit_neg_pin: gpio.36:high
limit_pos_pin: NO_PIN
limit_all_pin: NO_PIN
pulloff_mm: 5
tmc_2209:
uart:
txd_pin: gpio.16
rxd_pin: gpio.4
rts_pin: NO_PIN
cts_pin: NO_PIN
baud: 115200
mode: 8N1
addr: 0
r_sense_ohms: 0.110
run_amps: 2.0
hold_amps: 0.500
microsteps: 32
stallguard: 0
stallguard_debug: false
toff_disable: 0
toff_stealthchop: 5
toff_coolstep: 3
run_mode: CoolStep
homing_mode: CoolStep
use_enable: false
direction_pin: i2so.1:low
step_pin: i2so.2
disable_pin: i2so.0
y:
steps_per_mm: 106.67
max_rate_mm_per_min: 12000
acceleration_mm_per_sec2: 1500
max_travel_mm: 410
homing:
cycle: 1
mpos_mm: 0
positive_direction: false
seek_mm_per_min: 3000
feed_mm_per_min: 240
motor0:
limit_neg_pin: gpio.39:high
limit_pos_pin: NO_PIN
limit_all_pin: NO_PIN
pulloff_mm: 5
tmc_2209:
addr: 1
r_sense_ohms: 0.110
run_amps: 1.800
hold_amps: 0.500
microsteps: 32
stallguard: 0
stallguard_debug: false
toff_disable: 0
toff_stealthchop: 5
toff_coolstep: 3
run_mode: StealthChop
homing_mode: StealthChop
use_enable: false
direction_pin: i2so.4
step_pin: i2so.5
disable_pin: i2so.7
z:
steps_per_mm: 400
max_rate_mm_per_min: 200
acceleration_mm_per_sec2: 25
max_travel_mm: 200
homing:
cycle: 2
mpos_mm: 0
positive_direction: false
seek_mm_per_min: 200
feed_mm_per_min: 100
motor0:
limit_neg_pin: gpio.34:high
limit_pos_pin: NO_PIN
limit_all_pin: NO_PIN
pulloff_mm: 4
tmc_2209:
addr: 2
r_sense_ohms: 0.110
run_amps: 2.000
hold_amps: 0.500
microsteps: 16
stallguard: 0
stallguard_debug: false
toff_disable: 0
toff_stealthchop: 5
toff_coolstep: 3
run_mode: StealthChop
homing_mode: StealthChop
use_enable: false
direction_pin: i2so.9
step_pin: i2so.10
disable_pin: i2so.8
spi:
miso_pin: gpio.19
mosi_pin: gpio.23
sck_pin: gpio.18
i2so:
bck_pin: gpio.22
data_pin: gpio.21
ws_pin: gpio.17
coolant:
flood_pin: gpio.25
delay_ms: 5000
Laser:
pwm_hz: 5000
output_pin: gpio.26
enable_pin: NO_PIN
disable_with_s0: false
s0_with_disable: true
tool_num: 0
speed_map: 0=0% 500=50.000%
