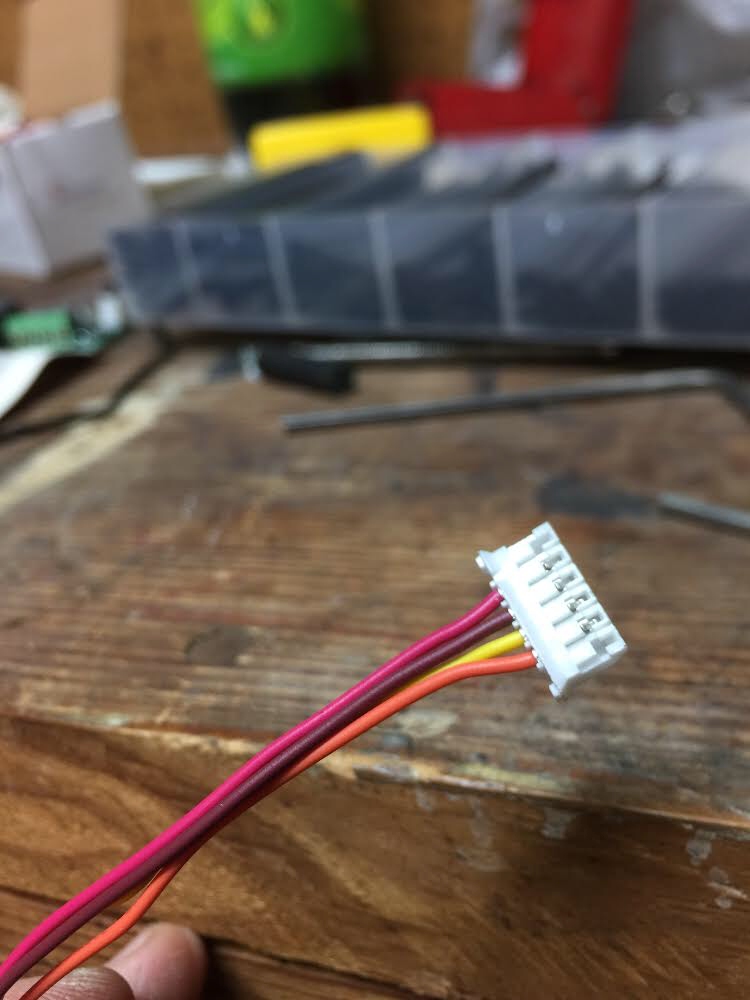

Does any one have a schematic of the stepper motor that comes with the lightobject z table. See the attached picture of the included connection.
We have step by step instructions now on the documentation site for how to wire a z bed and or rotary with external drivers and separate psu.
@raykholo thanks ray I just downloaded the PDF. I’m also trying to figure out what the pin out is on the (Motor: 42HS03 2A 2 phase 4 wires) what each color is supposed to be?
Just keep the wires in that order and plug them into the tb6600
Yeah, that header would already be in the proper pair order. One pair per coil. Doesn’t matter which is A and which is B. Just plug it in.
awesome thanks guys
If you still need to know pairs, you can tell simply by progresively shorting two leads together and turn the motor shaft. When you have a pair the motor will be harder to turn.
Or use a multimeter and check for continuity.
