Eagle BRD Widget 5.8 is live, following are the updates in this version:

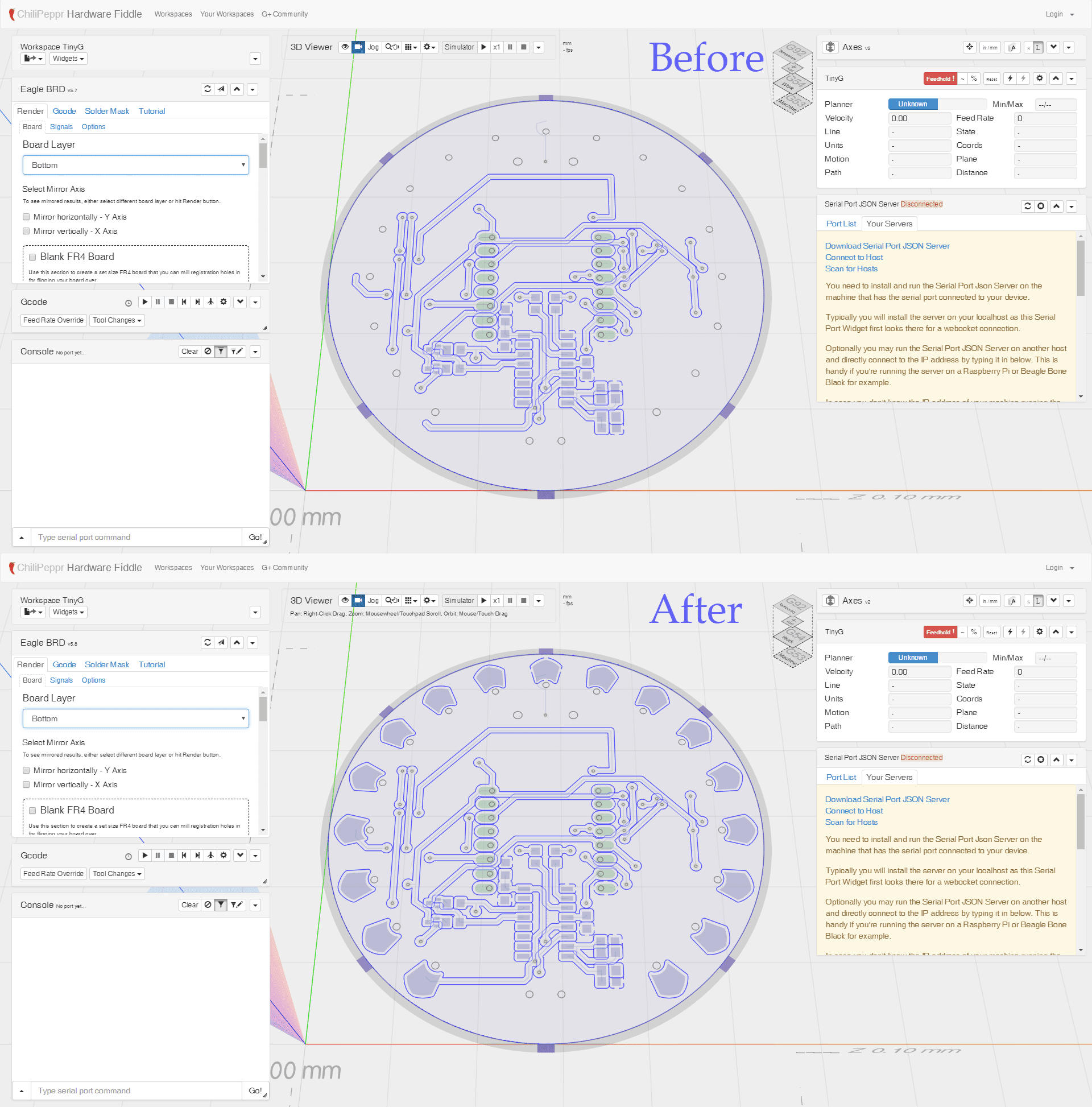

  • Support packages with polygons as pads, Lilypad_Arduino_USB_v12 is a good example.
  • Fix a bug with rendering package dimension wires when element is rotated, example BeagleBone_Blue.brd that comes with Eagle examples.
  • Fix a bug in rendering packages with pads in the bottom layer.
  • Changed 3 old links to jshell.
