Finally get the design for the spindle plate done.

General CNC CNC Routers
, ,
1

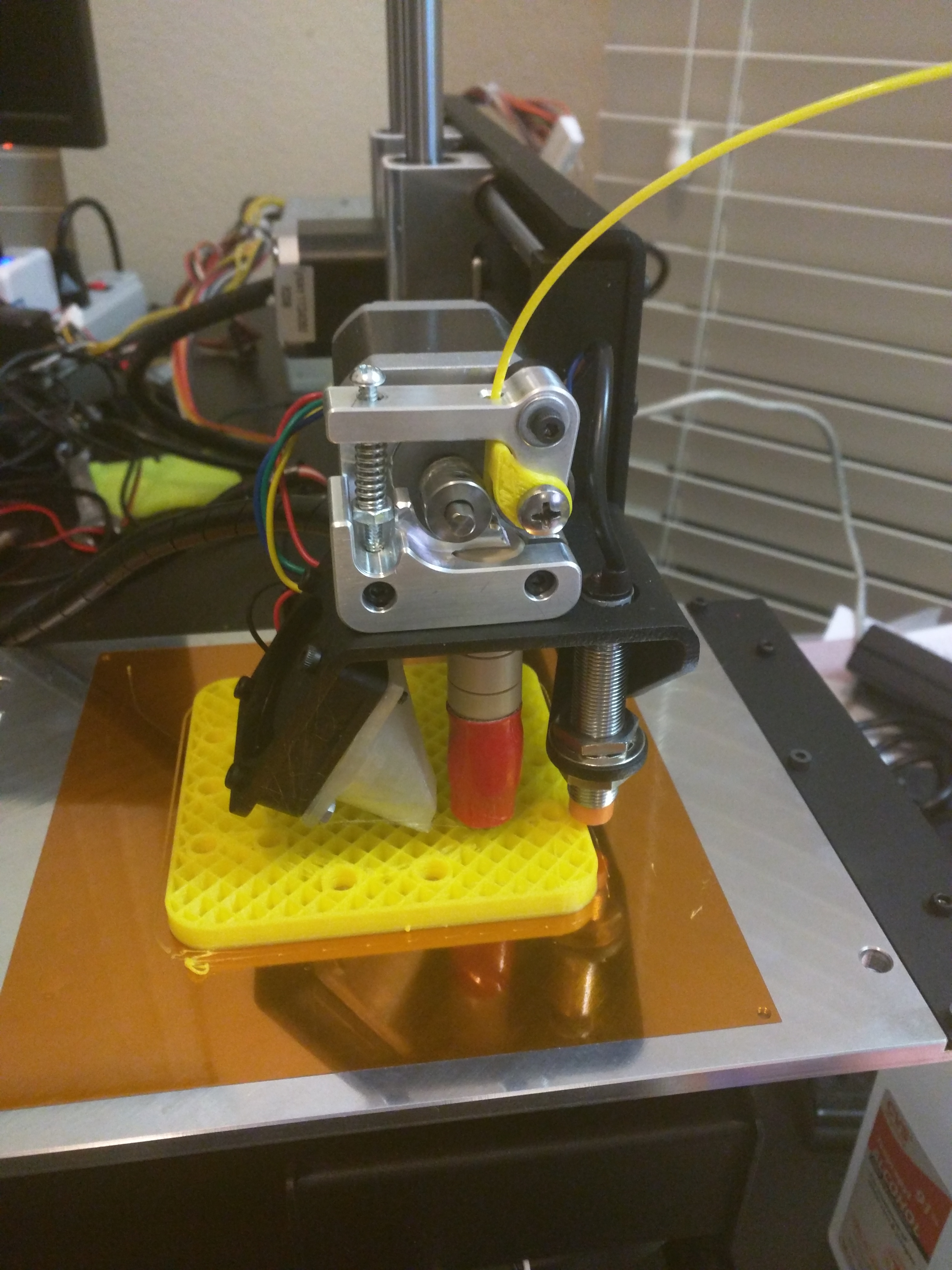

Finally get the design for the spindle plate done. Time to finish up this ox so I can mill aluminum plate for our program.

4cd17e7e59214744fb4024442e8f5c40.jpeg3120×4160 2.27 MB

2

I’ve thought about trying the same thing, but why not more infill?

3

Once happy, I am getting it milled from polycarbonate or aluminum.

4

I looked around for stls and am now trying to import the dxf into sketchup free so I can make my own. It looks like a file conversion game to try to get something that sketchup will take

5

@Charles_Reiche I’ve had some success with using OpenSCAD to import the DXF, extrude it, and then export to STL.
http://en.wikibooks.org/wiki/OpenSCAD_User_Manual/DXF_Extrusion

6

The DXF I downloaded from the openbuilds site has polylines in it and other elements that openscad doesnt work with (yet). I am not a programmer. :frowning:

7

It looks like Inkscape can import/Save as DXF files. Maybe you can import it there and then Save As to (slightly different) DXF to clean up the file for import into OpenSCAD or Sketchup?

8

@Charles_Reiche you don’t need to import the dxf’s to sketchup - the full Ox plans are in SKP.

http://www.openbuilds.com/attachments/v-slot-ox_build_80-11-15-2014-zip.5173/http://www.openbuilds.com/attachments/v-slot-ox_build_80-11-15-2014-zip.5173/

9

@Charles_Reiche That link is the entire Ox x3 (one for Sketchup 7, 8 and 2014…)

If you just want the plates, here: https://www.dropbox.com/s/lf4ukwexv55d7k1/Ox%2080%20Plates%20Only.skp?dl=0

10

Thanks!
