First attempt in CNC routing a PCB :) It was milled without problems.

CAD & CAM Tool Chain LaserWeb/CNCWeb
,
1

First attempt in CNC routing a PCB :slight_smile:

It was milled without problems. By now I did not drill the holes (only marked the center for manual drilling). Some of the copper path got too thin. Next time I have to reduce the Z depth.

To sum up: I’m very satisfied with the result and how LW generated the gcode. Good job guys :slight_smile:

a418788c44de2e662c91d0cd81c8e7e5.jpeg4032×3024 1.8 MB

9a1e1f3994d7cca68658827be20374cf.jpeg1920×1080 217 KB

9da85b6f5b4562a02513ec207834eec4.jpeg1920×1080 228 KB

9e858abffb369f63ea9149d3da090dc2.jpeg4032×3024 1.11 MB

2

How did you remove the copper burr?

3

@Peter_Spiess I just sanded it off but I don’t know, whether this is the propper way or not. :wink:

4

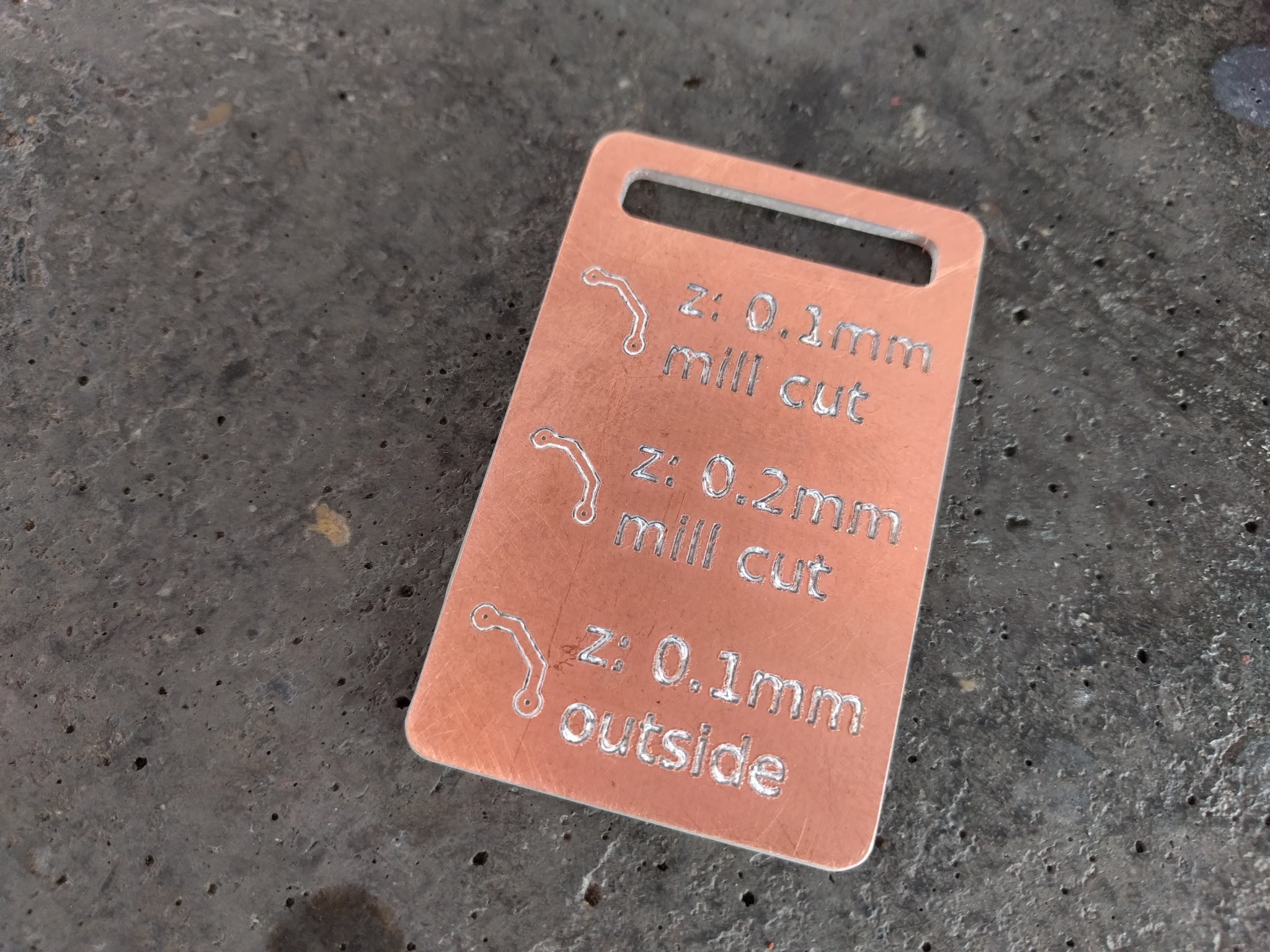

I did some more test cuts. Mill cut outside seems to be the appropiate operation (mill v carve 30°, dia 0.2mm).

b88a7db34ecc270a6725cf735171c27b.jpeg2048×1536 604 KB

5

Well, sounds good…
