First job after install of modded Z-axis (no spacers),

General CNC CNC Routers
,
1

First job after install of modded Z-axis (no spacers), resurface work area :slight_smile:

c77aad0fddf7306839bbf4958ec925e8.jpeg1520Ă—2688 594 KB

2

That looks like something I can use. Slick!

3

Wilhelm, do you have any info on your z upgrade?

4

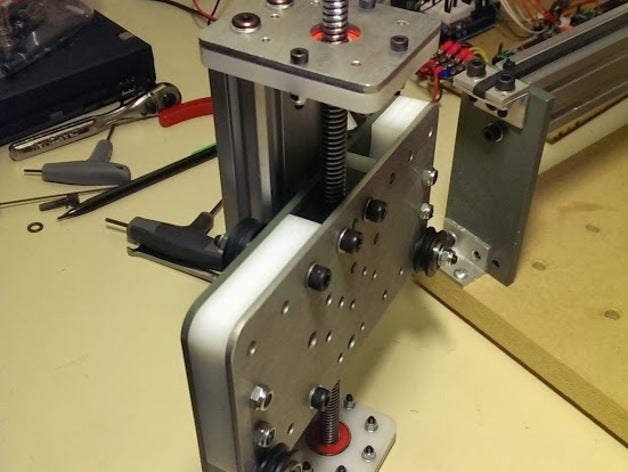

Yes I am getting data to post on shapeoko forum and maybe a YouTube video, but here are the basics…

  1. You need an extra maker-slide plate
  2. HDPE or other material 13mm thick for the z axis plates
  3. HDPE or other material 10mm thick (or 7mm and 3mm, what I did with HDPE and aluminium) for the bearings plate.

I just uploaded the plates slt files to Thingiverse.

Alternately if you have a 3D printer you could skip steps 2,3 and just print the parts.

FYI, I use pyCAM to import the stl files and generate gcode, also easy to project to 2D and change thickness of the material.

Performance wise, I haven’t seen any angular shift since the mod.

5

Added to ShapeOko forum…
http://www.shapeoko.com/forum/viewtopic.php?f=5&t=1037&start=20#p16038
