First prototype of chilly hotend. met our expectations.

3D Printing
,
1

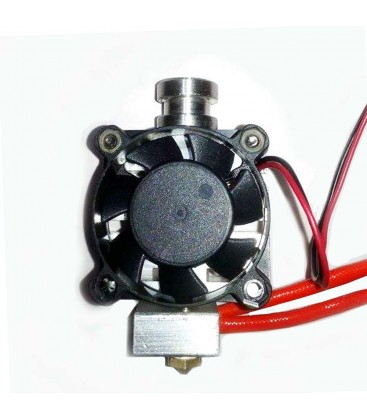

First prototype of chilly hotend. met our expectations.


0324d5e8961b24666da357ab6a473613.jpeg700×800 69.3 KB

2

In other words, you’re copying @Shai_Schechter 's design minus the heater sleeve?

3

@ThantiK exactly what I was thinking

4

@ThantiK @Griffin_Paquette The heat sink model is based on Alpha hotends, alpha hotend had very small fan + heatsink, but here 40mm fan, so bigger fan.

5

I think @Shai_Schechter should be based on Alpha hotend as well.
