Good image of proper lens orientation and difference between an average lens (plano) and

Lasers
,
1

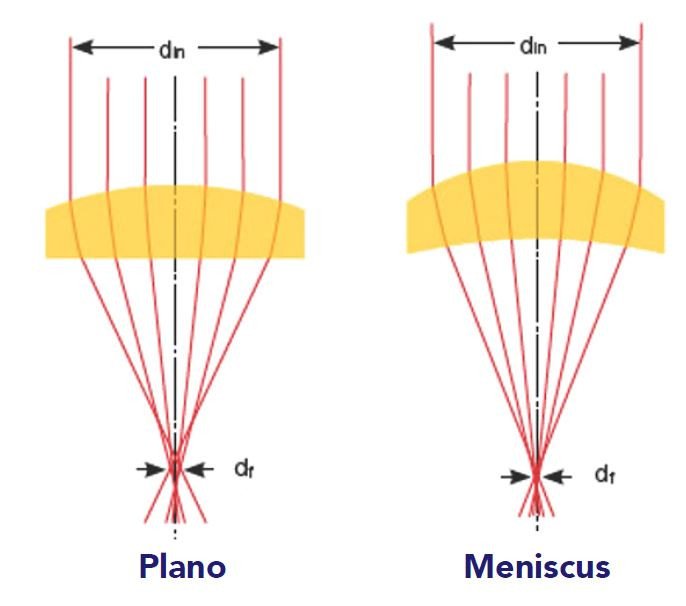

Good image of proper lens orientation and difference between an average lens (plano) and good lens (meniscus)

6314a9bd3ccf25fd5b819dac303ef646.jpeg686×606 32.7 KB

2

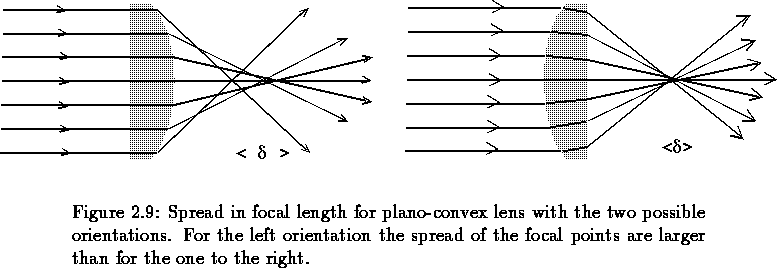

Nice, and this image shows why the orientation of a Plano-convex lens is important.

plano lens orientation.gif
plano lens orientation.gif777×268 5.86 KB

3

Does a meniscus lens give better/higher power cutting?

4

A meniscus lens would give you a thinner kerf and more effective cutting power. However, they tend to be more expensive.

5

@Nedman Thinner kerf, you say? Hmmm… I just looked it up on eBay and found one for $44.00 for a 2.5" fl. The 2" fl was listed at $599! I think maybe that was a typo.

6

All depends on the quality. Last time I looked most of the ones I saw were running around $80 USD or more for a 20mm with a 50.8mm focal.

7

I would be interested to know if anyone has upgraded to a meniscus lens and how much gain there actually was over a plano-convex.

8

I am hoping Santa brings me one for Christmas.

9

Wow, who would have thought this image would be so popular!

10

I would love to find the person who reshared this to some magical laser community, all of a sudden I am getting 10 likes a minute. Wherever it is, it is a goldmine to get information out for projects like Smoothieboard and LaserWeb.
