Google+ post by Krzysztof Bartosik on 2016-05-17 09:45:30 UTC

General CNC CNC Routers
, ,
1

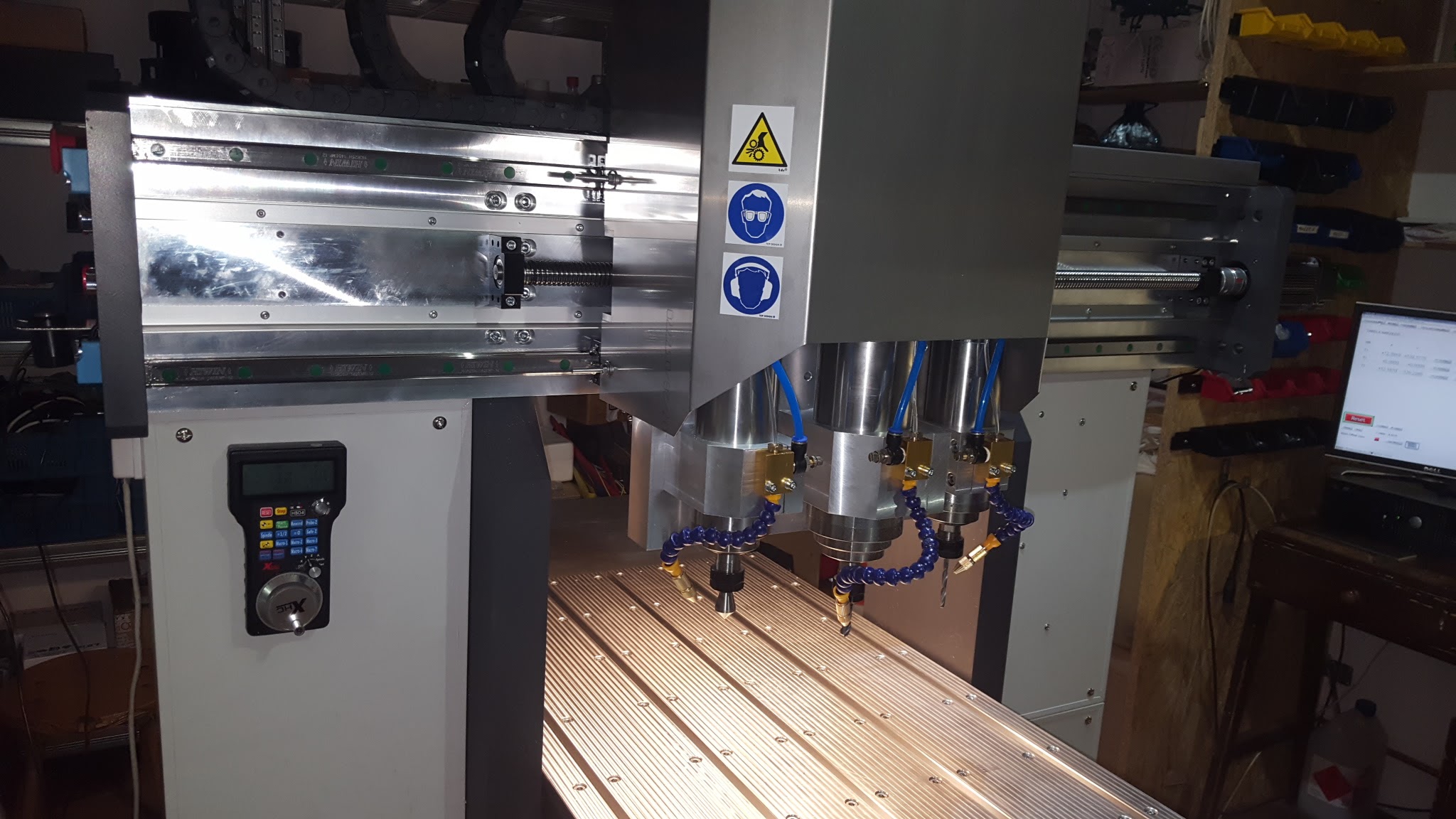

Finish :slight_smile:

1bb4a3165f0ab74b2f3f43fffb3f0f1c.jpeg2048×1152 360 KB

5e1c8337cad15fff19d284ac0b6ca6be.jpeg5312×2988 2.9 MB

9bf3b12405096018782ca1a5fa7b99b7.jpeg2048×1152 352 KB

9881177dd388c3ed8c80f7ddb17bb1d9.jpeg2048×1152 315 KB

cf6225a67724004ce4e75863302edf39.jpeg2048×1152 320 KB

b349827dd1da851b4aad185c4d479f25.jpeg1152×2048 445 KB

81eb52ab6ebac7e911a69af6c3989b4f.jpeg2048×1152 307 KB

2

What a clean beautiful build. What are the machine specifications?

3

XxYxZ1xZ2xZ3xA - 1500x600x300mm

4

No piękna robota. To dla siebie i czy na handel?

5

Na zamówienie… już pracuje u klienta od końca kwietnia :slight_smile:

6

What a beauty krysztof, very good job!

7

Love csmio boards

8

Excellent job!

9

hey Kysztof how to control 3 spindles?
mach3?
how to produce gcode? vectric?
please can explain?
Thanks for share

10

Milling is under control Mach3. Changing tools and related offsets, administer written dedicated to the machine macros: switching servo drivers, measurement and tool changes.
Additionally designed electronics, switch control signal Z axes, supervises signals HOME and limit the Z axis
Milling uses all G-codes with Mach, ie. G92, G54, 55 …, G43, etc. and M-codes, ie. M98, M99, , etc.
In general, the change of tools (spindles) execute commands M6Ti for i = 1, 2, 3. That’s all … :).
You put three tools, you measure it, you measure the material to zero and start the program.
The program generating anything like .: HSM SimplyCam, etc. At the end should look like this:
M6T1
program1
M6T2
program2
M6T3
Program3
M30
