Gopro quick release mount for bike 32mm tube and quick release plate for Lupine

3D Printing
,
1

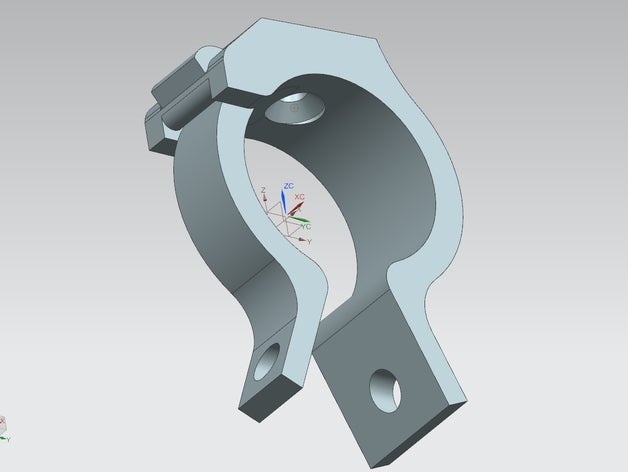

Gopro quick release mount for bike 32mm tube and quick release plate for Lupine Piko TL flashlight

d0a49f559e82b4819c3971cde0eb212a.jpeg1520×2688 1.18 MB

40bd7bc0881547e7dc1f4fb9b2bbb219.jpeg1520×2688 1.29 MB

9f91cce71689301656036f14b75f54ac.jpeg1520×2688 1.02 MB

6454bd762c8c9fe2cb6d5209f420aa14.jpeg1520×2688 1020 KB

58a5287b40818abaeb75a4be3e24bf55.jpeg1520×2688 702 KB

a621e10879fa8e67f97bc8e4d46a0b5e.jpeg2688×1520 414 KB

2

if anyone want the parts files (NX) or STEP files… i will be putting it on thingiverse soon. just some tweaks and testing…

3

Where did you get the flashlight and I would be interested in the files. I 3D printed a extended bracket for my garmin edge 500

4

got the flashlight at a Norwegian WEBshop
http://www.dsgshop.no/forside/Lommelykter/Lupine/Piko-TL-Max-lommelykt-Lupine-2013-102218-p0000002302.aspx
it is a Germany company. http://lupine.de/eng/
i will post a link to the Thingiverse when it is up. still not satisfied with the handle bar design. it works but needs a bit tweak. but then again if i post Parts files and STEP files you should be able to modify it to your needs.

5

I have now added to the thingiverse this mount. including STEP file and DXF file. for your free modification.
