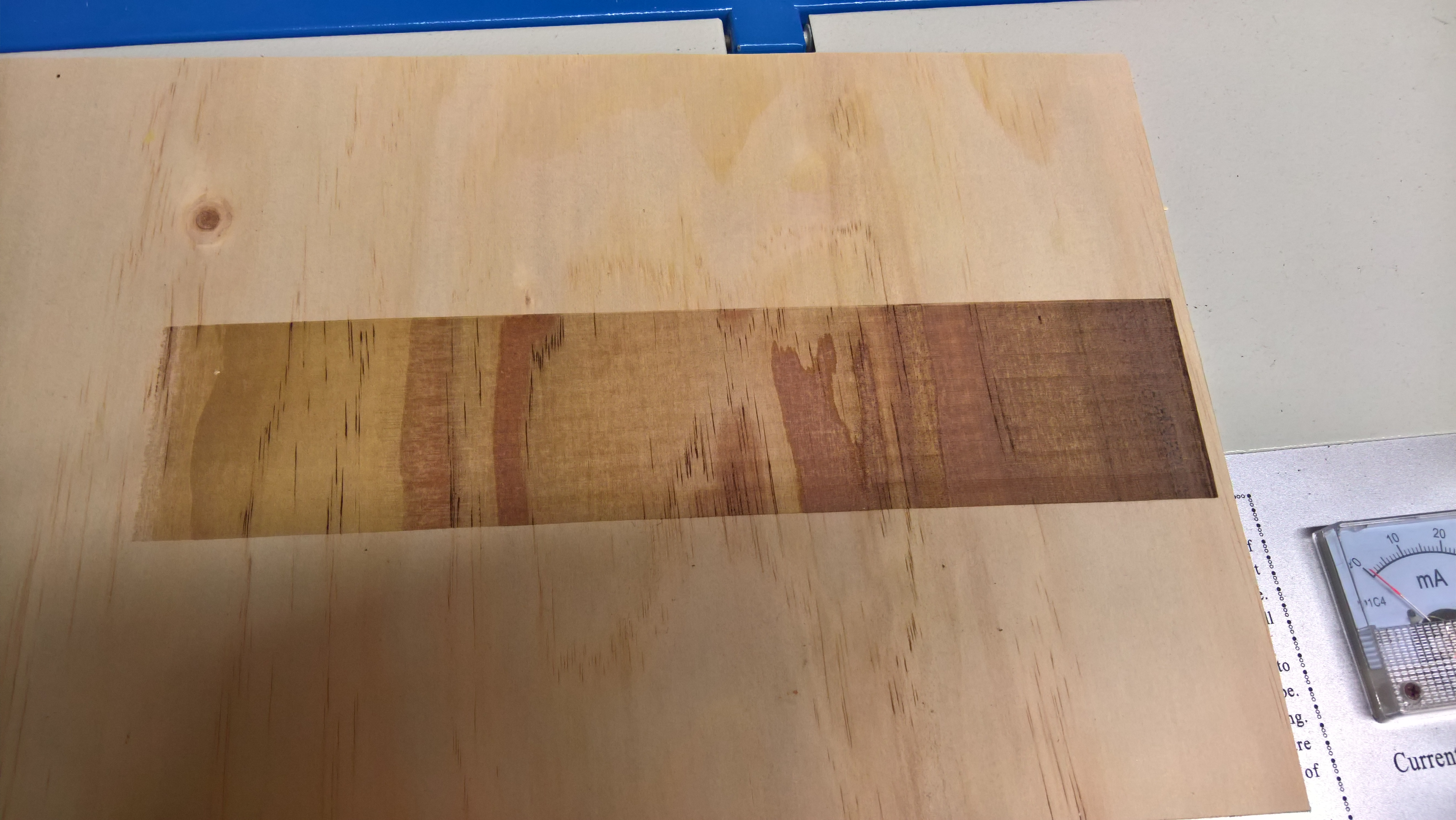

Got LaserWeb3 up & running this evening :slight_smile: PWM engrave test of a gradient filled rectangle.

Originally shared by Yuusuf Sallahuddin (Y.S. Creations)

Finally got around to doing my SmoothieBoard conversion today & had my first go with LaserWeb3.

Looks like PWM is running well :slight_smile: I’m guessing I just have to spend some time now playing around with settings etc to get things to my preferred results per material.

For this I used 10mA (on my pot) & I set 150mm/s for the black & white feed rates & 50mm/s for the XY move speed (not sure if that really affects the engrave or just the blank moving spots).

10a2d1984112b06851a16d0406fb7c65.jpeg5344×3008 3.48 MB

ebbd5ee05355027bdc3e303a1e1e7ba3.jpeg5344×3008 2.97 MB

7767b47ff8fe46be042a057fddb448e2.jpeg5344×3008 3.02 MB

2

+Peter van der Walt I saw the other option for XY speeds though, that is what I set to 50mm/s. Is that just for standard moves when the laser isn’t firing?

3

+Peter van der Walt I believe Master branch.

Thanks, I’ll check that post.

edit: very useful that post & link to the MrBeam info.

I’ll probably spend the next week testing different materials before I get into actually doing any projects.

4

+Peter van der Walt Oh, okay :slight_smile: I was wondering what it did haha. Thanks Peter.

I’ll get the hang of it the more I play with it. I’m happy to be joining the fun & hopefully more able to assist with testing & the likes now.
