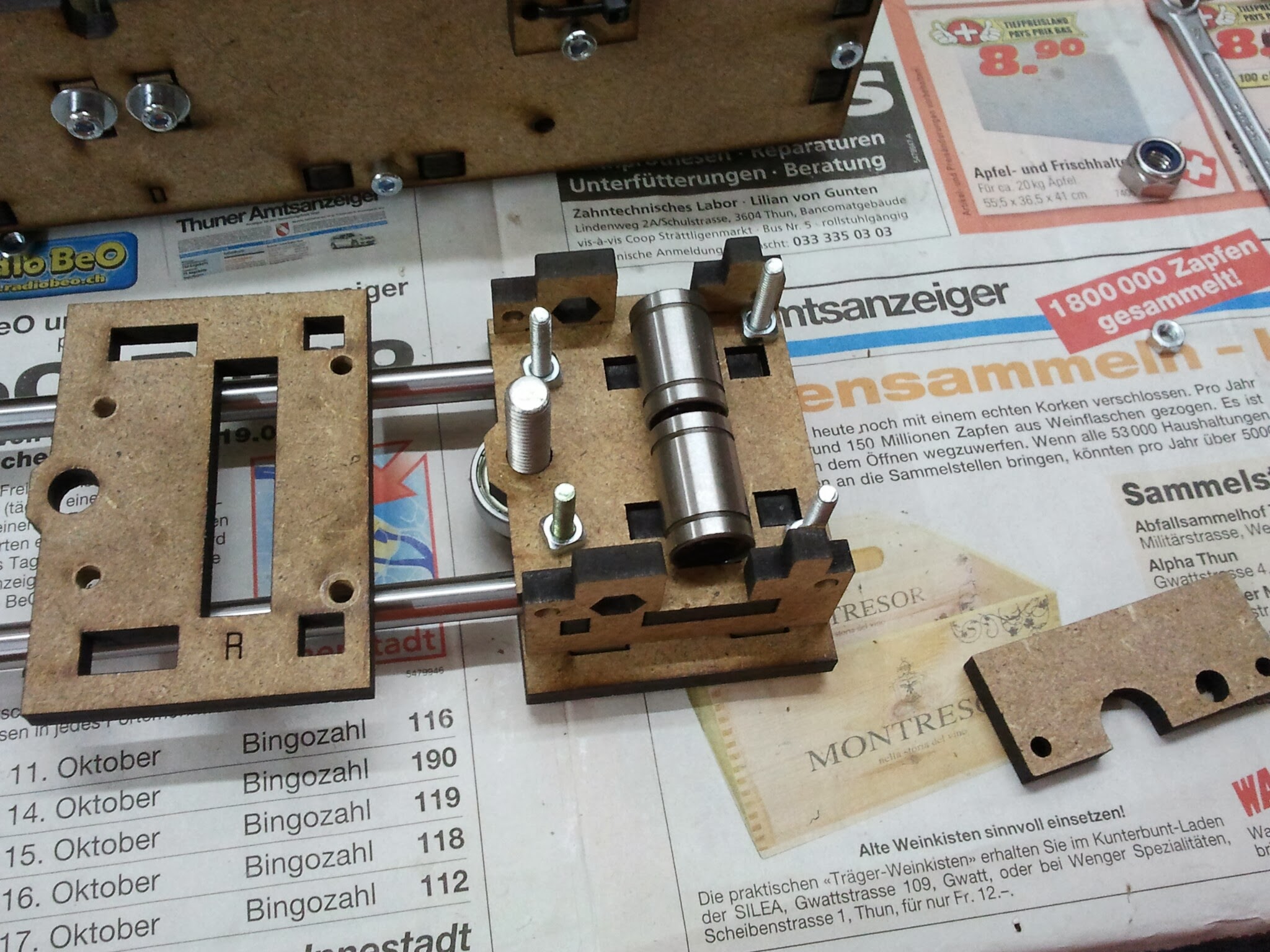

Graber i3 Day 3: Assembling the x-carriage

  • Is this correct?
  • Look also at the part with the “V”. What is it for?
  • How is the leadscrew nut mounted? (M5, not shown in the pics)

Appreciate any advice :wink:

950e79315e577f00a66034d616942e60.jpeg2048×1536 489 KB

2b9e918e5c2ebe1b618b70fa365b8265.jpeg2048×1536 427 KB

a29ac0a0a8636cfcbc31e8aefd3e2001.jpeg2048×1536 326 KB

4a622f97649d605693c468b524e3d00a.jpeg1536×2048 296 KB

2

I’d guess that the “V” part is your groove mount, to hold your extruder. I’ve not built an i3 so take that with a grain of salt.

3

Yep it’s right! :slight_smile:
