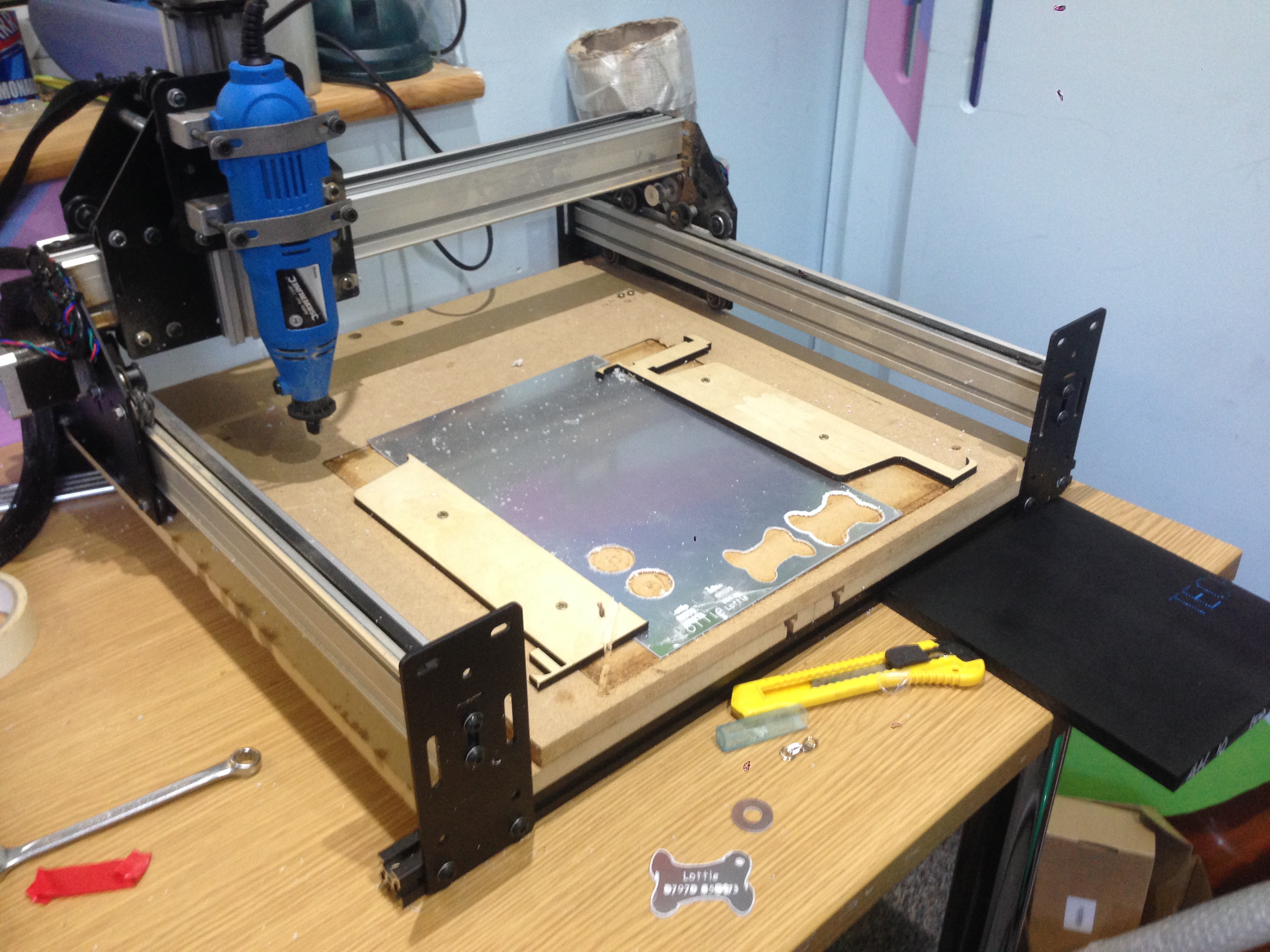

Had my first real test on the cnc. One dog tag later and a circle, just to find slight inaccuracies :slight_smile:
So now for the runout, square circle diamond test. Then to build a box for the arduino and shield.

c014dfe1bb1831a323de52a296b39b7e.jpeg3264×2448 2.15 MB

30febe651aead7a8a5d236ea2df613ab.jpeg3264×2448 2.3 MB

2

Congrats! Looks good!

3

What was the problem you found as to why you were not getting a circle initially, but getting a 4 point star?

4

In his previous post he suggested the issue was makercam was exporting too many decimal places.

5

Yep. If you export g-code with Makercam set to cm’s the g-code has many decimal places. If set to inch’s only 3 or 4 dp’s.

6

However now Inkscape exports dxf as R14 and CamBam only imports upto version 2000. Two steps forward one back!

7

Great!

8

Good job, your machine looks great. Very clean assembly.

9

The diamond/square/circle test file is now inside ChiliPeppr by default to help folks who want to use it to calibrate. It’s under the drag/drop pulldown menu in upper left corner.
