Has anyone had any contact with @Scott_Marshall in the last couple of weeks? I’m still trying to get the limit switch function of my brand new ACR board working and I suspect it’s got a solder bridge somewhere, but I have been unable to reach Scott via email or phone for over a week and don’t know if he’s out due to his health issues.
The problem is as follows:
I’ve confirmed that both homing switches are normally closed. The behavior I’m seeing is that Y homing always works as expected, however X homing only works when the Y homing switch is NOT triggered. I confirmed this electrically - the Y homing output on the ACR is low when the Y is not triggered and high (+5V) when triggered. But here’s where it gets weird - the X homing output on the ACR is low when neither limit switch is triggered, but high if EITHER X or Y homing switch is triggered. I’m wondering if there is a cross connection on the ACR board, but don’t know where to look.
Mechanical switches. It’s been a few days so I don’t remember exactly, but I checked both switches with a meter and they seemed to work fine. I’ve got to go back and see if the 5V limit outputs on the ACR work differently than the 3.3V set that come off the level shifters. I’m trying to figure out where a short could possibly be for Y to affect X, but for X not to affect Y.

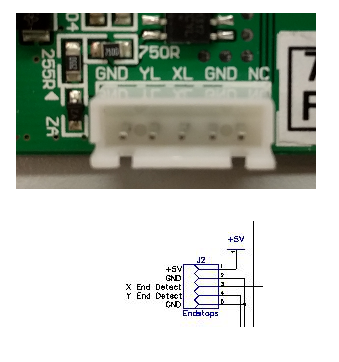

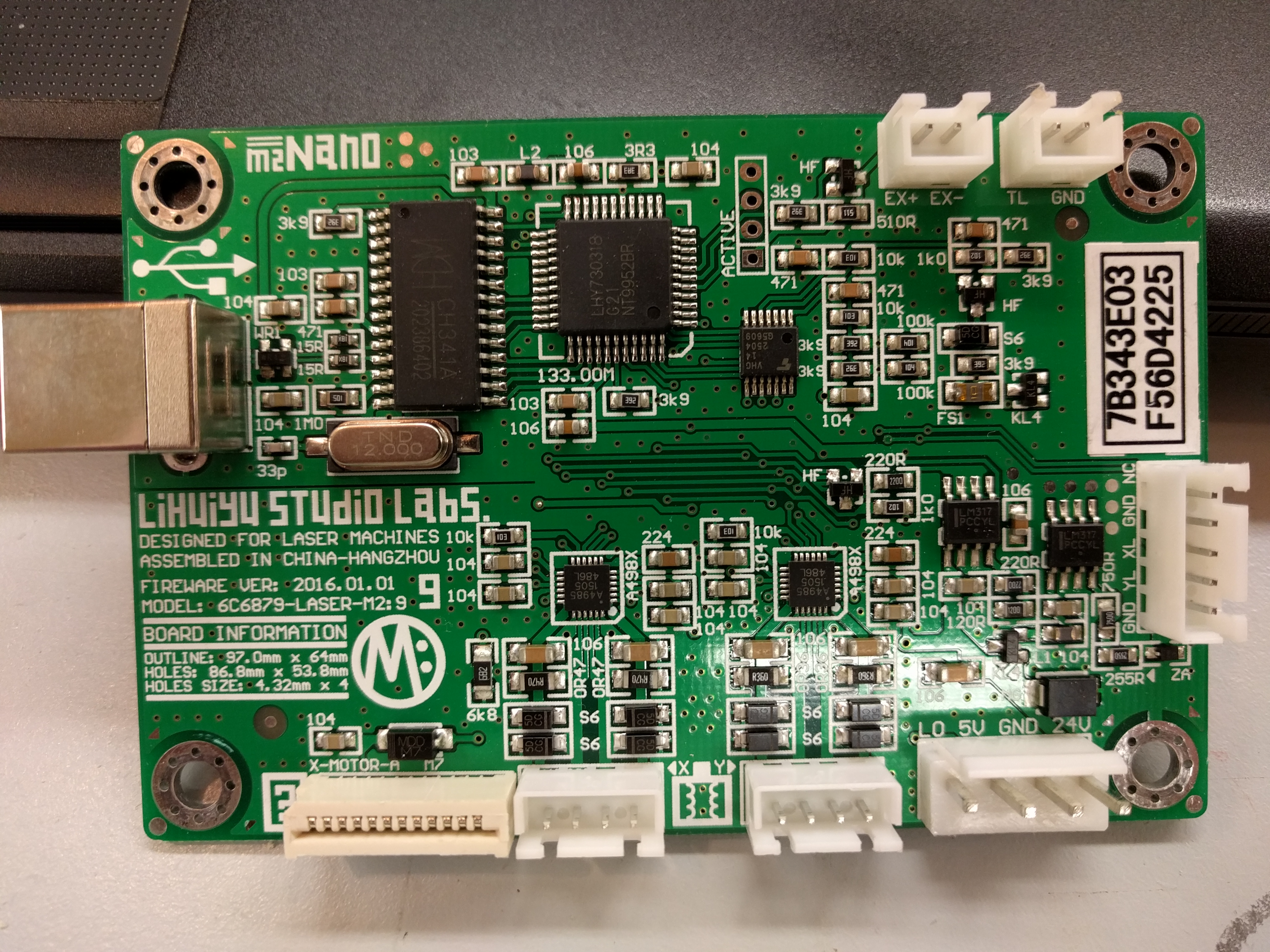

Hooray, I figured it out! As I said in my OP I knew it wasn’t a firmware config or homing command issue because I had verified the problem electrically with the machine off - just checking continuity with a meter. What I discovered was that the ACR might be plug and play for some version of the M2, but not mine - the pinouts on the limit connector are different. Here’s a picture of both. The way the plug connected to the ACR board had the common wire from both switches plugged into Y instead of GND. I rearranged the pins in the connector and now the machine homes correctly.
