Here’s what I’ve been doing with my laser cutter:

  • I’ve added internal water cooling loop.
  • Replaced the exhaust fan with a better one, and routed the tubing to the window.

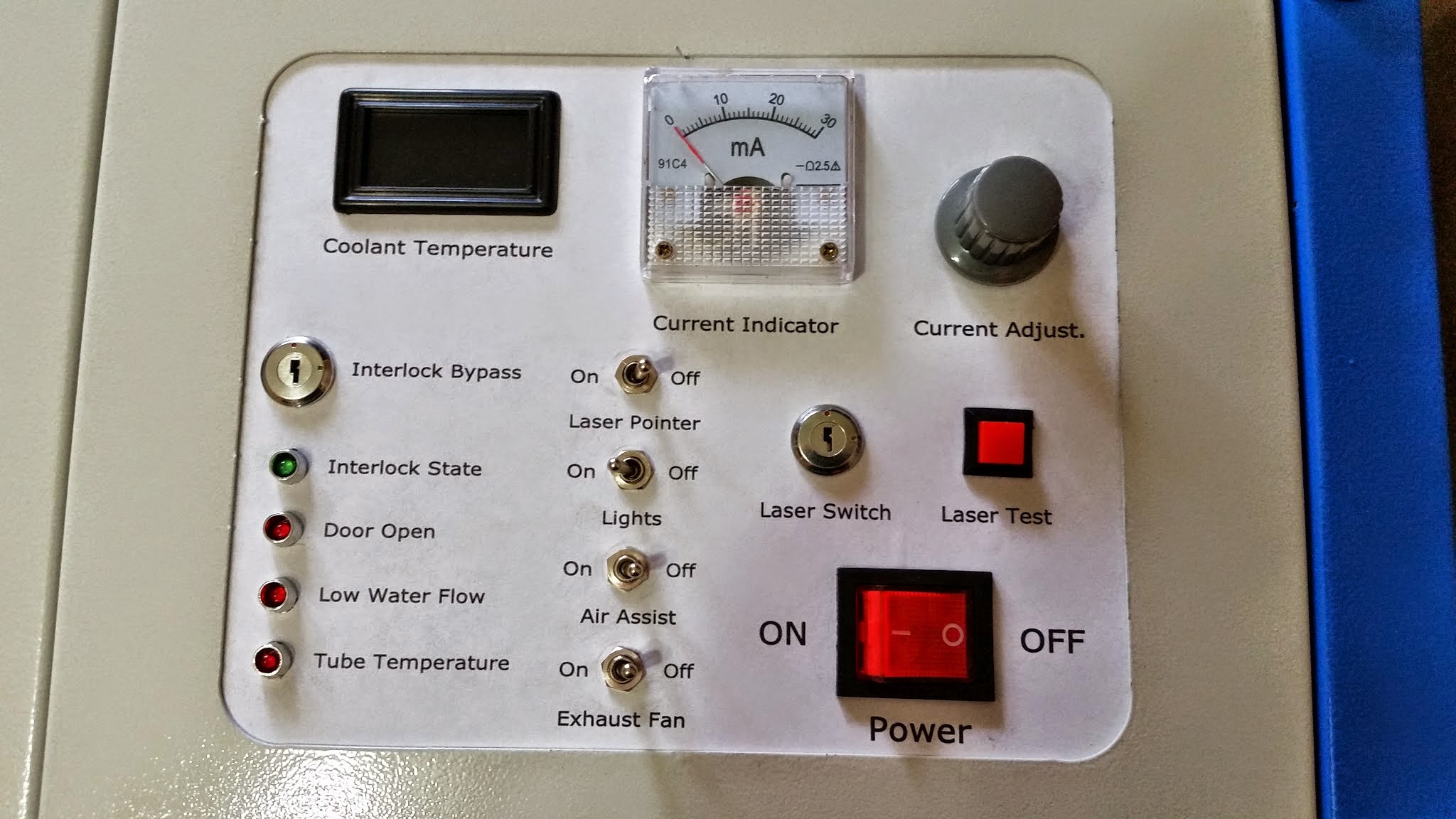

  • Designed new control panel for use with a Interlock System I am designing. (I’m waiting on the PCB to arrive.)
  • Added Water Flow Sensor, Coolant & Tube Temp Sensors, Water Reservoir, 120mm Radiator, and lots more to come!

Let me know what you think, and if you suggest any changed or additions.

6b7de6b944191dc4b836bb24976eab68.jpeg2048×1152 282 KB

7381c8fa5dc124beb457d1e28c75682f.jpeg2048×1152 379 KB

6ded2710deab154244b3d72ec174efa9.jpeg1152×2048 362 KB

07cc33594a213e9a5a7cf867cf32e4cb.jpeg2048×1152 363 KB

11226a4b27910f3ef41963c59f65a272.jpeg2048×1152 237 KB

6b8bdeb9eb37fd075f0fac64e1d6c923.jpeg1920×1080 409 KB

3b935ddcd9c0f3170338610ca037e517.jpeg1920×1080 272 KB

f92fd72f6cbfe227eeb7fce16585f1e4.jpeg2048×1152 340 KB

b7f0fa4de19992a28796b56dbf7f1e6c.jpeg1152×2048 290 KB

9d65602d4f3144818734b97c390ea655.jpeg1152×2048 260 KB

b932d3301ecb65f6775003b0c6501d9e.jpeg1152×2048 298 KB

10c3516436f5dd933706c480840a7e94.jpeg2048×1152 265 KB

2

Way ahead of me. I am in the process of realigning everything inside the box. Most of the changes are way above what I know how to do. I still need to figure out how to add a laser pointer :slight_smile: I need one of those how to guides to do most of that. Great job though. Those are good changes. And all ones I should make too.

3

Yeah, I’m just good with electronics. I can do PCB design and stuff too, plus I have a 3D Printer, which I used to make some parts for the laser cutter.

4

Nice job Sean I have been an industrial electrician all my life and have had thoughts about using a Siemens logo on mine. I am interested in what flow switch your using for water and have you got one on extract air flow?.

5

Thanks Bill! I am using this flow sensor:
http://www.amazon.com/dp/B00HG7G2GG/

And no, I don’t have one installed for the exhaust air flow. I didn’t really see the need for one, since the exhaust fan works exceptionally well! Plus I can hear it when it’s running,

What exactly is a Siemens Logo? I looked it up quickly, but still not sure what it is used for.

6

Hi Sean it has inputs and outputs then you just drag items onto the work area say a timer and just click on inputs and outputs to set up link wires like input 1 goes to outpt 1 but set a delay timer so when input 1 goes off the timer would keep output 1 on for say10 minutes like a bathroom fan and light and you just click on the timer and panel opens to input your delay but lots of items inbuilt so you dont have to buy clocks timers and so on and no wiring of clocks timers relays and so on as it is all done internally aand you save your project software to program again anytime and also alter all the way your circuit works without adding anymore hardware or wiring. We have our ouside lighting working on one. Hope you understand my explanation they are a nice little unit.

7

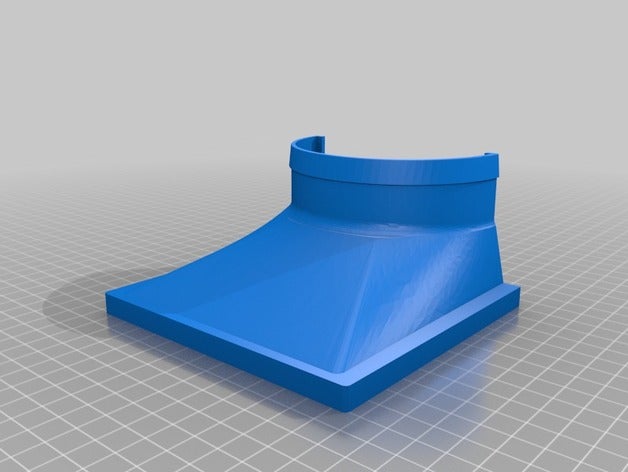

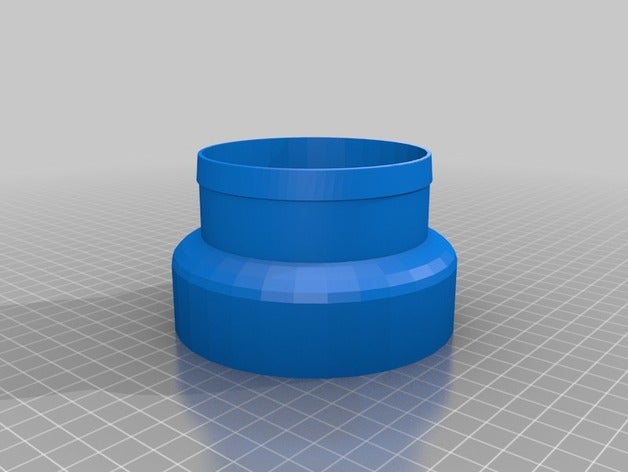

Nice mod like too much your new smoke collector. you Can share stl without we redisgn it?
thx

8

Sure, Here’s the links:
