Hey guys and gals! Does anyone have any good resources regarding rotary switches and how to select different animations with each turn?
Are you only asking about the code side of using a rotary encoder or the hardware wiring part also?
Or are you indeed asking about rotary switches? (Different from rotary encoders!)
@marmil more on the code side. I want to learn how to set up separate events with each turn of a rotary switch, not encoder. I’ve also started using button because it seems easier to find information on.
@Michel_M thank you for this!
Here’s an idea that could work with a rotary switch instead of individual buttons.
Code checks the resistance value (similar to checking the position of a potentiometer) and then feeds that value to a series of if/else checks to determine which switch position is selected, which would then set a switch case choice.
How many positions does your rotary switch have? If it’s not too many then the above might be over kill and you can just wire each switch position to a separate input pin if you have enough.

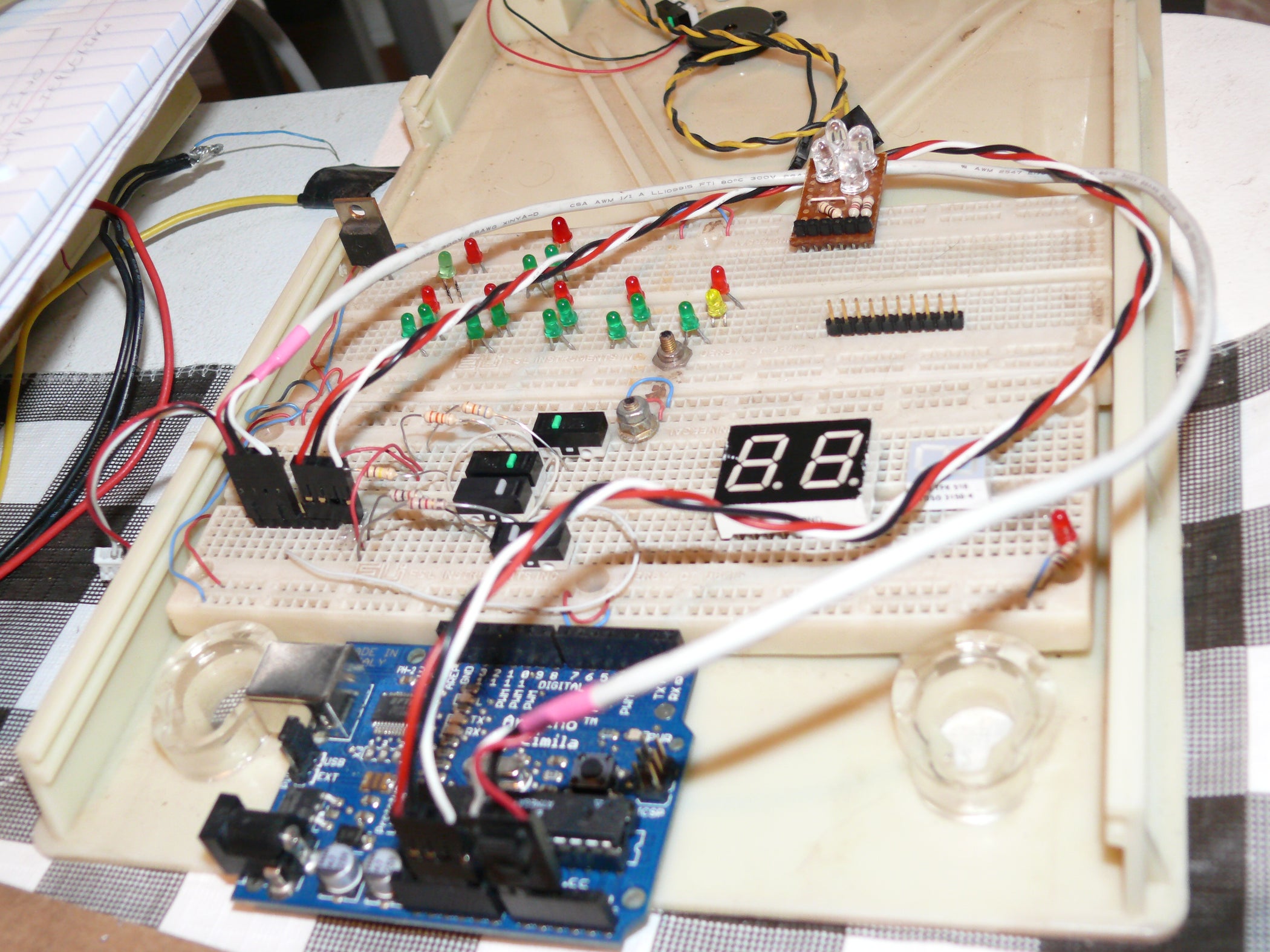

I’ve written a sketch for a rotary encoder. Only a change will trigger a new event.
Maybe that’s what you are looking for.
Cheers!
/*
Read regular Rotary Encoder
This sketch can also be used for motors with Hall sensors
Interrupts:
Board int.0 int.1 int.2 int.3 int.4 int.5
Uno, Ethernet 2 3
Mega2560 2 3 21 20 19 18
For two Hall Sensors / two Motors / two Rotary Encoders a Mega2560 or Teensy 3.1 is needed!
*/
#define encoder0PinA_M1 2 // Hall sensor in motor 1
#define encoder0PinB_M1 3
volatile int encoder0Pos_M1 = 0; // also negative values
byte count = 0;
byte lastCount = 0;
void setup () {
pinMode(encoder0PinA_M1, INPUT);
pinMode(encoder0PinB_M1, INPUT);
digitalWrite(encoder0PinA_M1, HIGH); // use internal pull-ups
digitalWrite(encoder0PinB_M1, HIGH);
attachInterrupt(1, doEncoderA_M1, CHANGE); // encoder pin on interrupt 0 (pin 2)
attachInterrupt(0, doEncoderB_M1, CHANGE); // encoder pin on interrupt 1 (pin 3)
Serial.begin(115200);
}
void loop() {
// set the upper and lower limits for counting
if (encoder0Pos_M1 > 10) // only one command in ‘if’ : no brackets needed
encoder0Pos_M1 = 10;
if (encoder0Pos_M1 < 0)
encoder0Pos_M1 = 0;
count = encoder0Pos_M1;
bool trigger = 0;
if (count != lastCount) trigger = 1; // if it's changed, trigger the different events
switch (count) {
case 0:
if (trigger) {
Serial.println("Zero");
// put here your light effect
}
break;
case 1:
if (trigger) {
Serial.println("ONE");
}
break;
case 2:
if (trigger) {
Serial.println("TWO");
}
break;
case 3:
if (trigger) {
Serial.println("THREE");
}
break;
case 4:
if (trigger) {
Serial.println("FOUR");
}
break;
case 5:
if (trigger) {
Serial.println("FIVE");
}
break;
case 6:
if (trigger) {
Serial.println("Six");
}
break;
case 7:
if (trigger) {
Serial.println("SEVEN");
}
break;
case 8:
if (trigger) {
Serial.println("EIGHT");
}
break;
case 9:
if (trigger) {
Serial.println("NINE");
}
break;
case 10:
if (trigger) {
Serial.println("TEN");
}
break;
}
lastCount = count; // reset the counter
trigger = 0; // and re-arm the trigger
delay(30);
}
//-----------------------------------------------------------------------------------------------------
void doEncoderA_M1(){
if (digitalRead(encoder0PinA_M1) == HIGH) { // look for a low-to-high on channel A
if (digitalRead(encoder0PinB_M1) == LOW) { // check channel B to see which way encoder is turning
encoder0Pos_M1 = encoder0Pos_M1 + 1; } // CW
else {
encoder0Pos_M1 = encoder0Pos_M1 - 1; } // CCW
}
else { // must be a high-to-low edge on channel A
if (digitalRead(encoder0PinB_M1) == HIGH) { // check channel B to see which way encoder is turning
encoder0Pos_M1 = encoder0Pos_M1 + 1; } // CW
else {
encoder0Pos_M1 = encoder0Pos_M1 - 1; } // CCW
}
}
void doEncoderB_M1(){
if (digitalRead(encoder0PinB_M1) == HIGH) { // look for a low-to-high on channel B
if (digitalRead(encoder0PinA_M1) == HIGH) { // check channel A to see which way encoder is turning
encoder0Pos_M1 = encoder0Pos_M1 + 1; } // CW
else {
encoder0Pos_M1 = encoder0Pos_M1 - 1; } // CCW
}
else { // Look for a high-to-low on channel B
if (digitalRead(encoder0PinA_M1) == LOW) { // check channel B to see which way encoder is turning
encoder0Pos_M1 = encoder0Pos_M1 + 1; } // CW
else {
encoder0Pos_M1 = encoder0Pos_M1 - 1; } // CCW
}
}
//-------------------------------------------------------------------------------------------------------
