Jim_Stone · September 16, 2016, 5:51pm

Hey guys!

Would anyone here be able to assist in making a mount for my BLTouch to mount onto my Herculien Carriage? my model skills are not good enough yet to model onto things yet

It will have to mount to the existing structure. and not be a whole new carriage. ( i cant remove my carriage without fudging things USE THE MISUMI RODS GUYS! dont use drill rod!)

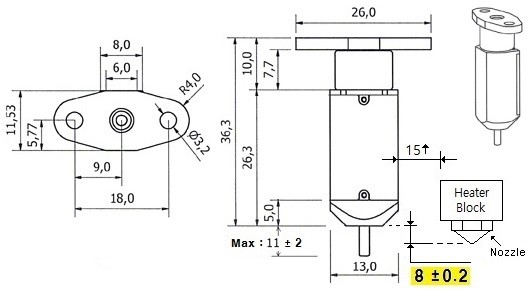

attached is CAD Diagram of the BLTouch with all of its dimensions
as well as a GRABCAD Link
https://grabcad.com/library/bltouch-sensor-for-3d-printer-1

as for the carriage. i am using “Double Carriage_E3DV6” from the herculien GITHub

i am currently only using the Left most hotend spot. the one that would be closest to 0,0 when home

Any and all help appreciated!

Jim_Stone · September 16, 2016, 5:53pm

@Mutley3D @Eclsnowman @Zane_Baird

Eclsnowman · September 16, 2016, 6:54pm

I’ll see what I can come up with. But give me a week or so I’m pretty busy right now

Jim_Stone · September 16, 2016, 8:48pm

Thank you!

Eclsnowman · September 16, 2016, 9:01pm

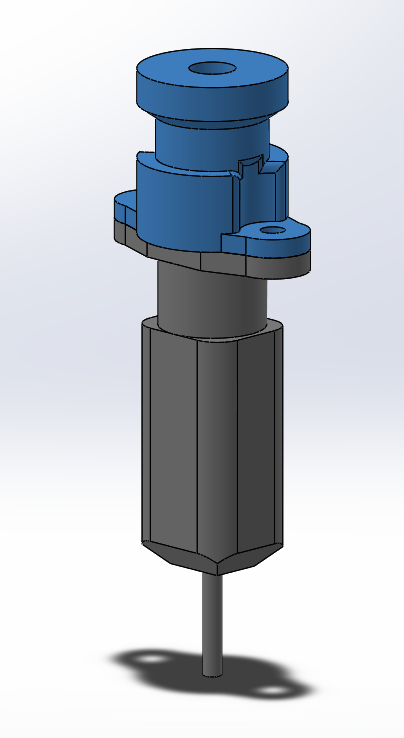

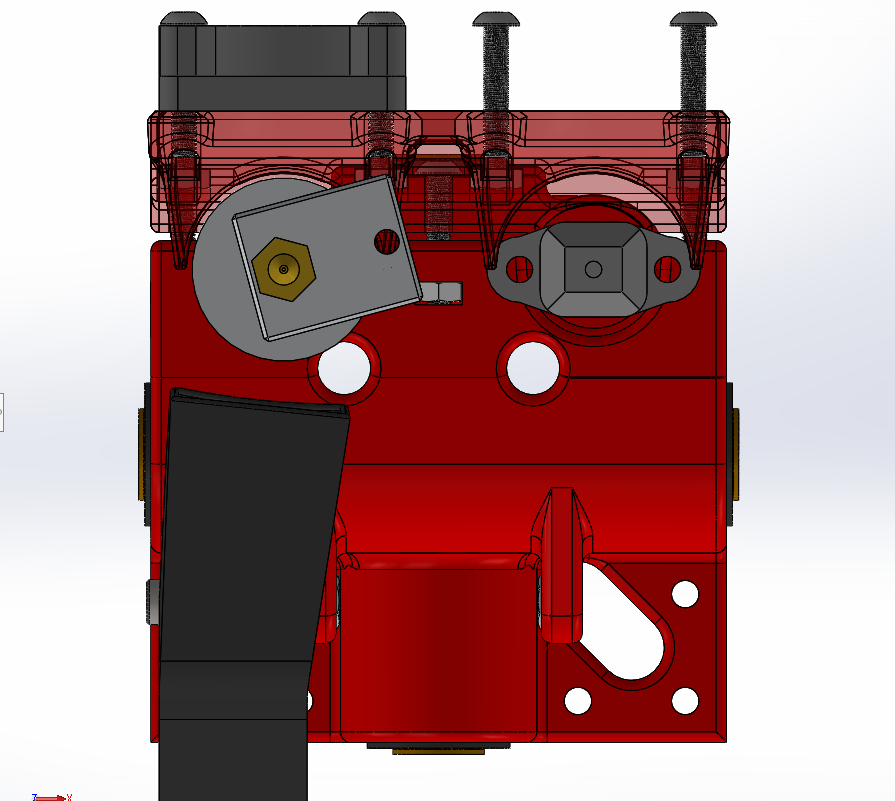

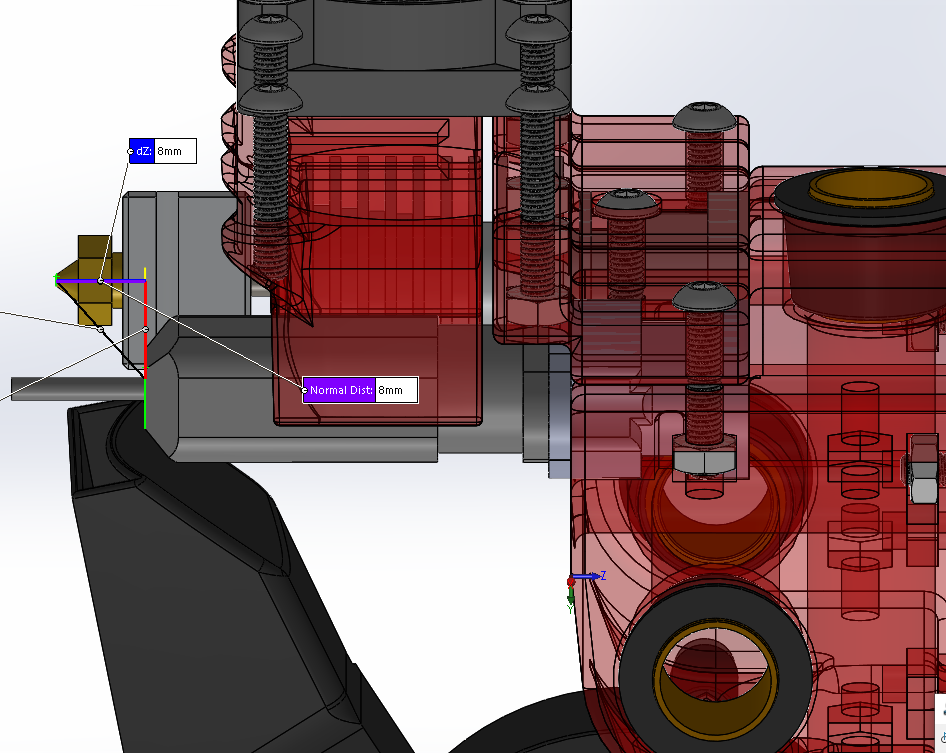

@Jim_Stone Something like this work? The problem is there is only 2mm below the housing to the start of the BLTouch probe. So threading in 3mm button screws from the bottom don’t leach much meat to thread. You could screw it, but I might add super glue to be safe between the adapter and the BLTouch along the flange.

https://drive.google.com/drive/folders/0B1rU7sHY9d8qR0JWajYxMHRaRlk?usp=sharing
