Hi all! I have my Smoothieboard hooked up to LaserWeb and I’m having an issue. I’m not sure whether to post it here or the Smoothieware forum but I figured this would be a good place to start!

First of all the smoothieboard is smooth . . . movements seem to not be nearly as jerky and noisy as GRBL. X and Y axis translations are gorgeous! Along with this excellent software it makes my lil ol’ K40 seem pro :slight_smile:

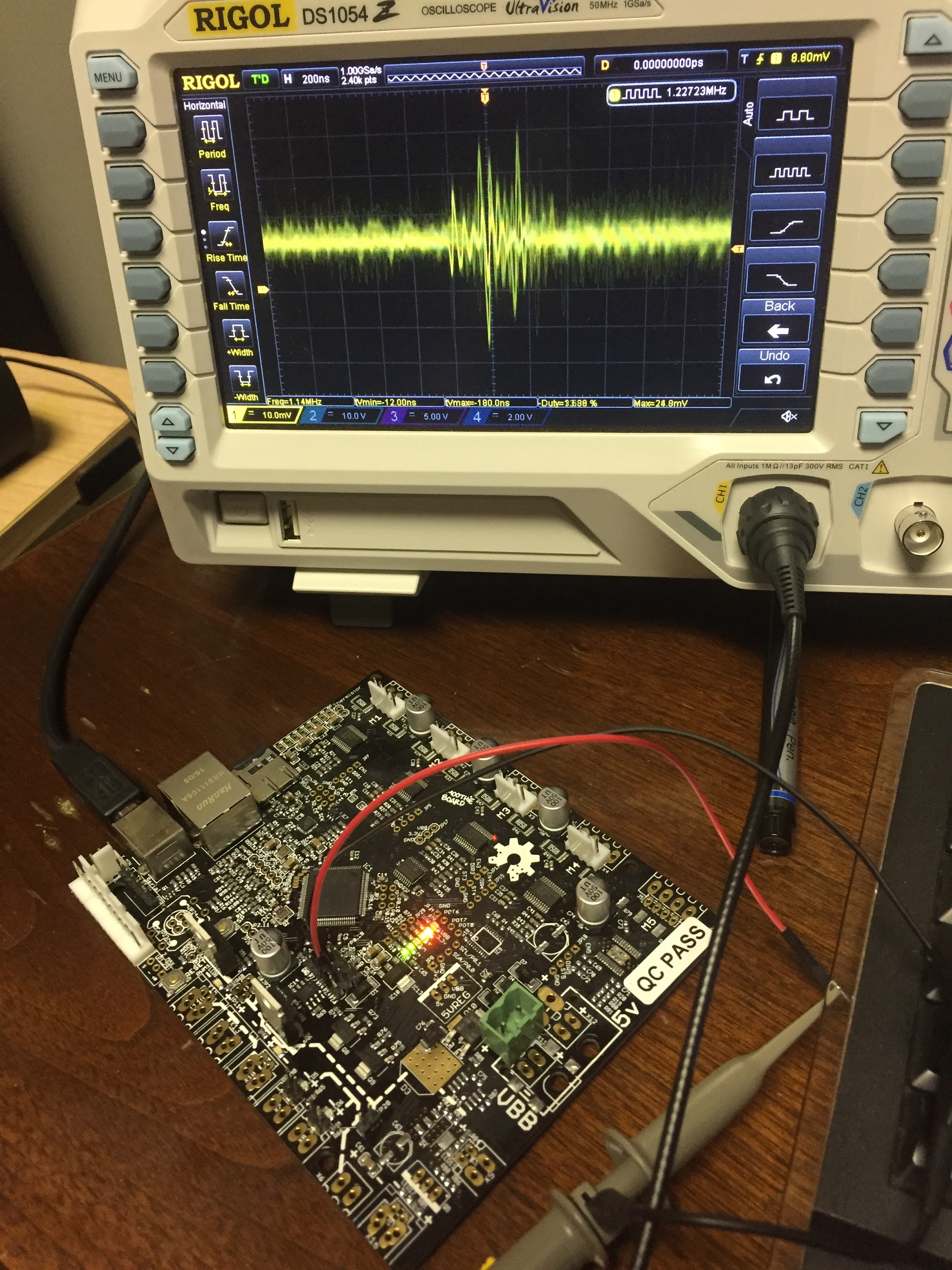

But the PWM isn’t working at all in LaserWeb. I’ve included my config file for perusal - but the laser portion is set to “true” and I’ve also installed a level convertor to kick the PWM signal up to 5V. When I set the Smoothie on my bench and hook it up to my scope I see zero PWM action on any pin that i specify in the config file. I’m down to randomly trying pins in the config file . . . still no joy

I’ve reinstalled LaserWeb AND the firmware on the Smoothie. I’m running the master branch of both LaserWeb (Build version: master-27197b7, Build date: Jul 4 2016 04:10:42, MCU: LPC1769, System Clock: 120MHz) and Smoothie firmware.

Does anyone have a few ideas to get me started? I’m pulling a blank here after 3 days of head scratching . . .

395e8f000eb2e6386cef78e1340708fb.jpeg1920×2560 881 KB

2

And here’s the config file part for LaserWeb:

#laser_module_pin 2.4! # this pin will be PWMed to control the laser. Only P2.0 - P2.5, P1.18, P1.20, P1.21, P1.23, P1.24, P1.26, P3.25, P3.26
# can be used since laser requires hardware PWM
#laser_module_maximum_power 1.0 # this is the maximum duty cycle that will be applied to the laser
#laser_module_minimum_power 0.0 # This is a value just below the minimum duty cycle that keeps the laser
# active without actually burning.
#laser_module_default_power 0.5 # This is the default laser power that will be used for cuts if a power has not been specified. The value is a scale between
# the maximum and minimum power levels specified above
#laser_module_pwm_period 20 # this sets the pwm frequency as the period in microseconds

3

@Rich_Barlow ​ have you power setting for smoothie into laserweb setting?

4

Oh sweet baby Spagetti Monster . . . I’m an idiot. Three evenings of my life wasted because I’m impatient.

Uncommenting. Blushing.

5

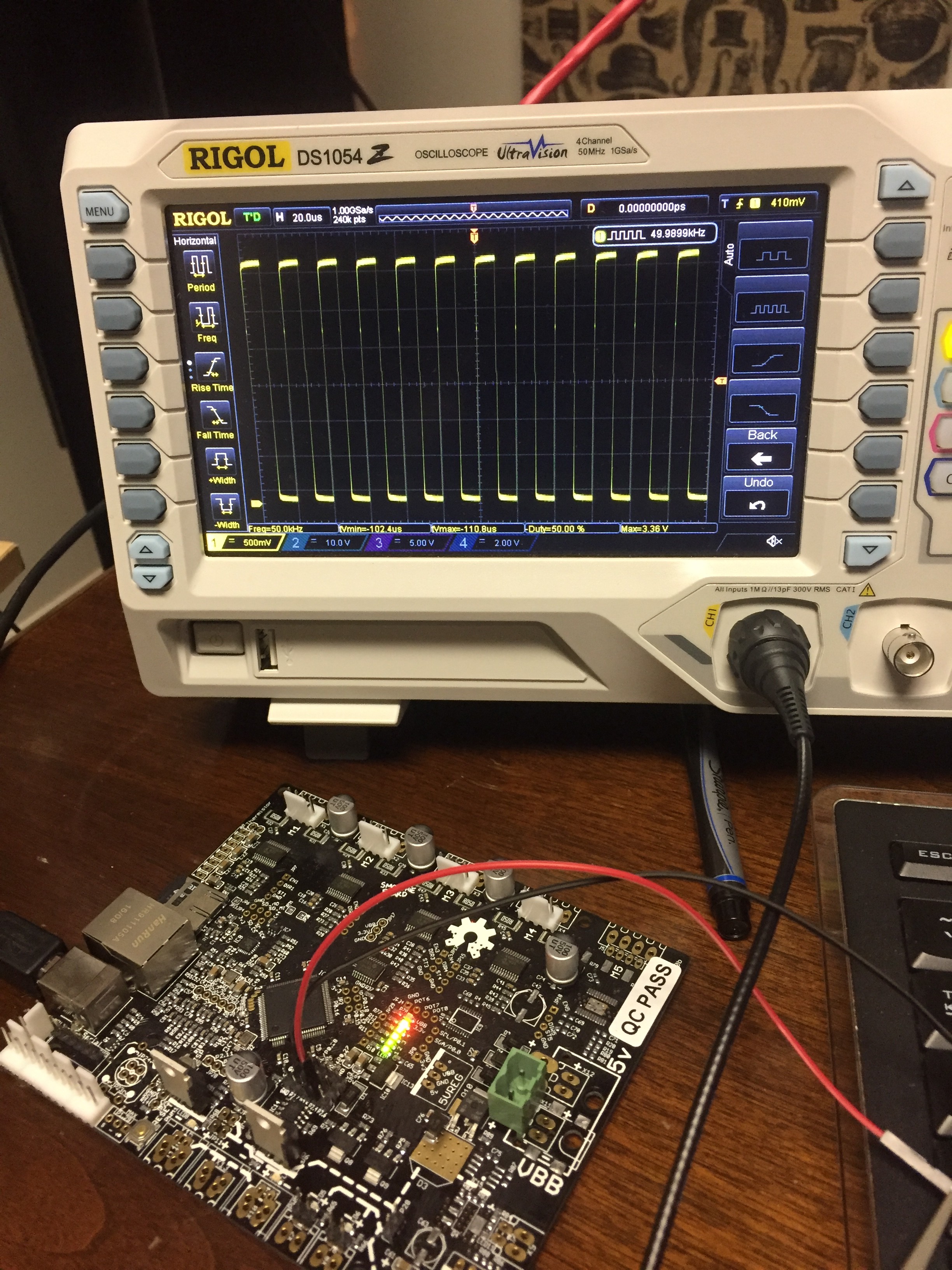

All better now.

e4ec97a2c6eb8d496f72826a72280ee2.jpeg2448×3264 1.65 MB

6

Peter - I missed your earlier post because you’re so darn fast . . . flashing the latest edge as well.

You rock sir!

7

@Rich_Barlow ​ you are going to have to adjust pwm period as well to get good engraves I run mine around 200 micro sec

8

Thank you Alex! Adjusting that as well.

9

Is the k40 a CO2 laser? or diode? If its CO2, the minimum laser power probably needs to be larger than 0.

10

CO2.

11

So he should really be setting a tickle!

12

@Richard_Betel When setting the minimum power, does that mean it will always fire at that for anything under that power level in the PWM? E.g. a white area in a file, will it fire with whatever min power you set?

13

+Peter van der Walt Ah yeah, I will give that a go next week, my garage/laser is all packed up at the moment. Thanks

14

Yep . . . 5% tickle makes my really light areas a bit more definted. great stuff folks!

15

I use laserweb to supply my tickle power based on the type of material used Its as easy as setting laser min power

16

I have found based on how you focus your material tickle power can change. I do some images out of focus on purpose and this changes the amount of power needed to get the same result as an image engraved in focus

17

Glad you got it to work :slight_smile:
