Hi all !
I’m new here, and wanted to show my home made CNC, I hope to learn a lot from here, and help in all I can.
This are the characteristics of this “Low Cost” 3 axis:

Mechanical characteristics:

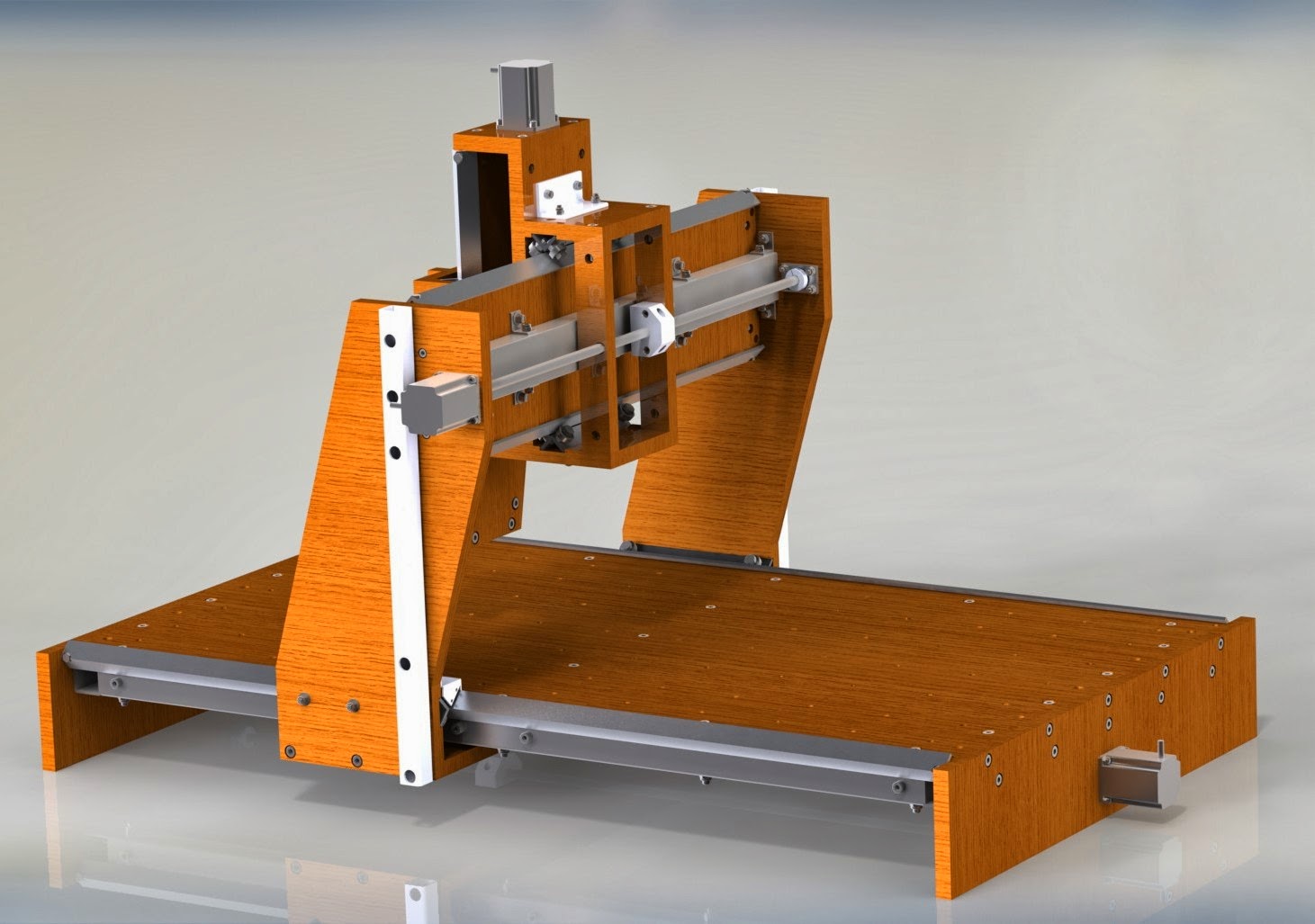

Max working meassures: 1000x500x200 mm
Structure made in MDF boards 19mm thickness, reinforced with square steel tubes
Lineal guide system with “L” profiles and ball bearings (see entry to more details)
trapezoidal spindles M12 3P6
Total dimensions: 1700x630x550
Mill: Kress 1050
Tool handler: Ø10, 8, 6, 3 mm

Electronic characteristics:
Driver TB6560 4 axis
Motor Nema23
Power Supply 24V 15A
Software: LinuxCNC

http://www.o3ozono.com

73509d9422723b51221de741b0d2bfad.jpeg1461×1027 146 KB

46252c144b829f3f66f308b97c1f0ba3.jpeg1572×1027 150 KB

2

Thanks! Sure, I always enjoy to see other CNC homemade, I can learn a lot!

3

Very nice! Looks like it took a good deal of time. Skate bearings and aluminum angle for the linear motion? What did you use for the screws? I’m thinking of building my first machine from reinforced MDF, as well.
