Hi guys ! I have made a drawing of the core xy with belts

[Hussain_Bhavnagarwal (Hussain Bhavnagarwala)]

Hi guys !

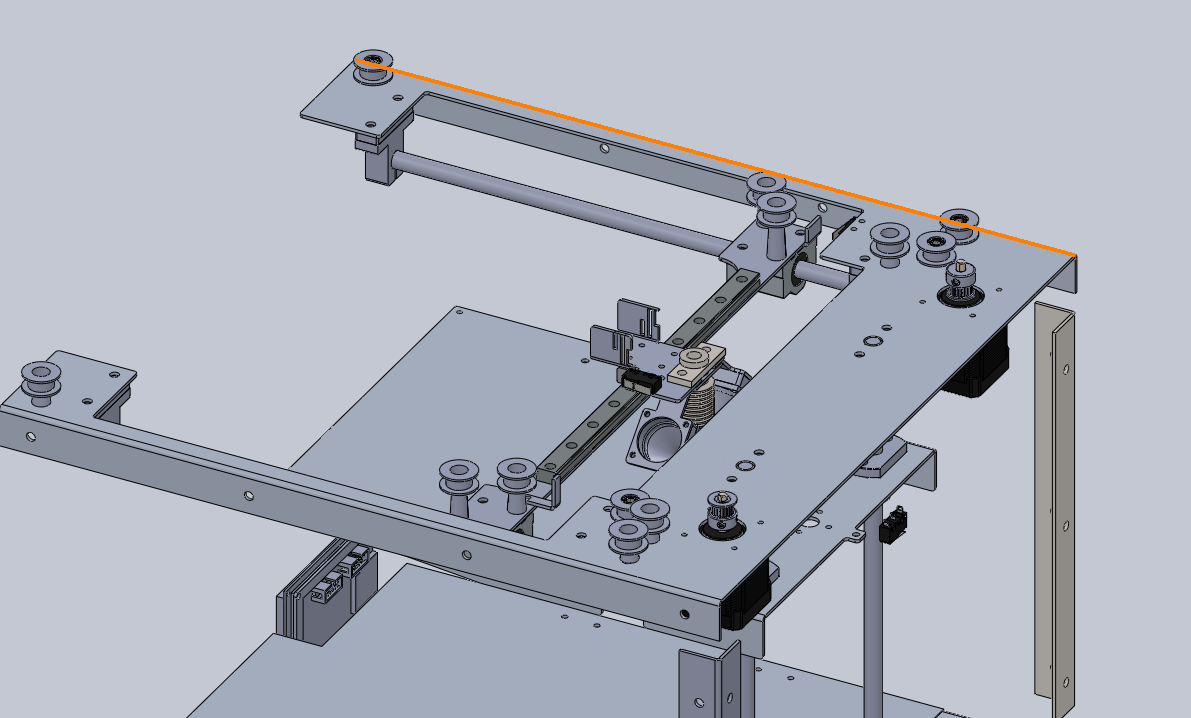

I have made a drawing of the core xy with belts crossing over at the back, do take a look and tell me what you think.

Also wanted to know if there are any better ways of attaching the belts to the extruder mount.Currently I have cut slots onto sheet metal that will be bent.Trying to keep it as compact as possible

All the parts will be laser cut and bent before assembling.

Thanks !!
Hussain.

[Rien_Stouten]

Looks very nice.
I personally do not like the crossed belts, I used this design.
missing/deleted image from Google+

[Ryan_Carlyle]

Belt path isn’t clear from the renders, but it looks pretty good.
