Hi Team R7,

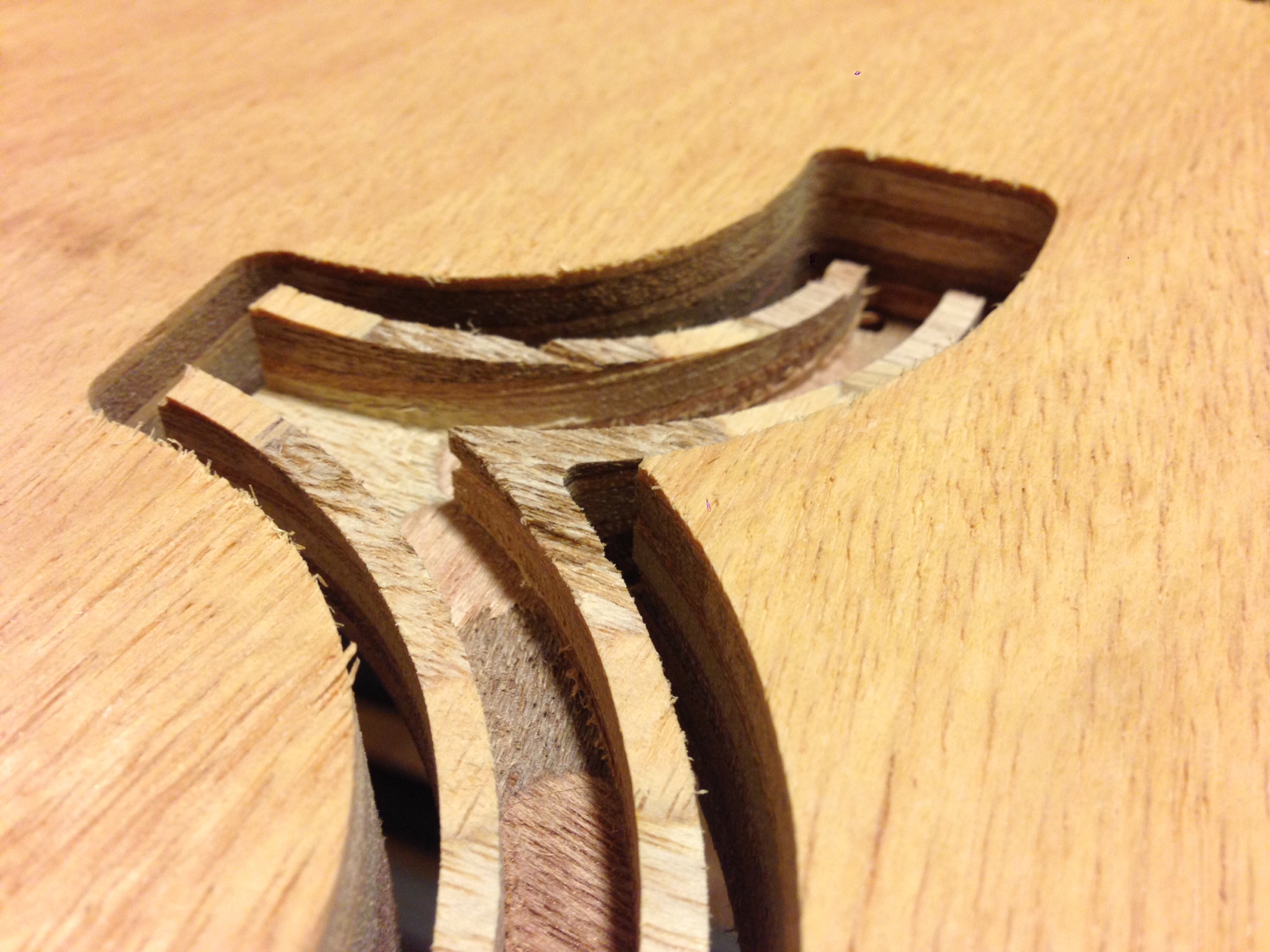

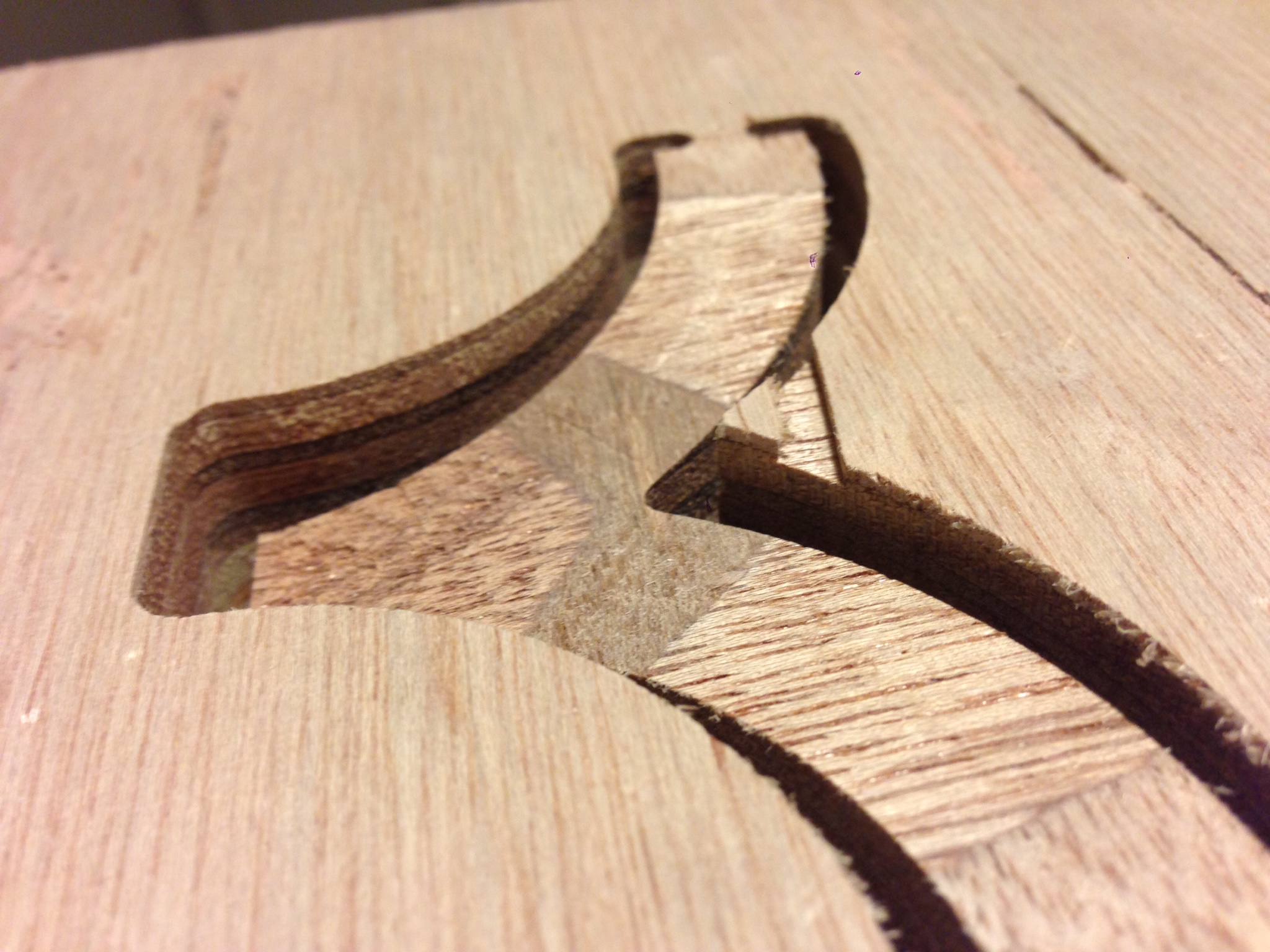

I’ve been doing some 2.5D cutting here and just thought I would share a few images and a video. This is part of a marble track puzzle I’m making.

2

Here are the photos:

0c8bbc3ff27f67da9abb29fc5fbdea6b.jpeg2048×1536 796 KB

3

79a3ecb7eeee38696c020568fcc44dd8.jpeg2048×1536 760 KB

4

e8c15a0c6c9336db291c4b518031e103.jpeg2048×1536 751 KB

5

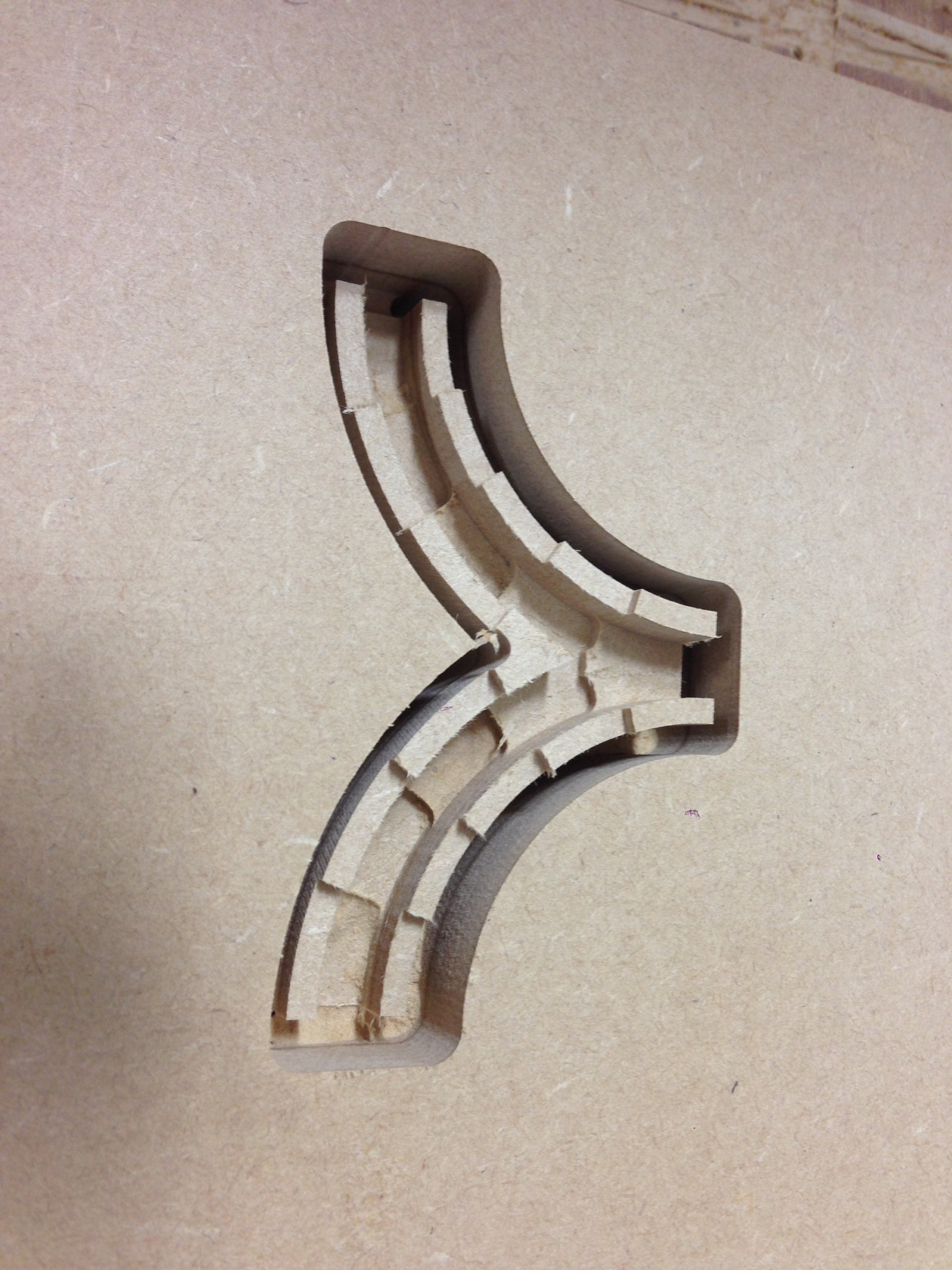

The R7 cut this really nicely using a 4mm flat end compression but. I have since made this out of MDF using the same settings 18,000 rpm @ 3000 mm/min. and it turned out great as well.

988ffa89cfc59d33f2bb1c608e3fbdd8.jpeg1536×2048 834 KB

6

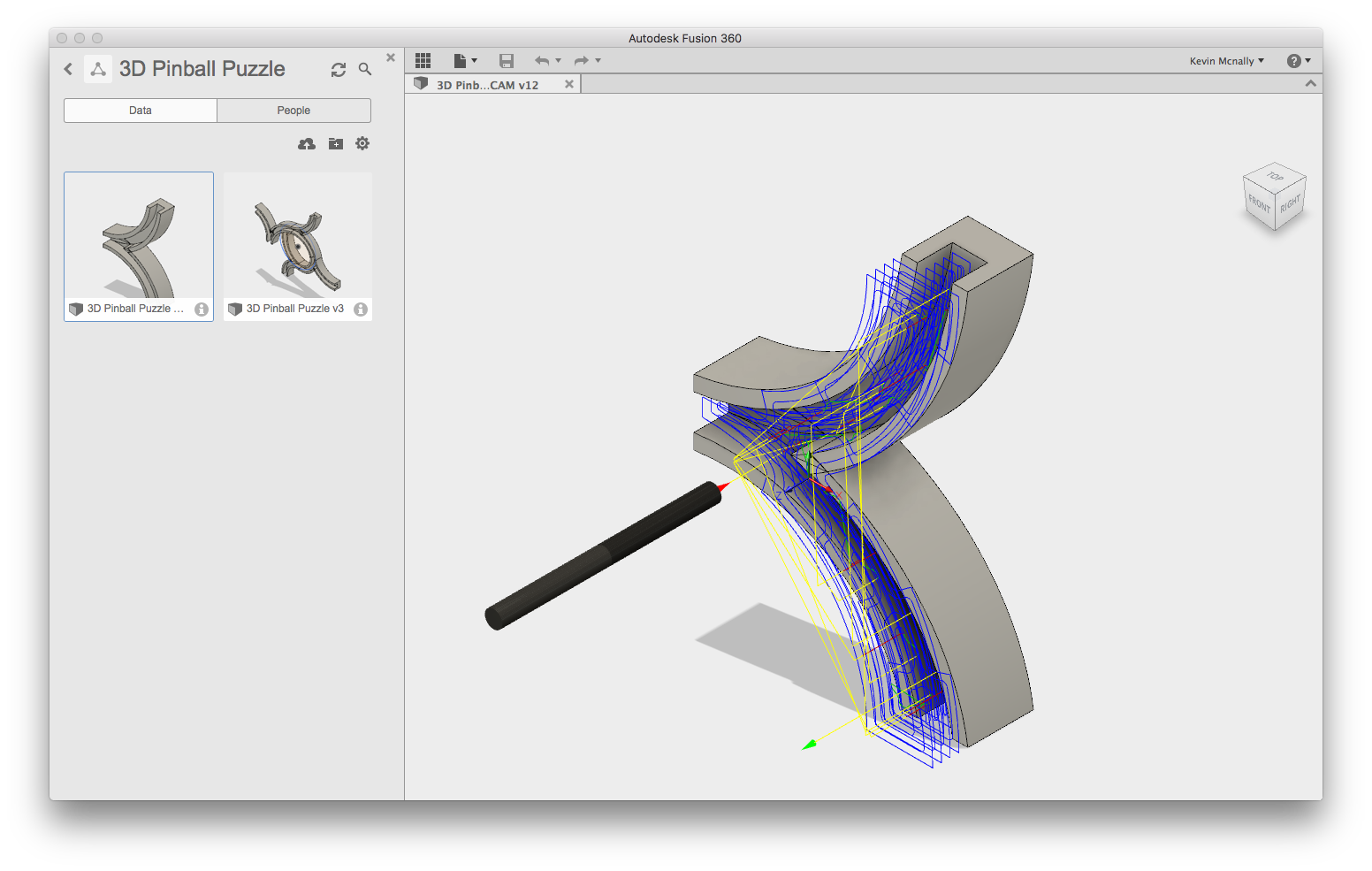

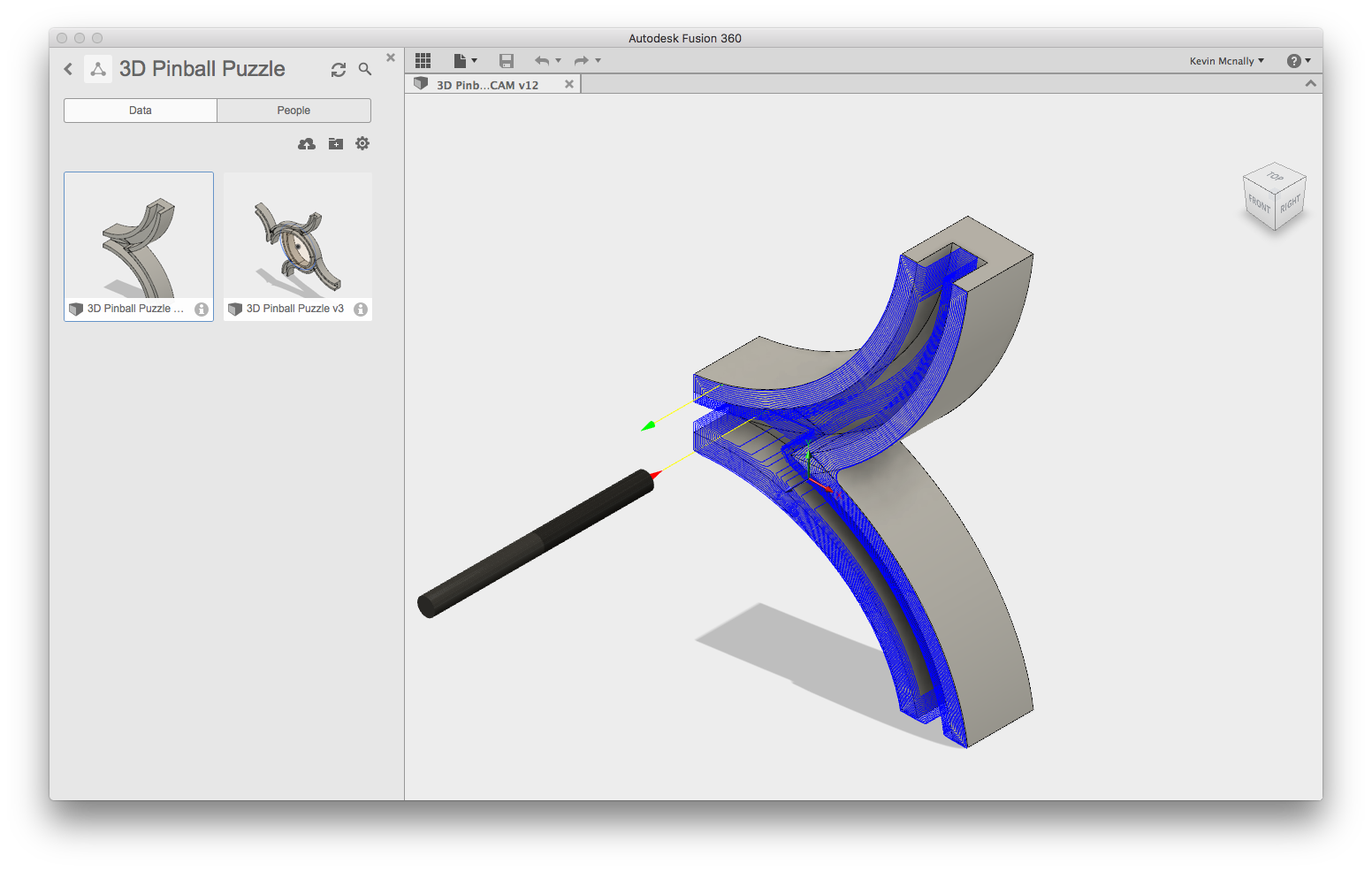

Here’s the paths which I used:

c9502b5ef178186c47cf0ec40925b866.png1552×985 192 KB

7

e21dcc07b83b4adbe7d2b3499cbe8f85.png1552×985 194 KB

8

f54d5d13a1f913e28a39fa2a9862ea2f.png1552×985 176 KB

9

That is awesome @Kevin_McNally ​​!

10

Thanks! I got some help from the fusion 360 community in the tool paths. I used morphed spiral for the finish. It’s completely smooth.

11

I really need to give fusion cam a try. That is way fancy compared to software I’m using, estlcam.

Looking forward to seeing some unique marble puzzles

12

Will definitely keep you updated.

13

That is cool! Really want to see the end product.
