I believe I have everything I need to start the conversion anyone care to

Lasers
, ,
1

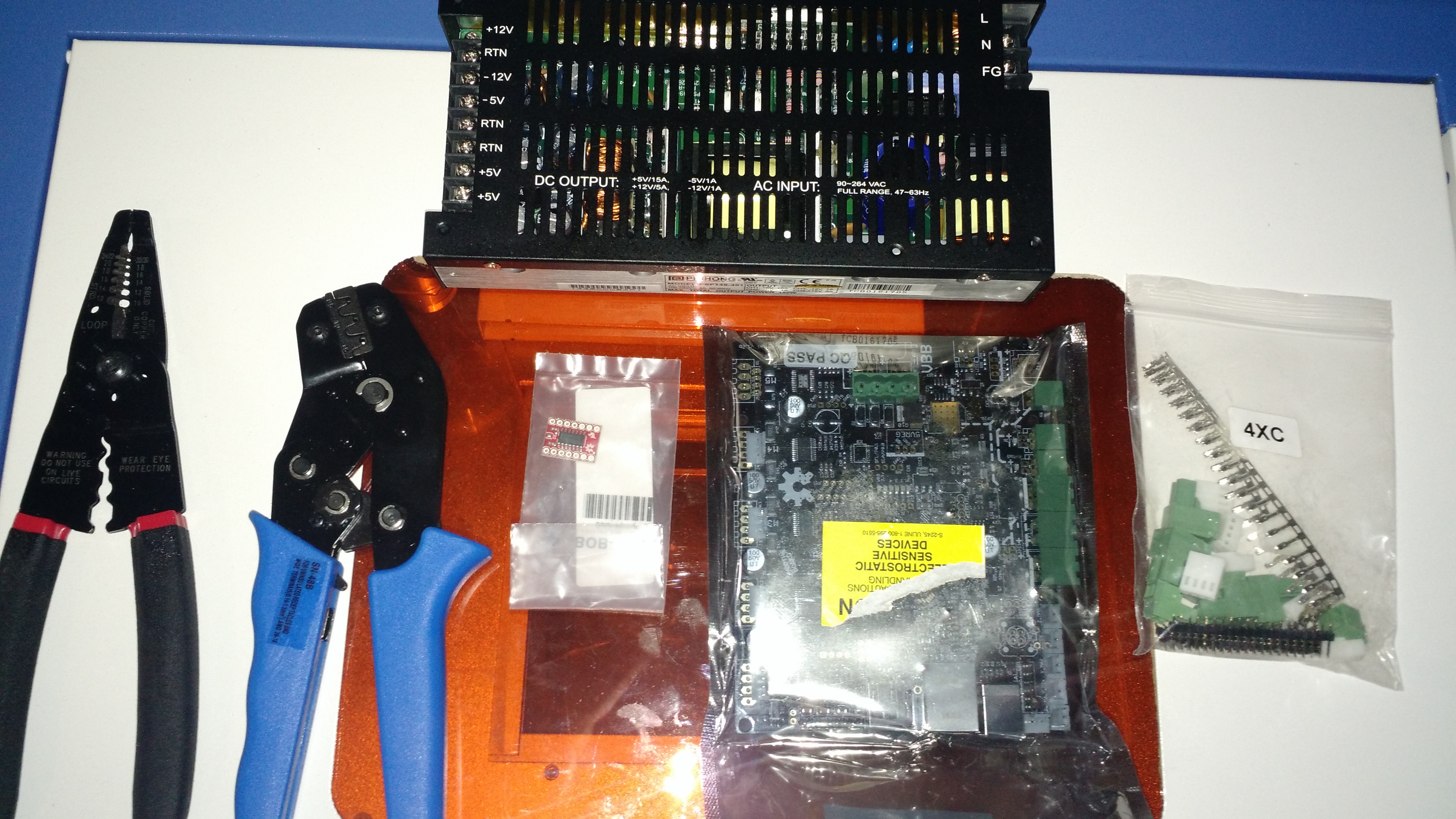

I believe I have everything I need to start the conversion anyone care to walk me thru the logic side of the wiring… the power side is pretty straight foward

6df50ea605823549becfea2527cd9d94.jpeg4160×2340 2.78 MB

2

Good luck and God speed.

3

Follow

4

Jealous: how did you get a Smoothie. I f I had mine we could build remotely together :).

5

I bought the smoothie a month or so ago the day they restocked uberclock

6

There is always the azteeg boards at http://www.panucatt.com they are smoothie based boards :wink:

7

Thanks but I am sticking to the Smoothie cause most folks seem to be using it. If I learned anything in my K40 and open hardware experience its stick with EXACTLY what other folks are using till you get it working :slight_smile:

8

are you going to be running your steppers on 12 volts?

9

the ribbon cable is the hardiest to deal with… do you have a plan for that?

10

@Alex_Krause ​ doesn’t need the ribbon cable

11

@Ariel_Yahni_UniKpty how would you run the X axis stepper motor and end stops?

12

Our board came with a set of connectors for each of those.

13

The smoothieboard did? or is it not one of those newer K40s without ribbon cable?

14

@cory_brown ​ I tagged you in a private post about it the board I had yesterday did you get the message?

15

We have a newer k40 that has the endstops on a seperate jack but the ribbon port is still on the control board just not used

16

Well that’s headache avoided. Good to know. I seem to have not gotten it… I was notified when you tagged me in your last comment though…
