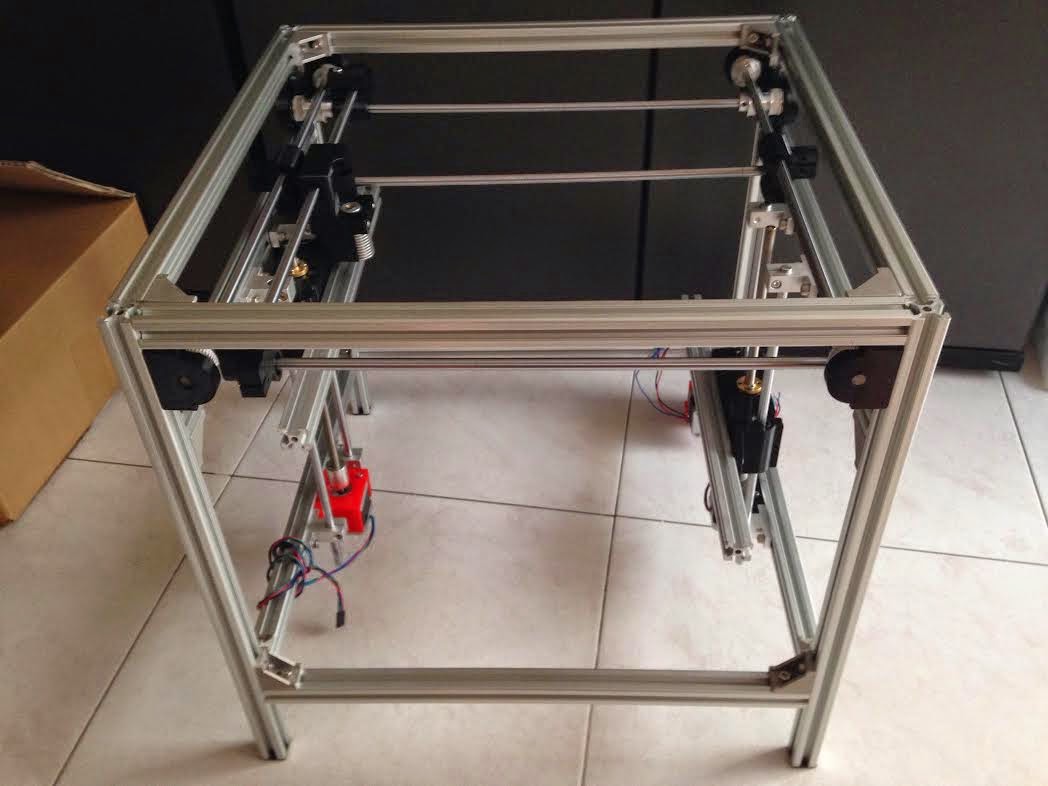

I finally got started on the Eustathios and the frame is mainly completed except that the XY axis movement still get stuck some time while moving with my hand. This is without the 2GT belt yet.
I am now working on the heated bed and before I purchase any of the items, appreciate some feedback on the following
the aluminium heated bed. 340x340mm aluminium T6061 4mm thick
Alirubber silicon heated 300x300mm, 12v
another thin aluminium 3mm plate on the Z axis bed ( I wanted to have spring connecting the aluminium plates so that I can adjust the bed level)
Is there any thing wrong on the layer of aluminium plates? Most importantly, how do I power the heated bed. I plan to use utilmaker board V1.57, 12V. Is there enough amp to power the heated bed.
Also, anyone has a sample of the marlin firmware configuration file? I am familiar with Prusa i3 running RAMPS board with marlin. But, I am not sure of the configuration for Eustathios.
Congratulations on your build, it looks really stable.
Aluminium plates should be fine, I use one 6mm plate (350x350mm) for my heated bed. I would recommend to go 24V for such a big heated bed if you want to connect it directly to a pwm output of your board, as you need at least 300W to reach 100°C. My silicon heater measures 330x330mm and is rated 350W and it takes about 10min to reach 90°C and 15 min to reach 100°C (measured with the built in thermistor, it’s less on the surface). If I could start over, I would go for a 400W heater pad. It also helps to isolate the lower side of the bed with rockwool or some other heat resistant material, it could be sandwiched between the two aluminium plates. with 12V you will get very high currents which might be a problem with your hardware. I use an arduino/ramps 1.4 with 24V and a 600W PSU.
The bed is connected to the heat bed PWM output .The Mosfet on my ramps can cope with the high current but I had to replace the fuses. I also got a problem with a screw terminal that burnt, because of bad contact/high current.
If you want to use 12V, a solid state relay could be a solution.
You can eliminate one of the plates…the build documents inclue stl’s for parts that attach to the ends of the H-frame and provide mounting points for capscrews and springs that then support the build plate. I’ll share a photo with you.
@Eclsnowman the second plate is to attach to the Frame and then it is connected to the bed so that i can adjust the bed level (see attached) I agree with @Mike_Miller I should use printed part to attach to the H frame.
@Mike_Miller I will go with a AC powered bed, what is the SSR? Where can I find more info? How do I PID the bed with external AC? I like to use 12V to power board.
@BoonKuey_Lee I don’t think you want a conductor like aluminum on the underside of the heater. If anything you want an insulator. Get a heater pad with adhesive backing. Stick it to the underside of your heat spreader (1/8" thick aluminum). The heat spreader is what will connect to the frame for leveling and also distribute the heat more evenly into the glass print surface.
While it’s not perfect, and I plan on replacing it with a more precise piece of aluminum, the diamond plate is working surprisingly well. I use blue tape directly on it, no glass. At 100C, the tape peels off surprisingly well (and I’ve gotten really good at not getting burned.)
@BoonKuey_Lee I use a kapton incapsulated in silicon to heat my bed. its a 500W/120V best of all, you can order custom made size. mine is 230mmX300mm. its got a thermistor in the middle if the pad. look for Keenovo on ebay. Send him a email with your specs and he will send you a quote. I ordered 2 of them.
SSR = Solid state relay. basically, they are made with electronics and no moving parts (like a standard relay) look at it like a standard hard drive VS a SSD.
If you use a DC heatpad, you need a DC-DC SSR, else if using main’s a DC-AC is required.
@Oystein_Krog at 30V, with a 200W PCB rating, you’re pumping 6.66amps. if the mosfet in the SSR is rated to 40Amps, its not breaking a sweat… thats why its not hot (i case you did not know)
