I generated solidworks models for the E3D hot end and their Kraken.

3D Printing
,
1

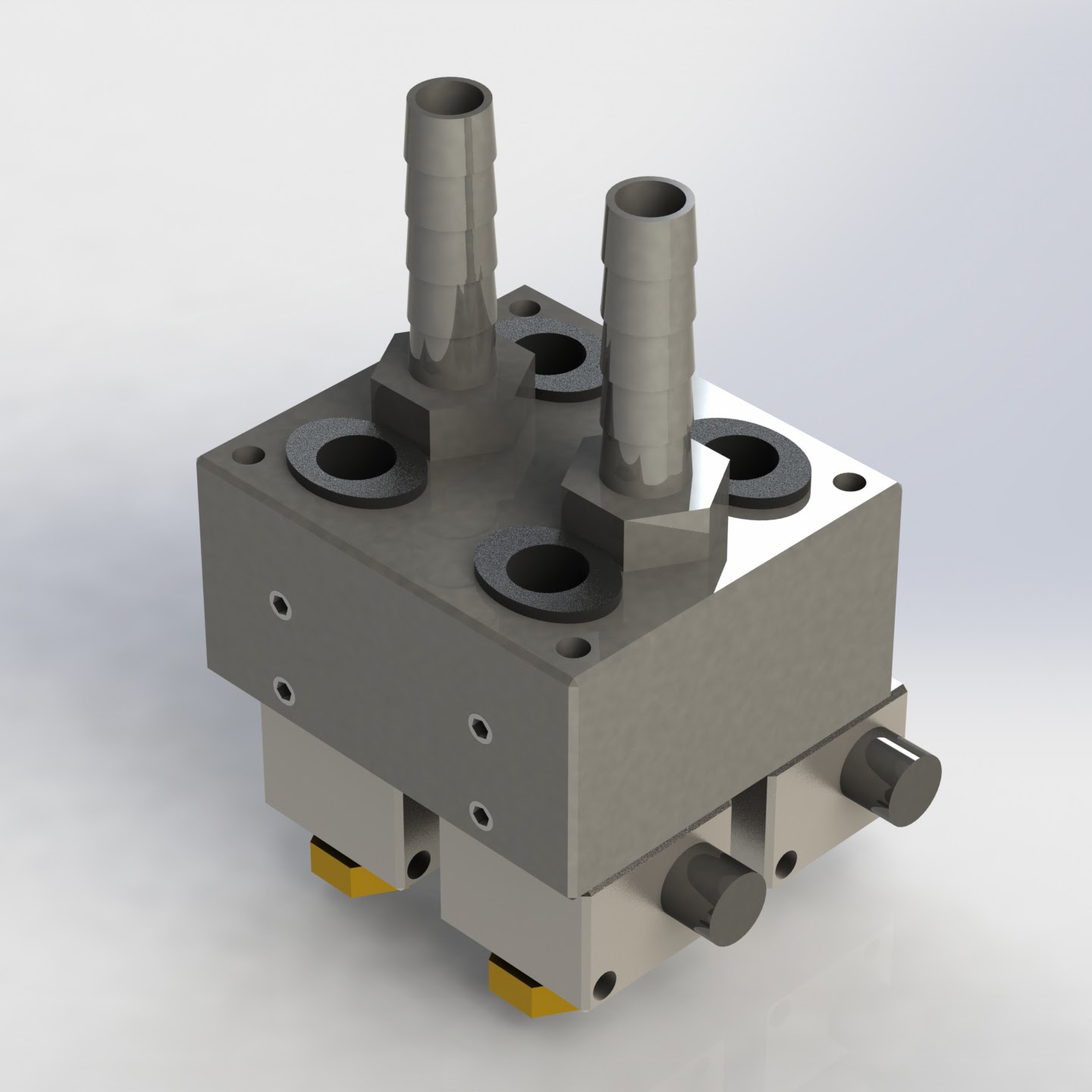

I generated solidworks models for the E3D hot end and their Kraken. A big thanks to the guys at E3D for releasing the drawings so I could make these.

I uploaded them to thingiverse:
E3D: http://www.thingiverse.com/thing:236590
Kraken: http://www.thingiverse.com/thing:236596

and GrabCad:
https://grabcad.com/library/e3d-extruder-1
https://grabcad.com/library/e3d-kraken-quad-extruder-1

Hopefully this helps out others trying to design your own custom brackets.

c8addca23e414c23ef66d6359b5de8b4.jpeg1440×1440 99.5 KB

3ee5bdca1dd0cf922966a122ef7da7f8.jpeg2048×1152 88.6 KB

2

Awesome!

3

Nice I found an e3d model but it had the fan duct on it. Nice to have this option.

4

how is it mounted on a plate ?

5

@Amod_Hulge the E3D is exactly the same as J-head. Not sure about Kraken…

6

thank you for your input. I am planning to switch from j-head to E3D and i felt mounting looks different. I will check that again. Thank you.
