I rebuilt my RepRap,

[Mike_Creuzer]

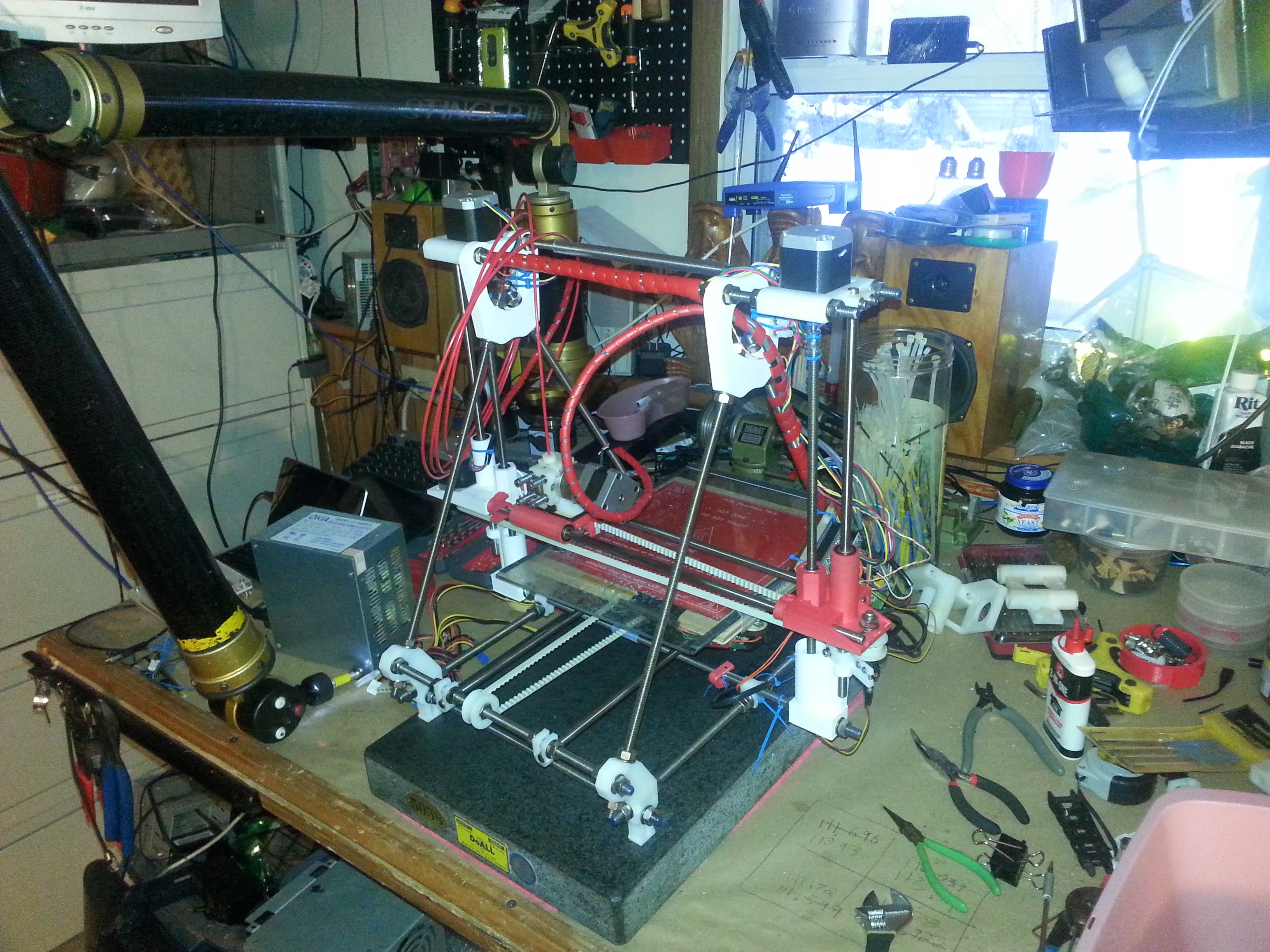

I rebuilt my RepRap, and used a CMM and a spreadsheet to help me square the Mendal Frame using 12 data points.

A Coordinate Measuring Machine (CMM) captures XYZ measurements of differing points taken in 3d space. The one I am using is old, retired, out of calibration certification, and at it’s outside edge of accuracy and repeatibility specifications. It still is a useful tool though.

I used it to take a dozen points of my printer’s print bed and X carriage at their extremes of movement.

I captured the same 4 spots on the print bed both all the way forward, and all the way back by using the laser cut bed mounting holes on the Y sled. This tells me if there is any lift or fall or twist in the print bed’s travel.

I also took points on the X carriage’s nut captures at the four extremes of it’s travel. Bottom left, bottom right, top right, top left. When compared to the Y, I can see if the X is level and square to the Y but also if the Z is square to the Y.

My spreadsheet,
https://docs.google.com/spreadsheet/ccc?key=0Asb6Jfk9hsyhdHVHcmZvMFFjYUI0WHFuZVdjbXZZX2c&usp=sharing does an alignment of the captured points to the print bed. This gives meaningful measurement of the motion of the machine. You can look at the numbers and it makes sense because the front left corner of the print bed - where you home the printer, is assigned 0,0,0 and all points are a meaningful distance from ‘home’. The CMM captures the points based on It’s idea of ‘home’ and looking at the numbers is basically meaningless.

I then calculate some correction values at certain points of the printer frame knowing what’s easy to adjust and what’s hard to adjust.

I assume that the frame is assembled fairly square (I used a jig and measured it with the CMM so this is a reasonable assumption on my printer), so I adjust the moving bits within the frame. The Y sled is given a rotation movement distance, and the Z tower bottom ends are given movement distances as well.

A half dozen adjustments at the bottom of the printer drastically improved the squareness of the printer.

While @Jerry_Rodberg helped me immensely on the spreadsheet, I am still validating my assumptions, the spreadsheet’s correctness and the validity of it’s recommended moves. It is currently provided suggested corrections that are based off of the RepRap Prusa Mendal frame and how that style of printer can be adjusted.

I don’t know that these are actually indeed the best way to correct squareness, and I am sure I will iterate the spreadsheet as I gain experience with it and people’s suggestions. Printers of similar axis arrangement should also work with the spreadsheet with a bit of thought on alternate ways to get the desired corrections into the frame. Any Cartesian printer frame likely can be figured out using the same 12 points, and I plan on adding suggestions for different styles, such as gantry frames e.g printrbots.

I am also looking into using the CMM to square a Rostock style printer and verifying dimensions such as the 120 degree, equidistant towers, and that there is no twist going up the printer. But I expect that will require a different spreadsheet.

[NathanielStenzel]

So people are still making that design? How is your print quality? Total cost? A coworker does not have the sort of funds that I do and I told him I may help him get a printer, so I am hoping to make him something for as cheap as I can.

[Mike_Creuzer]

This particular printer is a couple of years old. It was a MakerGear Prusa kit, in all stainless steel. I picked it because at the the time it was about the best kit available under a grand, and the only one in stainless. It sits next to hundreds of gallons of aquariums in a basement. It’s been discontinued from MakerGear at the begining of this year. Like most RepRaps, it prints as good as the operator can make it print. Mine’s pretty good after the rebuild, but not as good as other’s I’ve seen online.

The i3 would be a better design. It’s what I am planning on printing for a few people I will be helping build printers next year. The wallace is a little cheaper to build, but it’s mostly in printed part costs, which are my costs, so I’d rather have the more solid frame provided by an i3. I’ve some woodworking tools, so I can put together the wooden frame easily enough.

There are some pretty cool units that are mostly printed and look to be low cost, such as the Lisa Simpson and Morgan. But I don’t think I would put a first timer in front of one of those. The geometry and kinematics are non-intuitive.

I think gantry style printers such as the printrbot could be viable in a iteration or two. My reading online suggests that they sag. Either the frames need to improve, or our firmwares will need to iterate off the current plateau and include firmware based machine compensation for such frame defects. At that point, they will likely be the cheapest way into a Cartisian 3d printer simply because of the reduced part count.

This year I’ve purchased an entire electro-motive set for $325, half of that is just on the extruder unit. Other half is for a Funduino mega, RAMPS 1.4, and some overkill steppers.

[Jeremy_G_WeisTek_Eng (Jeremy G (WeisTek Engineering))]

You could look into the smartrap on thingiverse looks to be pretty cheap and only 16 printed parts. I have a modified prusa mendal I2 as well and it is showing its age but upgrading it and what not helps.

I am currently building the smartrap and richraps 3dr delta.

[Mike_Creuzer]

Just mulling over what I’ve done so far, and I think I’ve done a piece wrong.

I am aligning the Y on the A->D point set, but that captures the bed, no the bed/s motion. I really want to align on the A->E as that captures the movement of the Y and ignores any out-of-squaremess of the bed itself.
