I recently started using corel 8 and now my engraving and cutting do not line up, the cut is to the right by 1/2 inch? I am using a pixel on the top left corner of each layer, but no luck? anyone run into this before, also what should my settings be in CorelDRAW 8 settings in corellaser (engraving data, engraving area, cutting data, cutting area, etc)

2

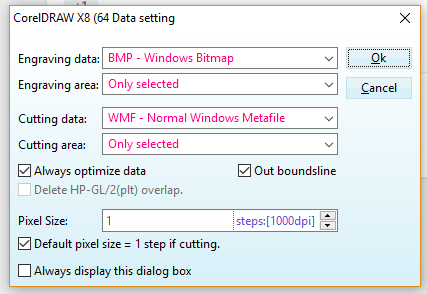

Haven’t seen an alignment issue personally, but these settings have worked for me with CD X8.


3

Sometimes need to use EMF with cutting open curves because the software sometime tries to close the curves when it generates the Gcode.

4

Thanks Ned, I think that may have worked. Can you show me your machine properties from the cut/engrave window? My x y are 400 each, I wonder if that needs to be 600 x 400?

5

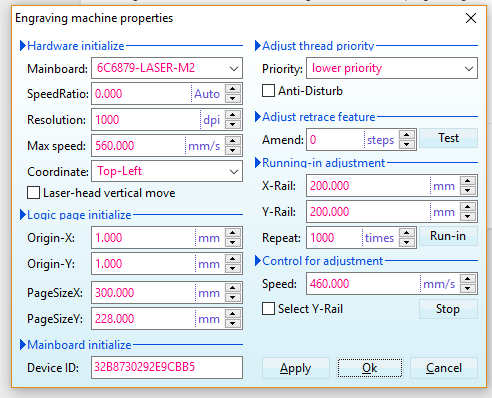

With a standard K40 you are limited to about 300 x 228. Note the Origin x and Y are 1mm here but they can be 0mm. It was a mistake on my part and I never corrected it because I didn’t want to have to redo my origin jigs.


6

Thanks so much, it was the bmp and wmf. somehow mine were other file types and it was not lining up. Changing it to bmp and wmf corrected everything
