I started with a rework for all the printed parts in Fusion 360.

3D Printing HercuLien and Eustathios
1

I started with a rework for all the printed parts in Fusion 360.
Mainly to get some practice in Fusion, also because most of us can’t leagualy use/afford solid works.

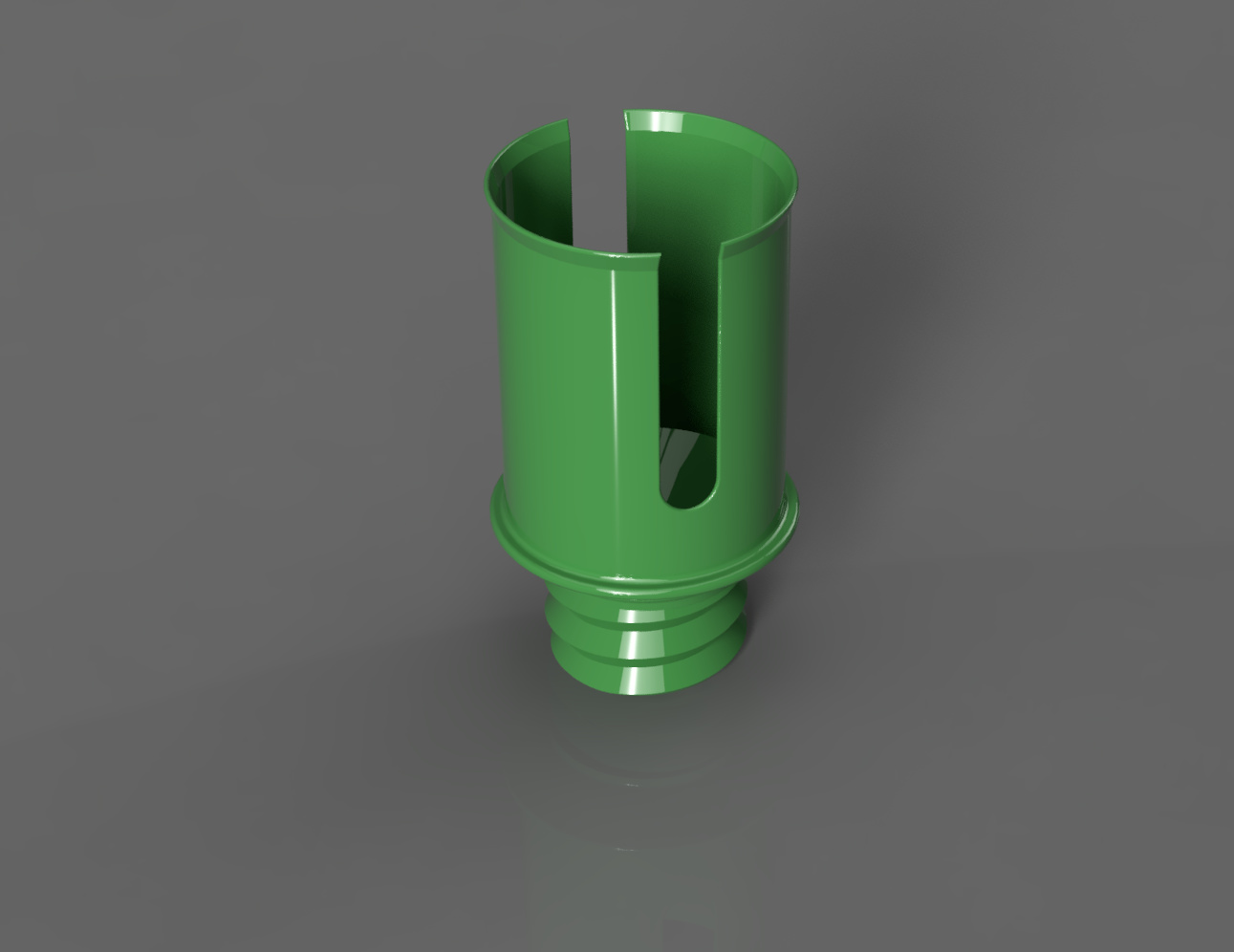

My first question is, what thread type / pitch is used in the 50mm_Threaded_Spool_Holder?

//Tobias

2

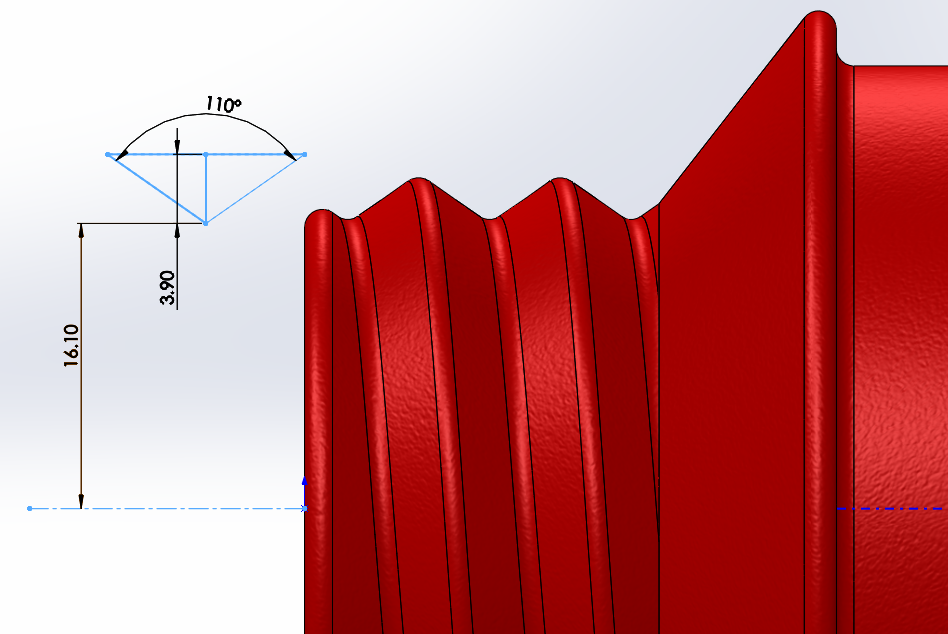

8mm pitch. Here is the profile extruded into the receiving mount (female thread):

7eb80fcd7e91a039ed6c2ba23d884527.png751×490 166 KB

3

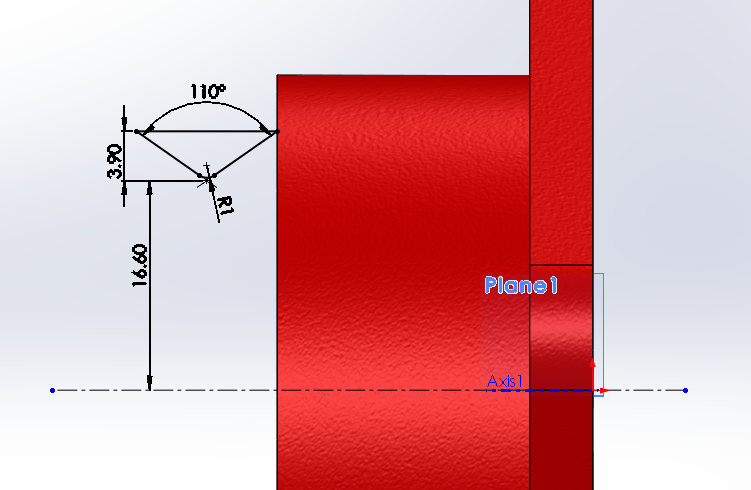

Here is the profile cut into the spool mount (male thread):

149538cebd005831ed0008332731850b.png948×634 283 KB

4

Thanks alot!

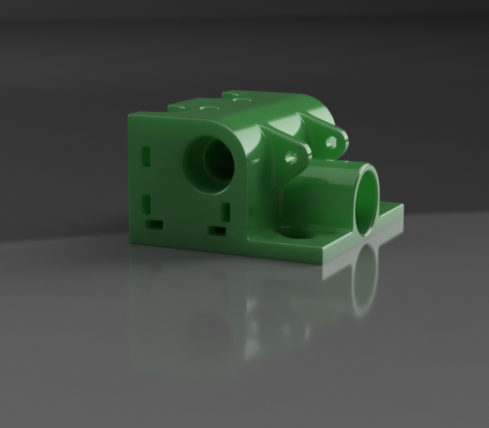

ff5598866d7368d2b9a65e218ea62104.jpg1291×996 75 KB

5

@Tobias_Rodewi looks great!

6

Some parts are a bit complex though… :confused:
Is there a reason for the slanted top on the Double Carriage or is it just for looks?


7

It has been a long time since I modeled it. I forget if it was for looks or function :slight_smile:

8

Well, then i’ll add it to be on the safe side…
Btw, you have done a great job on the parts, all those details…
11 parts reworked by me so far, maybe it’s time to order the extrusions and start printing…

9

Thank you. I tried to put all required components into the model assembly (especially all the hardware since that is something often overlooked in other models I was reviewing when doing my original design)… For me a good model is more important than a user manual :slight_smile:
