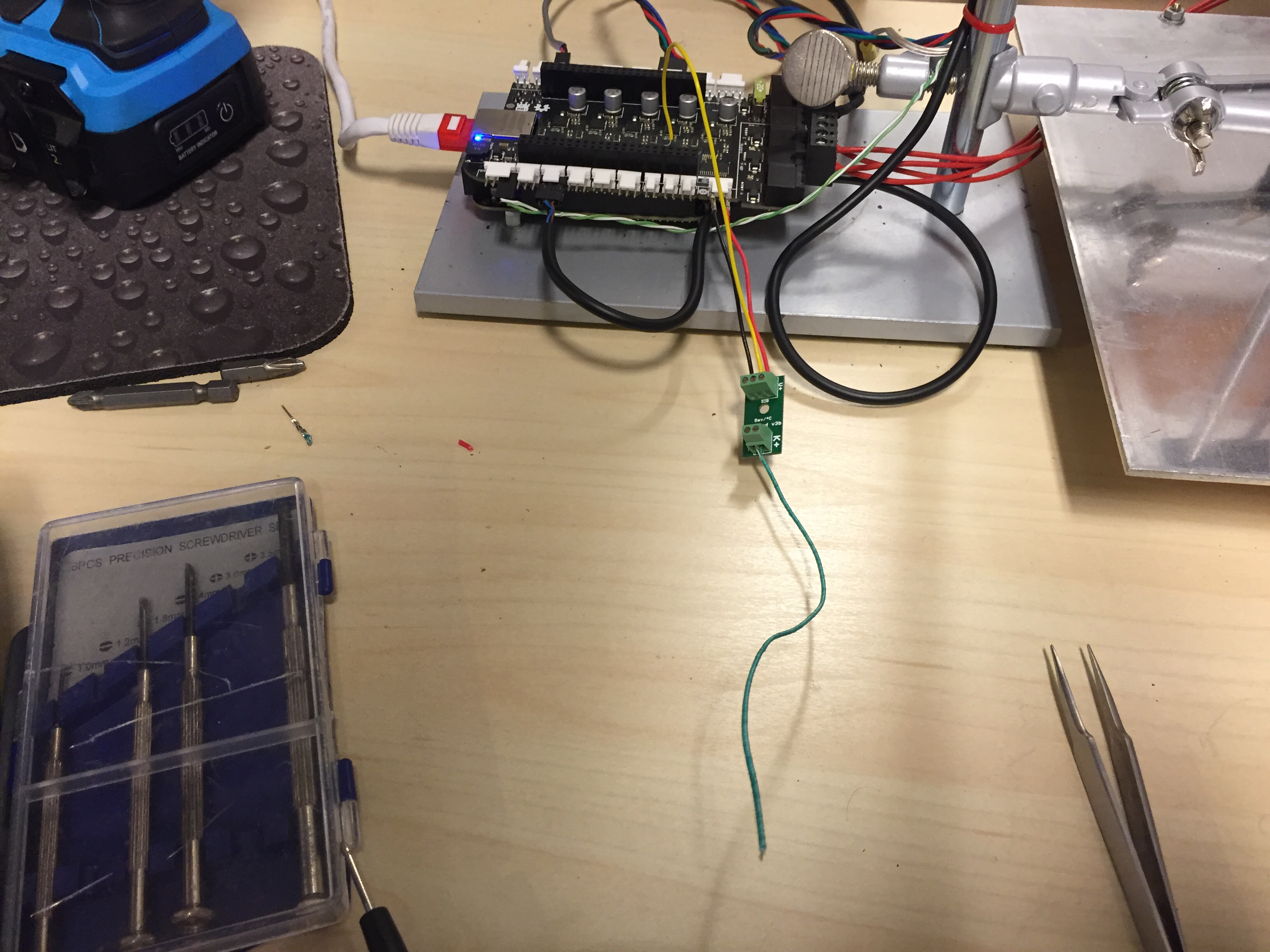

I tried my hand at a thermocouple today. Turns out it was super simple when using a linear converter. The biggest challenge was adding some more ADC channels to the DT.

19d566a0b8a39c8f92499bcb1a68e619.jpeg3264×2448 1.73 MB

2

Can you add details about how you got this working please?
I have a Rev B3 board with a E3D V6 at the moment but I am looking at what is needed for a thermocouple to expand the temp range for more exotic filaments.

It looks like you need a interface board to convert the mV thermocouple output to a 0-5 analog output for the replicape but what happens on the “firmware” side to scale this to the correct temps?

Thanks

3

Hi! You need to implement the class for the sensor you have. Is it pt100? You might need to divide the voltage down so it fits in the 0-1.8V range as well.

4

I haven’t got any parts yet. I prefer to work it all out before buying stuff if possible.

I’ve never done anything in python so might need a bit of help there.
