I would be fascinated to know if this is how your K40 stepper ended

Lasers
, ,
1

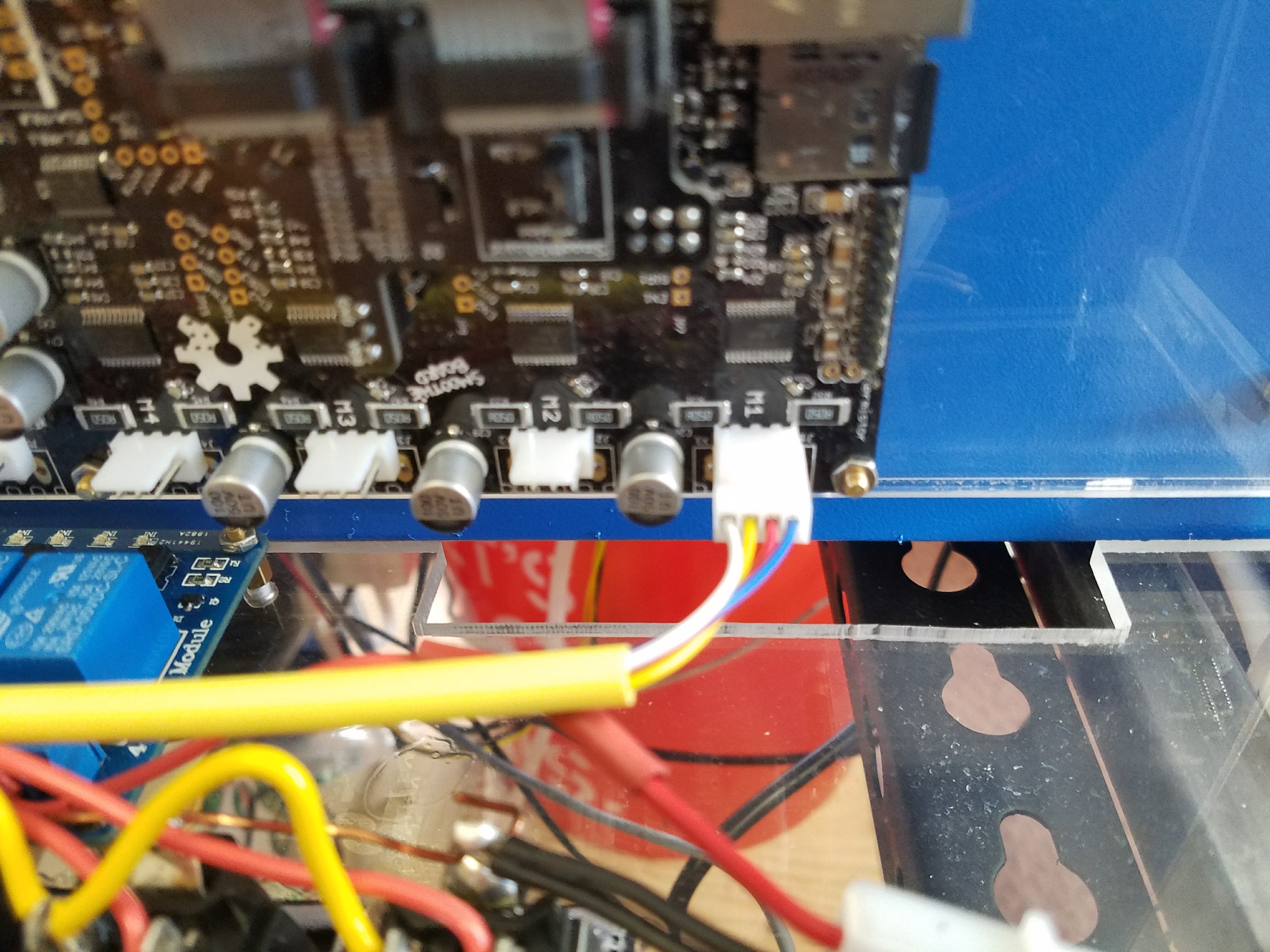

I would be fascinated to know if this is how your K40 stepper ended up being wired. Colors in this order? These are paired with an ohm meter.
I assume pin 1 is on the right in this picture

8d77ab157d35f316841a887c99c6653a.jpeg4032×3024 1.52 MB

2

I have seen so many different variations on the color coding. No real standard that I can decipher.

3

Ya, I know just looking to see if there are any matches.

4

Can’t really say for mine, as I am using Scott’s ACR to interface & make the connections easy for me. From what Scott has shared the wiring colours seem to be based on the mood of the day in the factory lol.

5

I have seen rainbow of colors on these
