Improve z stage now time to tuning

Originally shared by Mauro Manco (Exilaus)

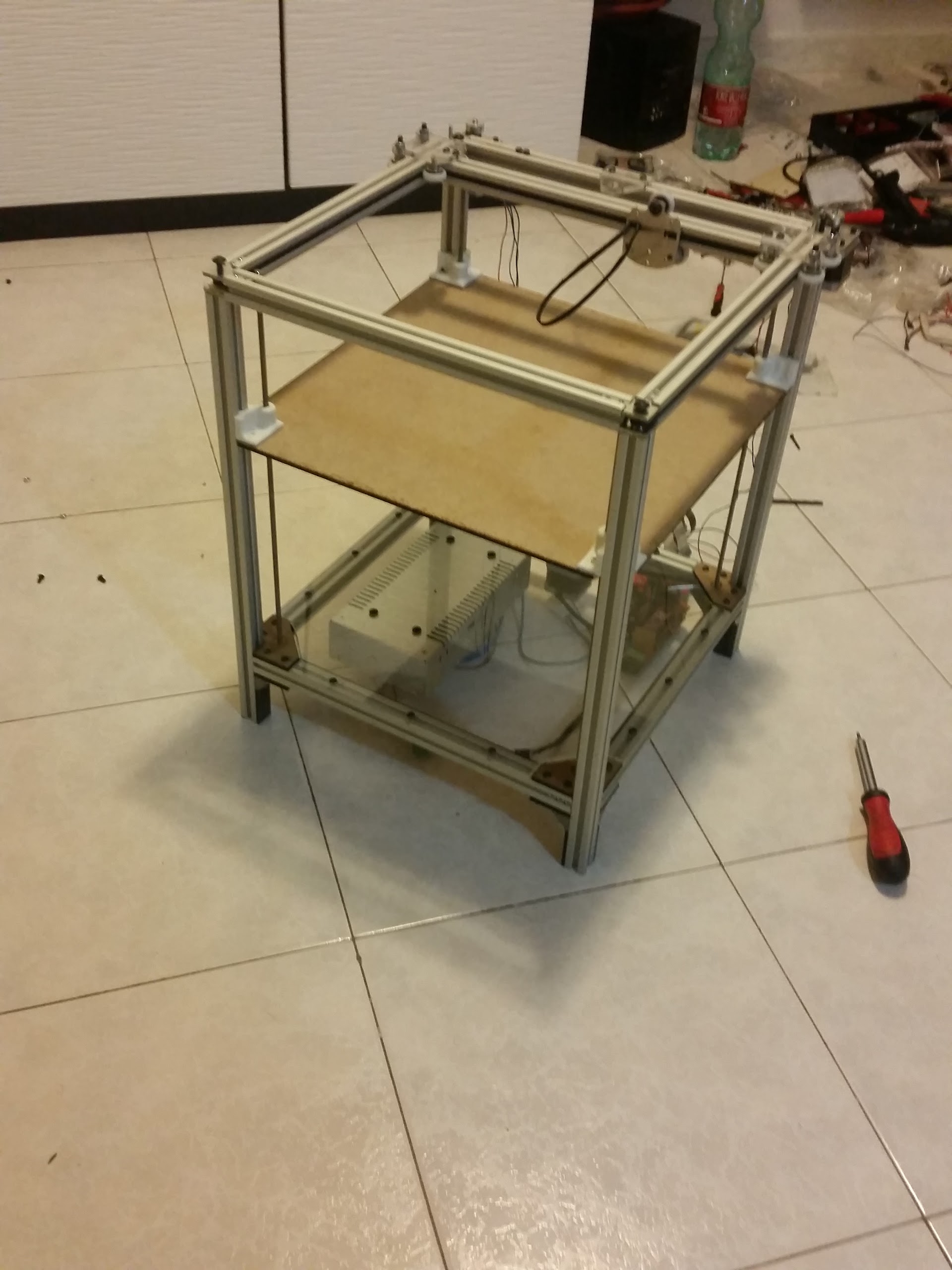

Ok added top now need only tuning and after if print fine full metal cover.

Take a notice all motor/eleteonics stay out print area

de378286f492ae069c5beb32fb55dc7f.jpeg1920×2560 342 KB

0908cab06da251a5a3bf3afa79081c8e.jpeg1920×2560 300 KB

067d11527ce154be1e29b409b6daa8e6.jpeg2048×1152 269 KB

2e29fc766fc2b09e9c05034b4a6f6574.jpeg1152×2048 305 KB

c2e9a412cee29ffa8bb13cf02a50ce6d.jpeg1152×2048 244 KB

a906c553b508e0ccf54d1f270b89400f.jpeg2048×1152 318 KB

2

Never seen that z axis design before. Pretty cool

3

@Abc_Def ​ this really old z system derived from Mondrian --> falla 3d printers i review this system for my printer

4

This z are really slow on next iteration if hbot motion move fine use tr8 screws

5

The Z idler pulley are way too far apart, this could result in pulley skipping because there is few teeth engaged on the belt.

Bring the pulleys closer together. Case and point, look at the shapeoko 3 Y axis pulley engagement.

6

iean no need have more near… have some exprience on this with falla 3d and in bondage making Quadrap printer.

https://www.youtube.com/watch?v=pRt50x8OIuA&feature=youtu.be

7

same gcode to feedrate 100 300 800 https://www.youtube.com/playlist?list=PL__8Y7G5XqPCOflpSBTGzS_knADuVk_3p
