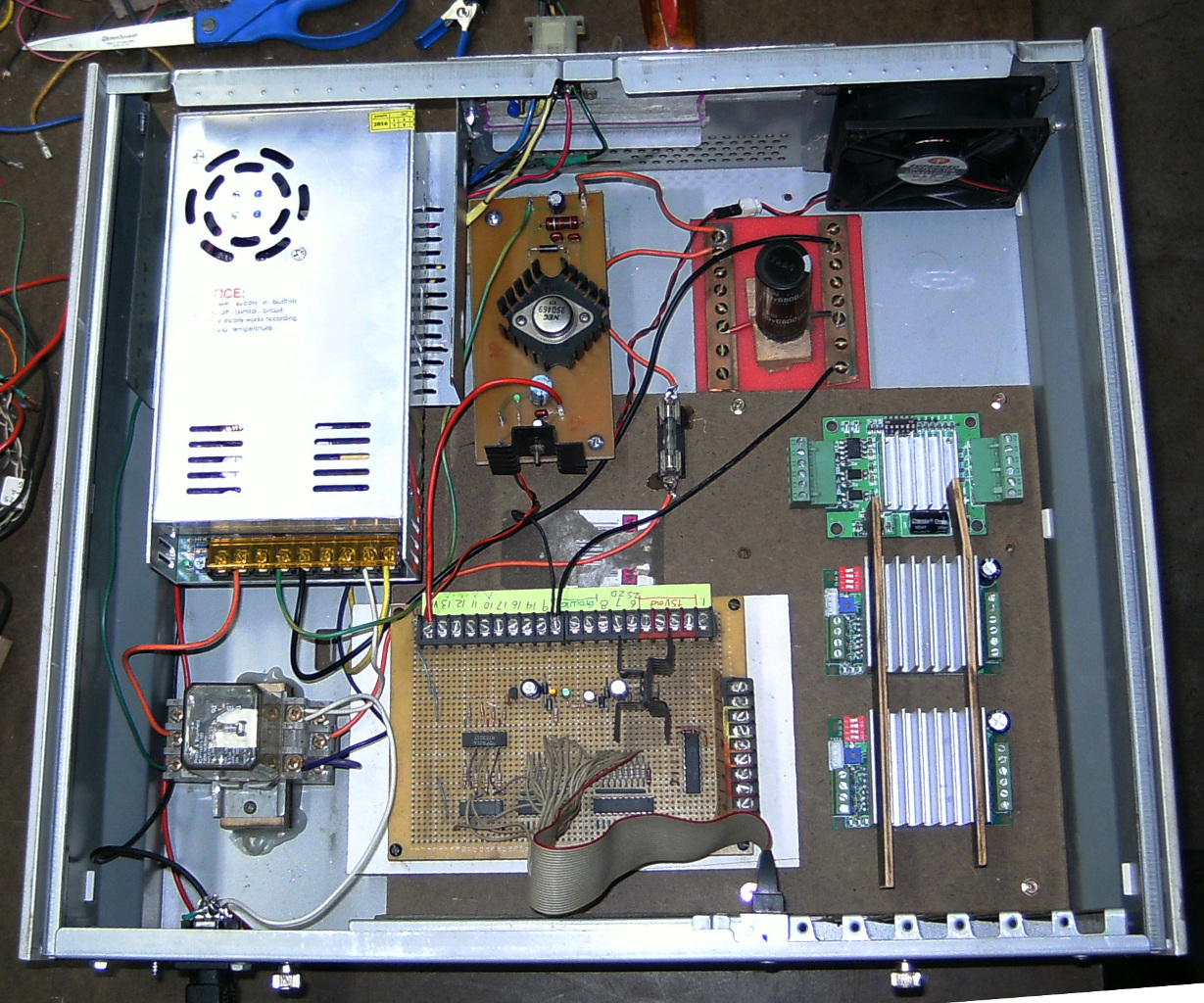

It is getting close now. I have everything done except the motor drives themselves. The fan even comes on when I power the cabinet up.
Tidy layout.
@Steve_Slese
Thanks. It was the only layout I could come up with that had a chance to work. One of the main issues is the length of my motor cables. They’re only so long, and I don’t want to make them any longer than they are right now. Then there are the cut outs that are already in the case. I needed to work with them. All of that dictated the layout that I ended up using. This cabinet has to go under the machine in only one orientation too.
All of the constraints I ended up having to deal with is why I made the remote control box. That gave me a little bit of flexibility. What I couldn’t do was figure out how to get everything to work, and still have the controls I wanted to have accessible.
That was one puzzle piece too many for me to deal with.
