I've been using the original Cobblebot extruder since I got it a year ago

3D Printing
, , ,
1

I’ve been using the original Cobblebot extruder since I got it a year ago until yesterday. I finally got my Toranado assembled yesterday and am tweaking the NEMA14 wiring. However, the wires are wired directly to the NEMA14, not plugged in and has the blue/red/black/green wires. Anyone know the correct mapping of these to the yellow/green/red/grey wires? I have been trying to google it but not find exactly what I’m looking for.

2

This should help: http://digital.ni.com/public.nsf/allkb/0AEE7B9AD4B3E04186256ACE005D833B

3

Thanks. Good suggestions. I have it working now. Main problem is that it was advertised as a 1.8 degree/200 step motor. However, it’s taking a lot more steps, more like 800 to get it turn at appropriate speeds. Not sure why that is.

4

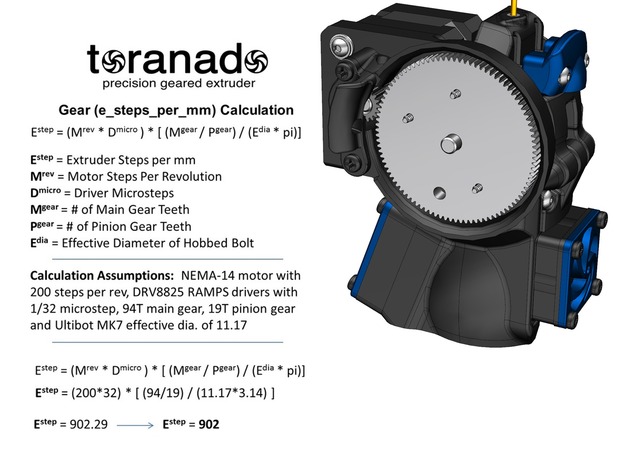

EXTRUDER

5

Here you go. Anything else?
