Just printed up an air assist nozzle and mount for dual line generators :-)

Lasers
,
1

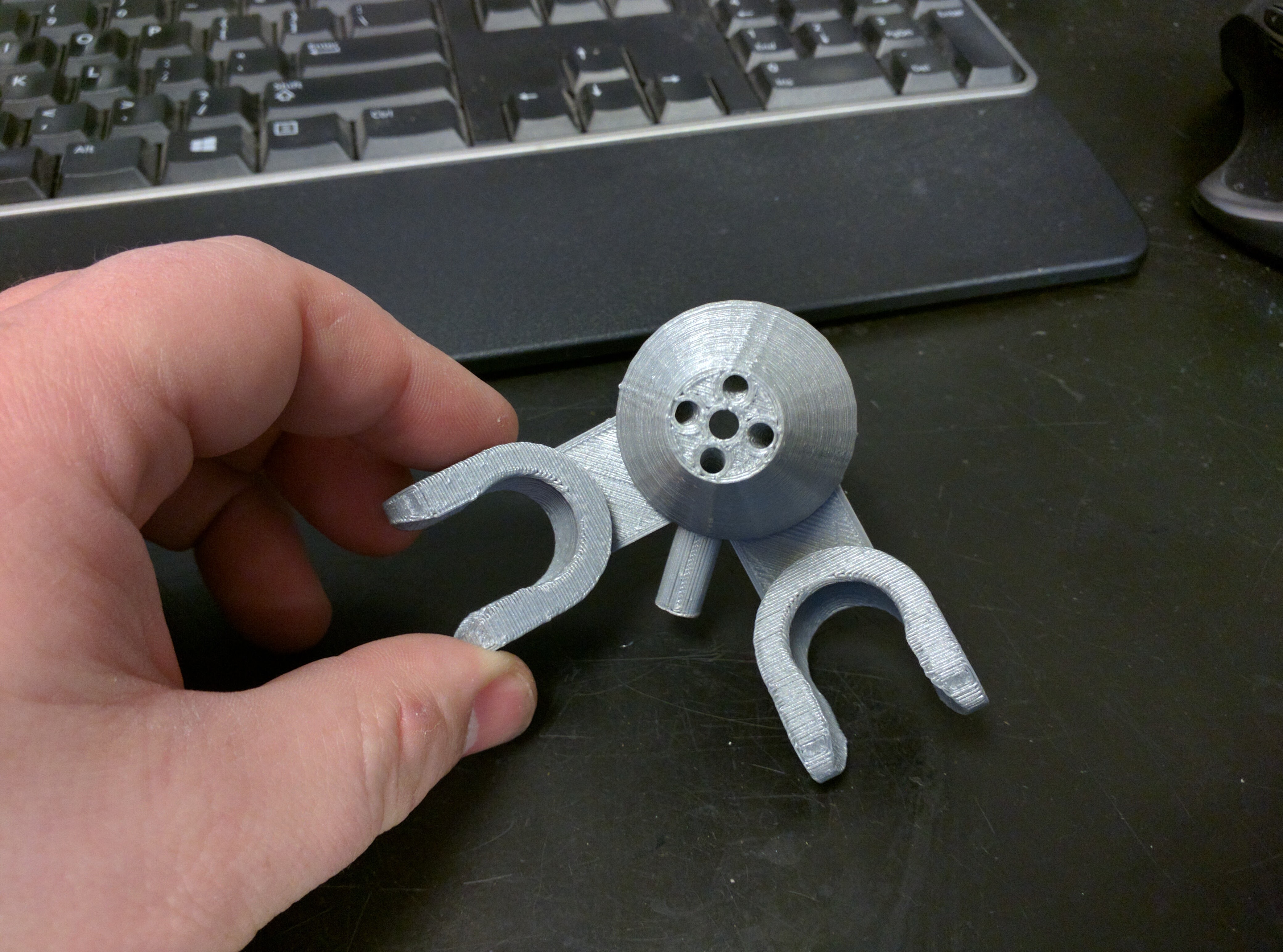

Just printed up an air assist nozzle and mount for dual line generators :slight_smile:

be93dfa63243d9dd94116713ed0917bf.jpeg4160×3088 2 MB

ed168bbda1b443e059b29ac7e150208a.jpeg4160×3088 2.04 MB

a7b816c6b81ec1da3d1c791d14092c73.jpeg4160×3088 2.02 MB

1e7e4f60731f00242834a22170e907f5.jpeg4160×3088 1.86 MB

aaa6e8831d6c152cbfc558652094e009.jpeg4160×3120 1.11 MB

9b12007bb4e0b10324832e5a9e739e9f.jpeg4160×3120 1.06 MB

c0080ecc5a85325a47ffce5ebcb07f3f.jpeg4160×3088 2.35 MB

2

looks pretty good

3

Oh wow looks nice man. Which printer you have? I just purchased Monoprice Maker Architect 3D.

4

I used an Ultimaker 2 here at work. I did not model this one up , I found it here http://www.thingiverse.com/thing:1063067

3mm silver Ultimaker PLA printed at 210°C, .35 layer height, 60mm/s speed. 30% infill, 60°C bed temp

5

Yhat is the nozzle I have been using, works great.

6

very nice. I figured I’d spend a ton of time diddling around getting it right so I used it as an excuse to get an upgraded lens from Lightobjects :slight_smile:

7

The good thing about this nozzle is that the air only flows out of the 4 outside holes (the nozzle is double walled) so that it encircles the laser beam from all sides.

8

that’s cool. would allow for a more dispersed air flow
