Just wanted to share

Originally shared by Marvin Stuart

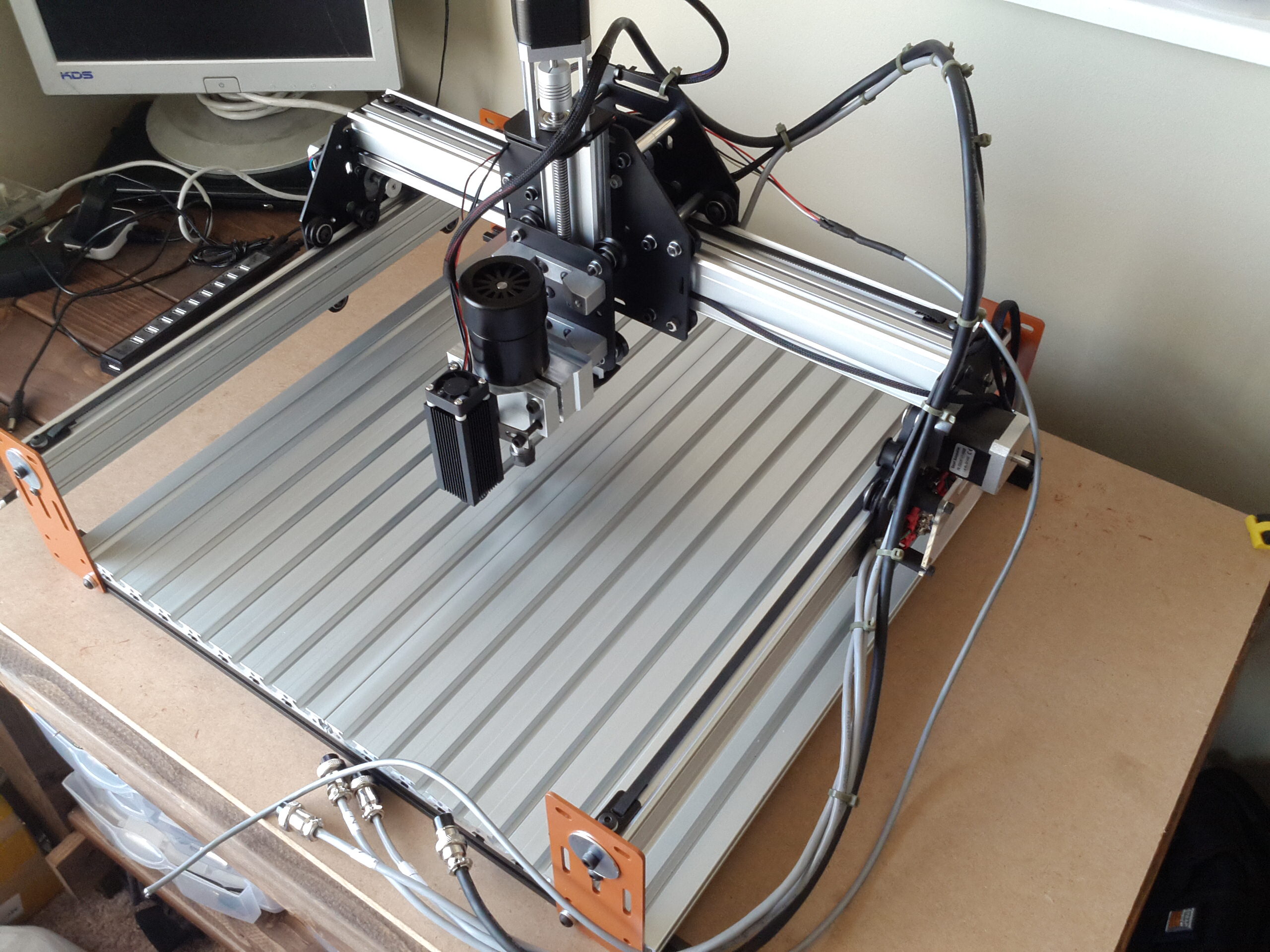

Here are some picture of my almost finished CNC machine .

Work done this weekend

  • Mounted laser (for cutting and engraving)
  • Cut and mounted an acrylic terminal wire guard
  • Increased the z axis by 25mm
  • Mounted spindle

To do this week

  • clean up wiring some more
  • wire laser to power supply and shield
  • mount USB boroscope camera
  • mount USB Web camera
  • mount cross hair laser
  • mount limit switches
  • design and cut dust shoe
  • wire electronics in enclosure

P.S Had all working, but pulled it down to add some more upgrades

daf9837b25489d5aa3f301b97586520f.jpeg2560×1920 663 KB

e51496549221ced1296a7ecc2b2eca51.jpeg2560×1920 580 KB

98eff3388e9610a8bfecde1ecb0954a8.jpeg2560×1920 426 KB

d9637bdbdc1220a66b5f458c276fa7c1.jpeg2560×1920 495 KB

f2d549a58e5f34b4c6738cd015e46616.jpeg2560×1920 618 KB

0f6857a5a4da0bce68a93397e8ef05d6.jpeg2560×1920 582 KB

1dabe7aebc80c0a80fc065209988bff8.jpeg2560×1920 490 KB

2

What laser did you use? Does it come with the housing and the fan?

3

What he said^

4

Yes fan and housing are included, its a 800mw with TTL from eBay

5

Can we have a link please?

6

Link to my Build Log Sheet https://app.box.com/s/u4fyqvp3vhiq0ruyhkgm its has all the links to what I bought and where ( hopes this helps)

7

Thats going to be a pretty versatile machine… ! Good job… And don’t forget to share some of the laser work…

8

verynice machine. :slight_smile:
Looks very similar to the Shapoko II

9

I think it is a shaapeoko II with a better waste board and a laser head.
