LED sign with APA106

Archive FastLED Archive
,
1

LED sign with APA106


2

Nice! Is that a matrix with a mask over it?

3

Thanks

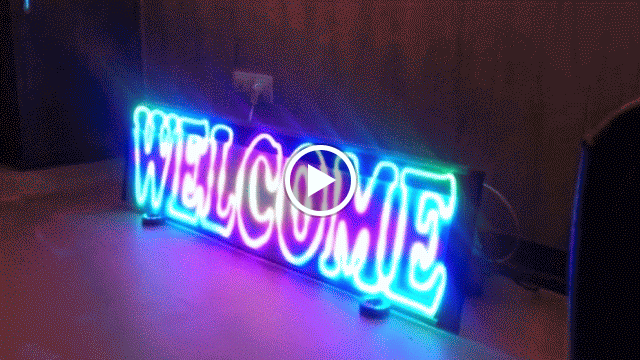

No, it isn’t. It’s 1222 APA106 LEDs that mounted as “WELCOME” word on a plexy.

4

Looks great! I’d love to know more, if you have any build pics or details to share. Did you drill a hole in the acrylic for each LED? Hand solder all the connections, or use connectors? What board are you driving it with?

5

Looks very nice!

6

Thanks
I draw leds in coreldraw and pierce them with a co2 laser, and wrote a software with C# that get the corel file like this:
http://s16.postimg.org/55c63njl1/Corel_file.png
and get position of leds and convert pic file(gif,…) to binary(RGB)
The software generate 2 file , a conf.bin that contain leds count , channels count , count leds in each channel , led order , frames count, … and a file that contain leds data.
http://s15.postimg.org/clutrzhnv/Software.png
http://s11.postimg.org/v5rzvd3kz/Software2.png

I use Arduino mega2560 with a microSD card that contain data.
http://s27.postimg.org/420yryclv/PCB.png
