Manual assembly in progress of the KiCad -designed PocketBone by Michael Welling with Octavo

Electronics
, ,
1

Manual assembly in progress of the @KiCad -designed PocketBone by @Michael_Welling with @Octavo_Systems SiP

Originally shared by Michael Welling

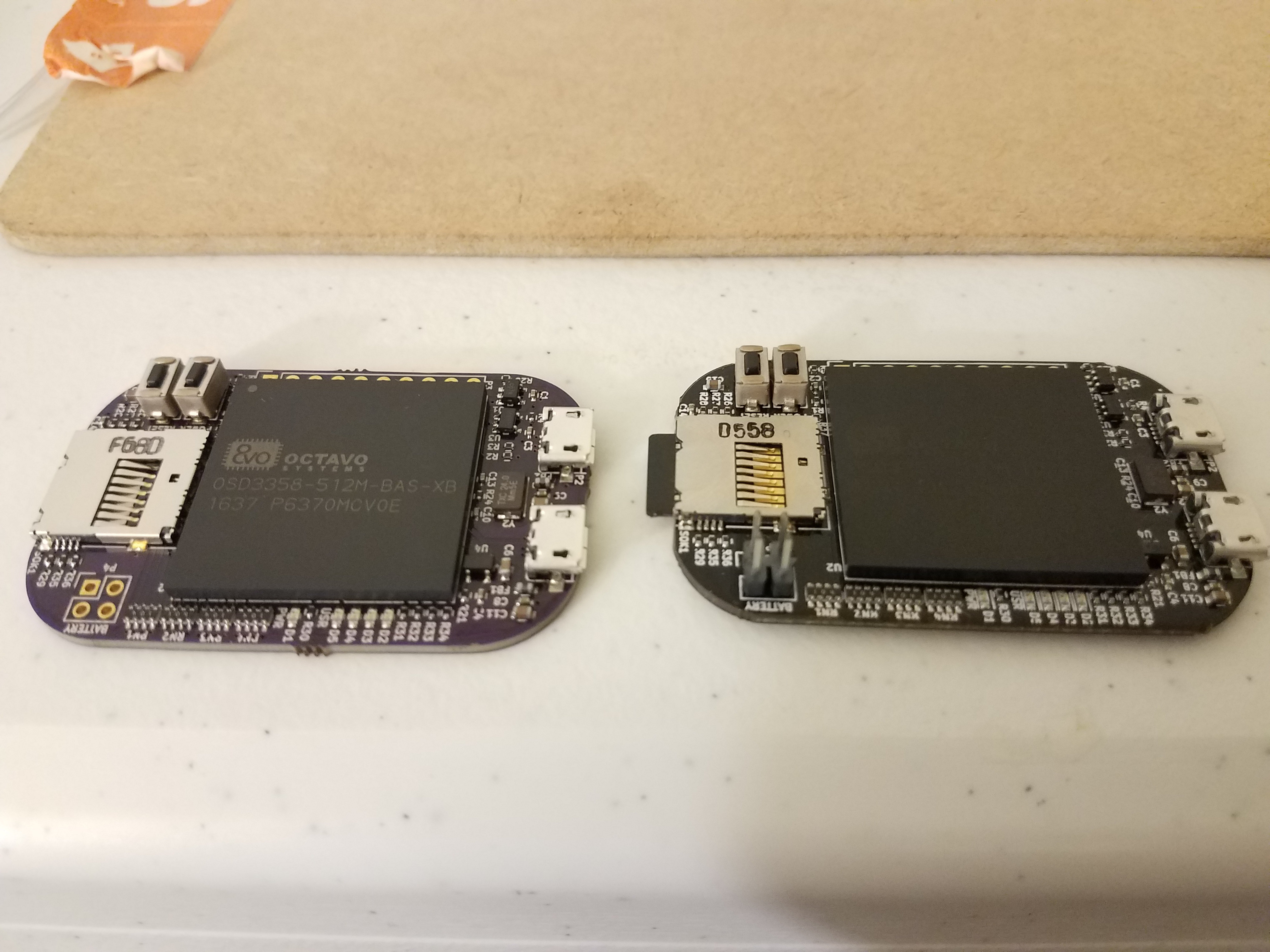

And then there were two.

867b77a1d4dc15d41da2f90e5a36d3bd.jpeg4032×3024 2.6 MB

2

GitHub repo: https://github.com/mwelling/pocketbone-kicad

3

Manual! Impressive.
