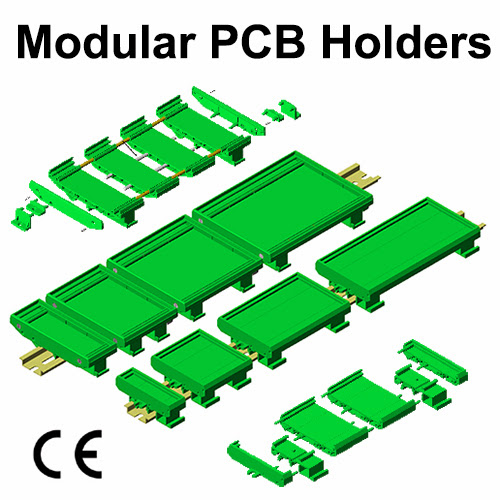

Modular PCB Holders

DIN Rail or Panel Mount Universal
Mounting for 73 & 108 mm width PCB

Modular PCB Holders provides quick & easy mounting of PCBs on all three Rails. Modular design concept allows variable length of PCBs. Active & passive Interface modules used in Electrical circuits with Electronic system as one of its use.

Features:
• Universal mounting in all three commercially available rails EN 60 715 TH35, TH15 and G32 DIN rails.
• Available in standard size modules
• Provides quick & easy mounting of PCBs as no cutting or other operation is needed.
• Panel / wall Mounting
• For 72mm and 108mm width PCB size.

Applications: Modular PCB Holders include Mounting custom PCB and Standard interface modules for Din Connectors, Sub Miniature Din Connectors, Flat Cable Connectors also Modules like Relay modules, Opto - coupler modules, Switch modules, Fuse modules, Diode modules, Veristor Modules, Power supply modules, Over Voltage protection modules, Data Transmission & Receiver Modules, Analog/ Digital Converter etc.

The system: 108 mm width PCB Holders assembly consists of 35 mm Foot pieces, Spacer piece with End pieces. Foot piece provides fixing for complete assembly by simple snap fitting on all three rails. Holders have Integral molded PCB guides for Base PCB. For Panel / wall mounting separate High and Low Brackets available as accessories which fits on End pieces to provide Panel / Surface mounting.

The system: The system: 72 mm width PCB Holders assembly consists of 45mm Base element, two side elements and Foot element. Foot Element provides fixing for complete assembly by simple snap fitting on all three rails. Holders have Integral molded PCB guides for Base PCB. For Panel / wall mounting side element has an integral mounting flange with slot. There is no need of Foot element in Panel mounting.

For more detail visit
http://gaurang.com/din-rail_sub2.htm

#DinRailPCBHolders, #dinrailenclosures , #plasticenclosures , #plasticelectronics , #boxes , #case #PlasticEnclosures , Electronics , #DinRailenclosures , #ABSenclosures , #ElectronicEnclosures , #Enclosures , #Electronic


2

And why can’t we just print our own electronics mounting solutions? Why buy yours?

3

Thanks for your comments. These are International standard housing used to protect and cover PCBs and provide mounting on Din Rail / Panel, as it is standard and produced in large quantity it is less expensive than custom solution.

4

I think the real question @Anthony_White is asking is why is this relevant to a reprap forum if you are not going to release portable solid models? Cool product nonetheless, but I’d love to print then for prototyping. For mass production, I’d have no choice but to buy your real parts

5

ok I got it, Thank you @Anthony_White @Eric_Moy for your time reading our post.
