My DIY CNC project - a small update

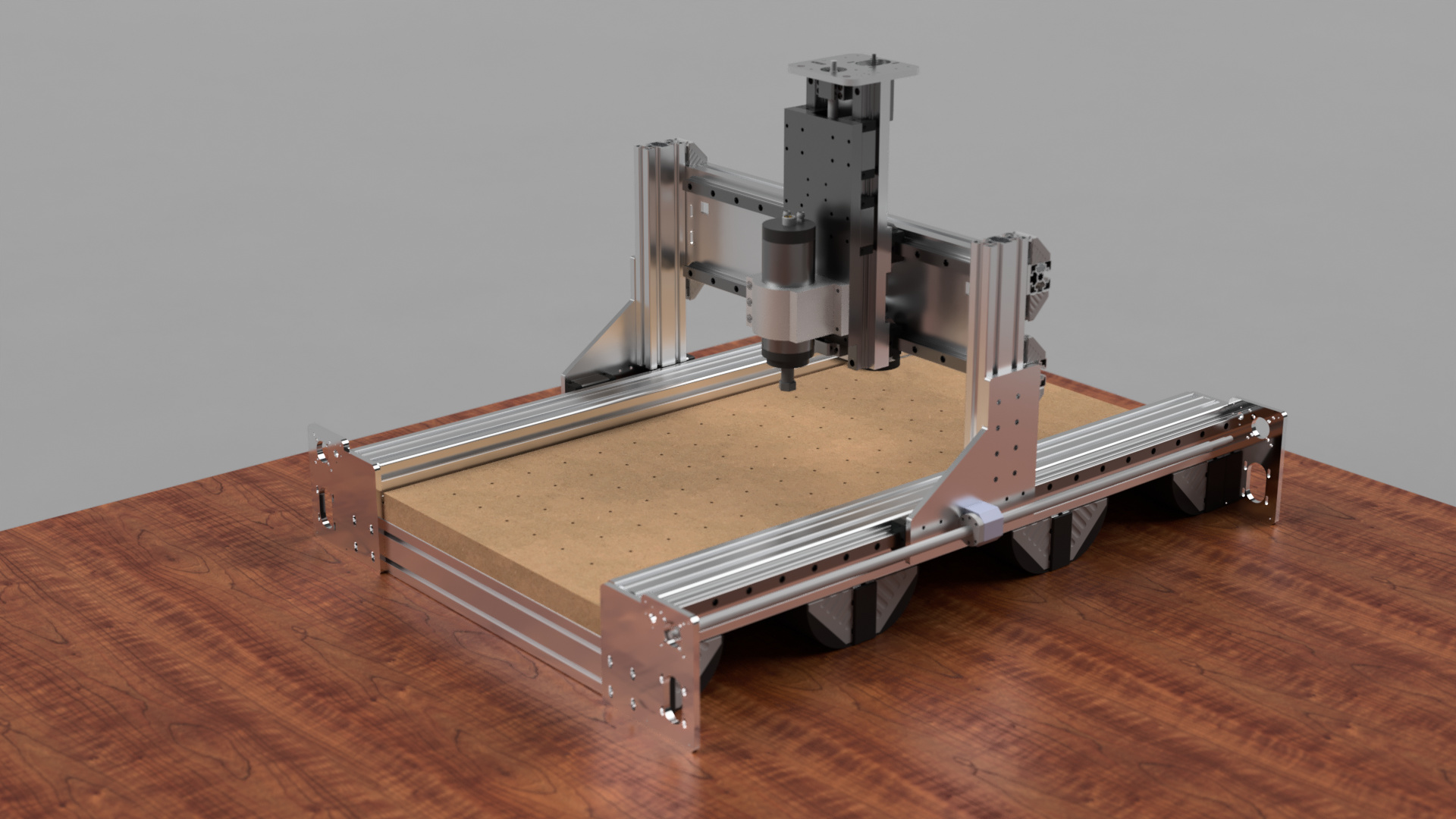

Have designed the mounting plates for Y-ballscrew/stepper and Z-stepper

I have designed the plates so I can use a belt/pulley configuration or direct
10mm quality alu

2037bf572ef34bca3e50da2b78a90267.jpg1920×1080 454 KB

2

Did order pulley/belt kits for all motors today + the new alu plates Exiting :slight_smile:

3

Would you please show me the backside of your project? I’m curious :slight_smile:

4

Have not included all parts in the 3D model. The X-axis ballscrew is going to be installed in the front of the gantry - the x stepper on the rear side using a pulley/belt between them…

missing/deleted image from Google+

5

Ok, thank you. I like it very much!

6

Thank you - Soon Ill have all the parts so then Ill start shareing real photos from the build

7

I consider installing some plates like this to protect the ball-screws/rails from dust… - a bit higher + I have to include space for cable drag chains

missing/deleted image from Google+

8

Sweet))

9

Have startes installing the lubrication nipples before I start working on the final setup/alignment…missing/deleted image from Google+

10

Arrived today :slightly_smiling_face: 10mm Quality alumissing/deleted image from Google+
