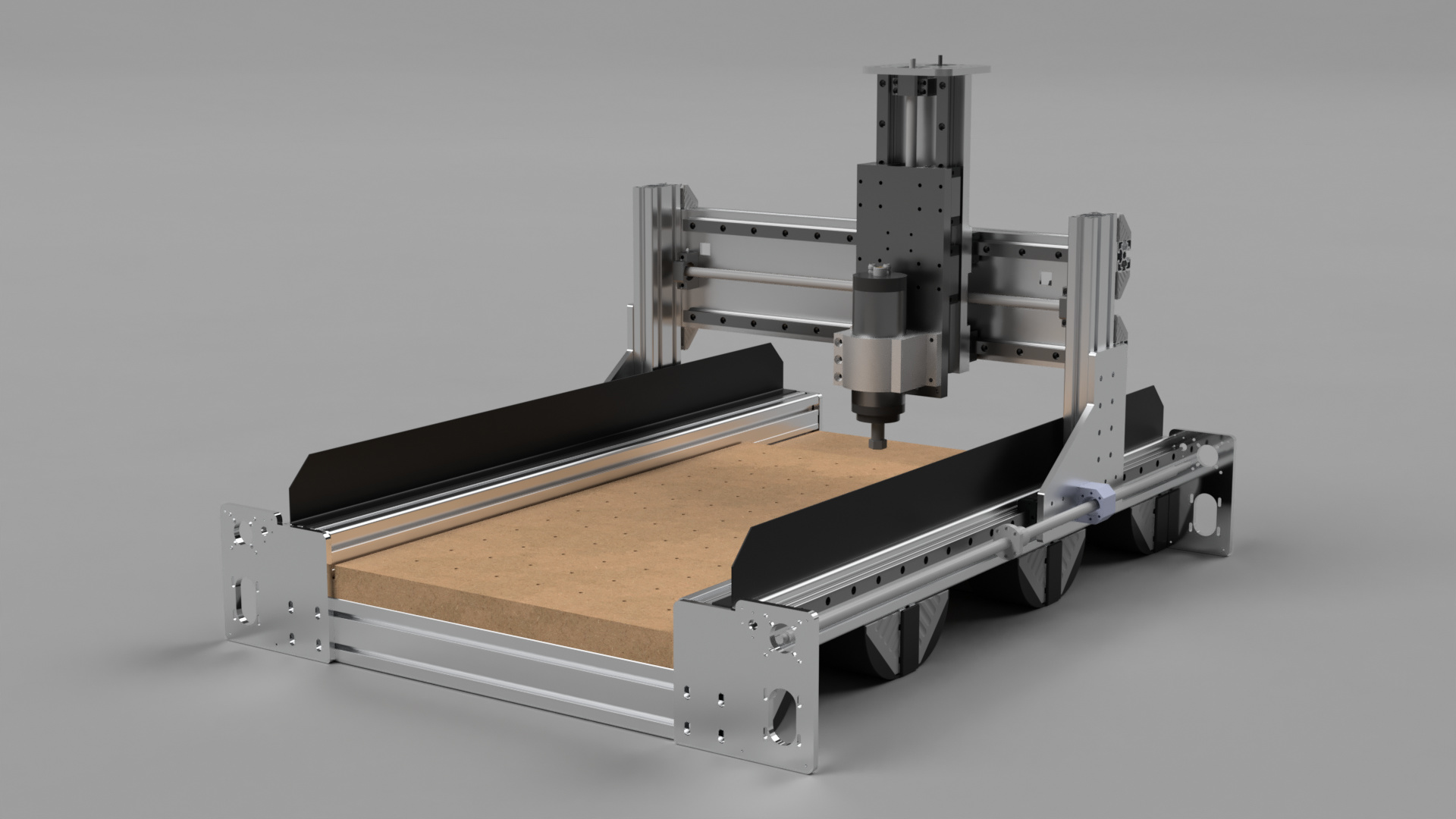

My DIY CNC project - today the plates for Y-screw/motor + the Z-top plate arrived.
10mm quality alu made using waterjet cutter.
Done a test install and all seems to be as planned - now I have to wait for the Y-ball screws to arrive.
What size bed did you end up with, looks great!
Y ball screw…is that a 3 thread per rotation threaded rod?
Something like X-55cm, Y-100cm and Z -20cm
@NathanielStenzel I’m going to use 1610 on the y and x axis ,1605 on Z-axis
I like the clean design. Looks great. How are you planning to attached the X-axis motor?
total dimenzions width 966mm and length 1230mm
@Jay_Polo x axis motor on the rear using pulleys and belt between the ballscrew and motor.
I have designed the motor mounts for the Y and Z axis so they support direct motor mount or using belt/pulleys.
I plan to test 2:1 belt pulley setup on all axis - I can alter the ratio later if I have to.
When the Y screws + belt/pulley kits arrives I have all the mecanichal parts.
Soon I can start installing end-stops, testing the stepper motors… - this is fun and exiting
missing/deleted image from Google+
the base frame is made using two Bosh 90x90 profiles + 4 x bosh 45x90 profiles
@Oyvind_Amundsen OH! ha ha ha… Application not actual thread description. Gotcha. I thought it was a special threaded rod description for a moment. Silly me!
