My first 3D object, the "music box" from the Epilog site.

Lasers Created With Laser
1

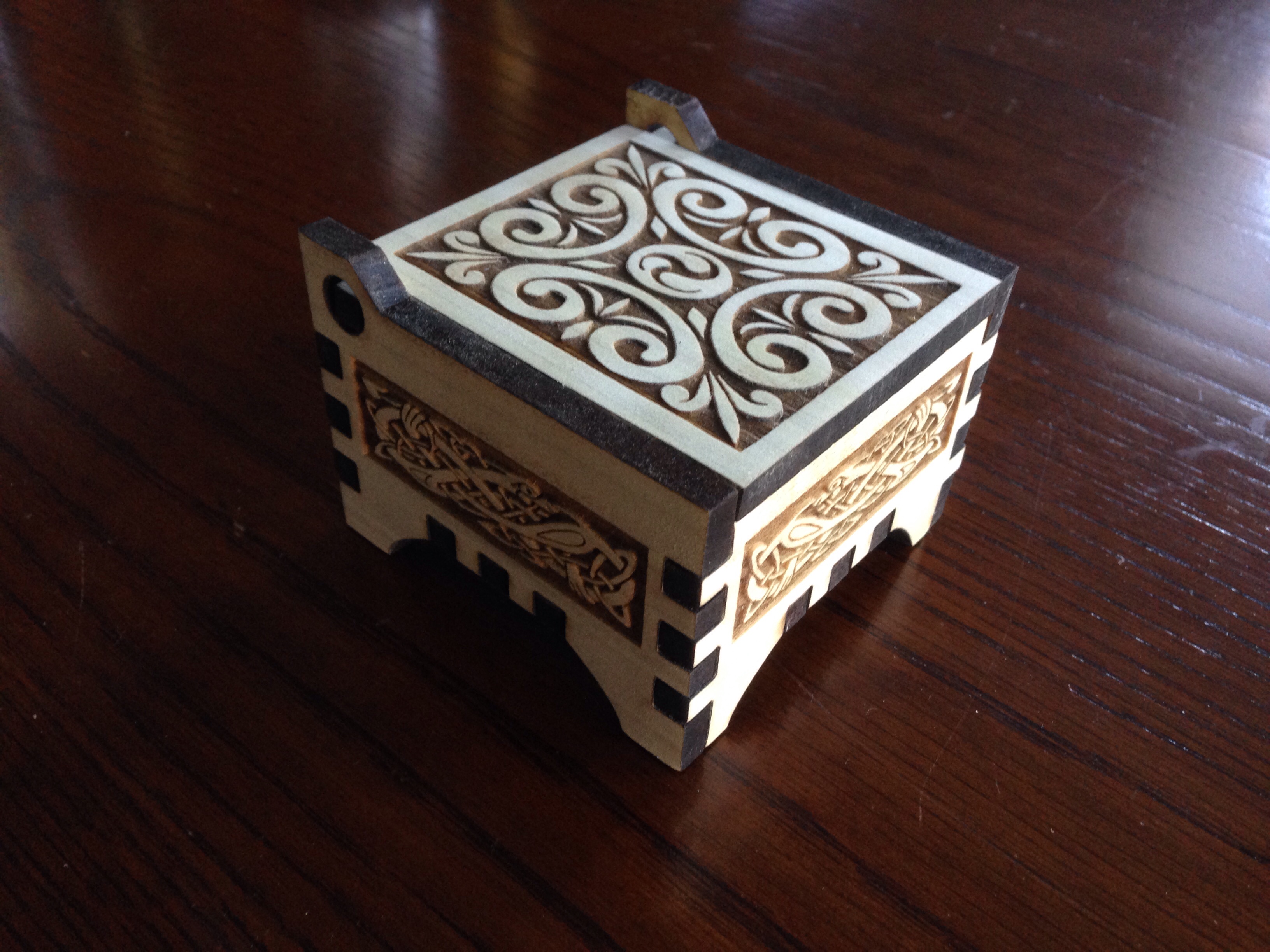

My first 3D object, the “music box” from the Epilog site.
Etch: 6mA 320mm/s, Cut 8mA 5mm/s, two passes (probably could have gone a little faster). 1/4" poplar.

Didn’t account for kerf, so the fit was slightly loose, but planned to glue it anyway.

70f8a8c05aa97c8b2f855c76383a6d54.jpeg3264×2448 1.65 MB

d83681b8277e3be4ab1e83c632b12301.jpeg3264×2448 1.72 MB

2

Nice work, that’s sharp!

3

That looks really nice. A great box for storing little nick-nacks.

4

so neat! did you use tape so that it will not soot?

5

Felicitaciones buen trabajo, una consulta donde puedo conseguir un paquete de vectores para laser para hacer este tipo de trabajos

6

A handy trick for holding things together is to use pins. They’re like brads but are smaller/thinner at 23ga. If you’re in the U.S. you can get a pneumatic pin nailer for under $30 from Amazon or Harbor Freight. Pins come in a variety of lengths that are perfect for pinning the finger joints together. With some glue the joints will be as strong as the wood.

7

@Jim_Hatch Looks like a handy tool to add to the collection. Thanks for sharing that tidbit.

8

I sanded the surfaces to remove soot (220 grit). Here’s the project files btw: https://www.epiloglaser.com/resources/sample-club/music-box-laser-cut.htm

9

I tried a bunch of different things, masking tape, several kinds, lotack (film carrier for decals), Kapton tape, etc. All are a PIA to remove especially if you do lettering or scrollwork.
In the end I discovered a quick hit on the beltsander is the best way.

A good air assist head and aggressive exhaust minimizes it, but there always some shading around the edges and inside letter islands.

I notice on your box you left the dark edges, I think it adds a nice contrast.

I may just have to make a few of those, they would be nice gifts filled with a variety of goodies.(or a music box).

Here’s a source for music box guts. (and other cool junk). shipping is kind of abusive, or I’d buy more stuff from them.
http://www.goldmine-elec-products.com/searchprods.asp

Scott

10

I couldn’t download the files probably because I am in the UK. can you share them please

11

Weird, dunno why epilog would block non-us visitors.
This is the Epilog page: https://www.epiloglaser.com/resources/sample-club/music-box-laser-cut.htm

Here is the file, I put it up on Amazon S3: https://s3.amazonaws.com/tevk/laser/musicbox8.cdr

12

Thanks Tev got it now
Not from Epilog site, when I tried to download just came up with a page full of weird characters
