My switching regulator for my ultiboard 1.5.7 to replace the 7812 linear regulator.

3D Printing
,
1

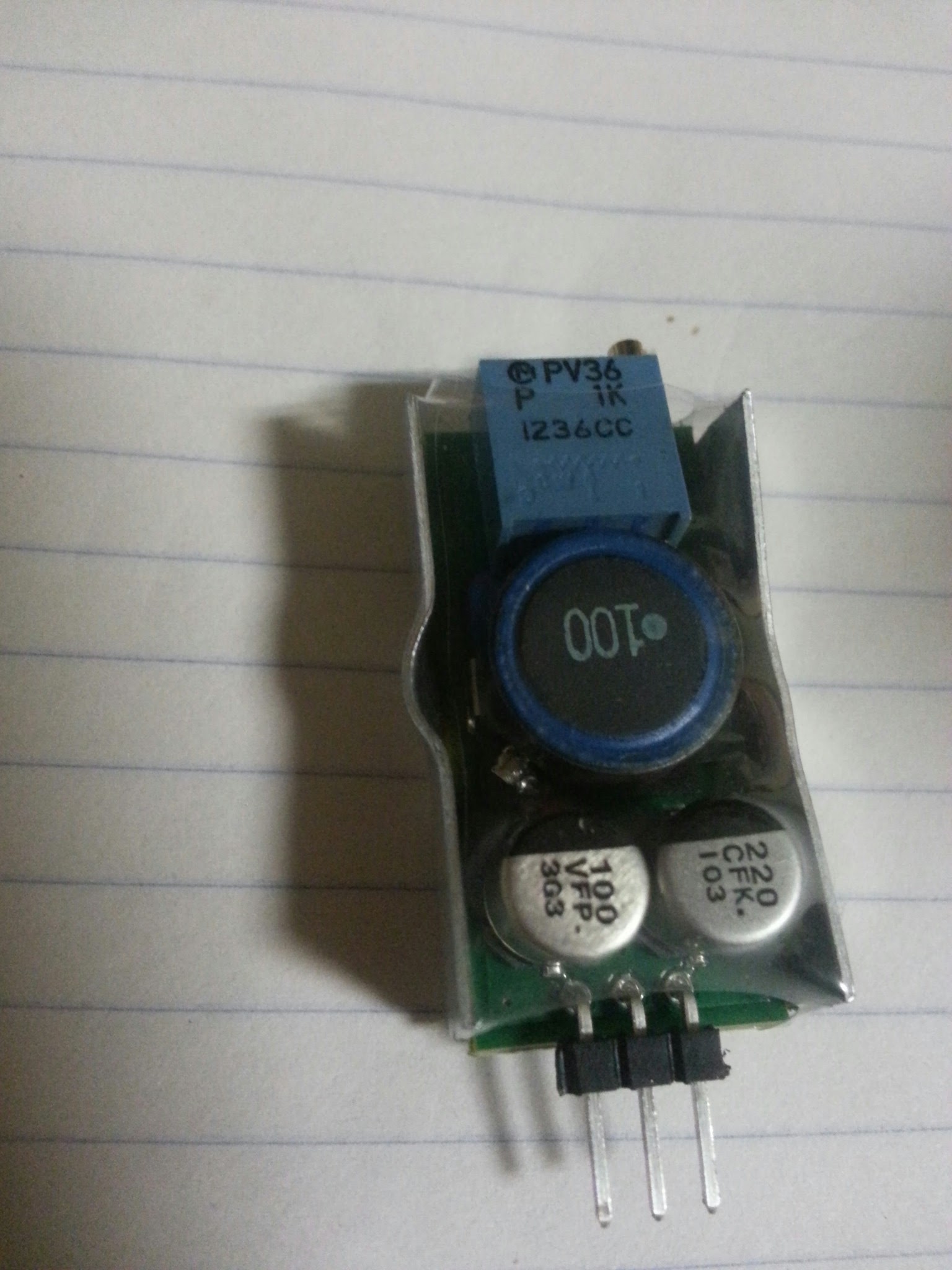

My switching regulator for my ultiboard 1.5.7 to replace the 7812 linear regulator. Has a trim out to adjust the juice

53811b821ed2d031db514339def90364.jpeg1536×2048 268 KB

4110c3fab5327fd28bf849b39c2116ec.jpeg1536×2048 345 KB

65e1ed9fc42c448ebff4ab969008c9ce.jpeg1536×2048 367 KB

69733c84a25139ae48fa58df30cf5574.jpeg1536×2048 347 KB

2

Cost?

3

$25 yeah i know but its up to 4a and voltage is adjustable. ebay has another type that has a heat sink and set voltages for 6 bucks. but i wanted to play with this. this is the equivelant to the zeus mini that is only sold in the uk.

4

I always keep a couple of these at hand: http://www.ebay.com/itm/ESY1-LM2596-DC-DC-Adjustable-Power-Step-down-Module-Output-1-5-35V-Input-4-5-40V-/141047197560?pt=US_Audio_Cables_Adapters&hash=item20d7116f78
They’re fine for just about anything, but most importantly, they’re dirt cheap.

5

http://www.ebay.com/itm/121026036348?var=420106190977&ssPageName=STRK:MEWNX:IT&_trksid=p3984.m1497.l2649 here are the others

6

I wanted the simplicity of a drop in replacement
