My machine will spend most of its life making signs.
KH 3020B 40 watt laser with some awesome upgrades the previous owner installed.
My question :
What is the format to bring in documents created in inkscape that has the fastest burn time. I have been saving them as.png.

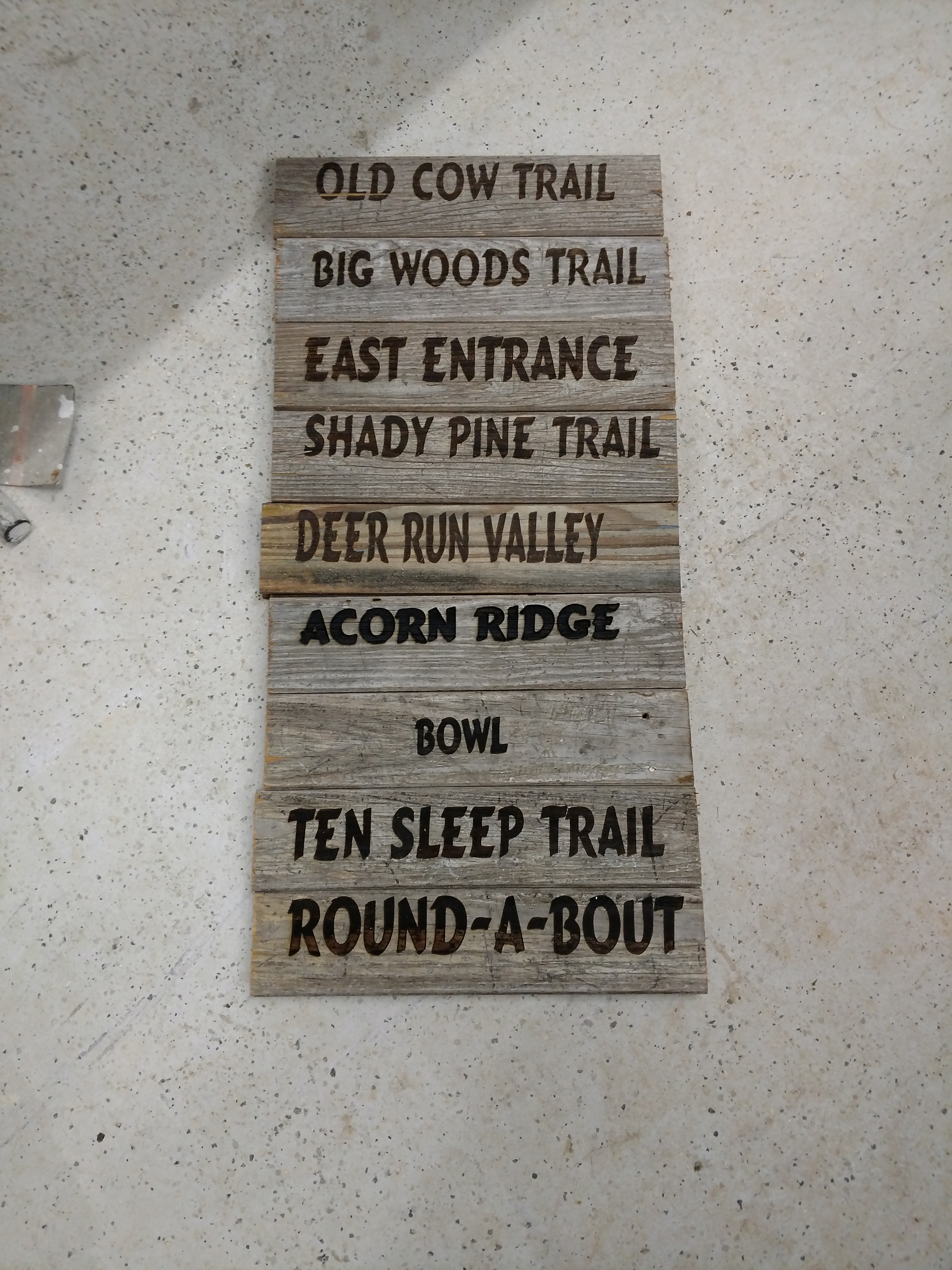

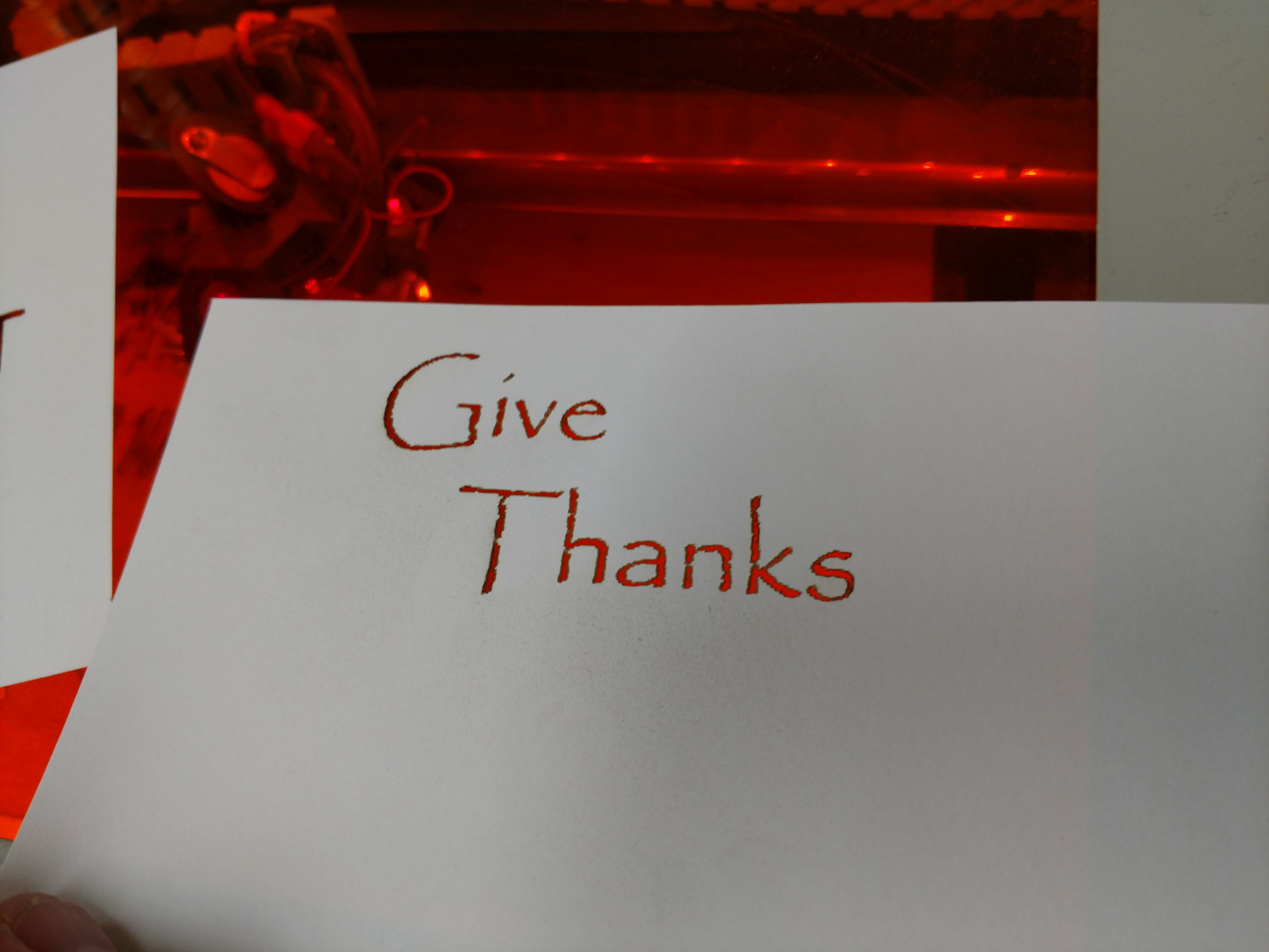

The signs below are pretty typical. They are about 3" x 12".
The time on the laser bed is about 20 minutes. I tried trace to vector but the outline is not the look I am after.
Plan is to make custom signs while customer waits.
I don’t believe the format (raster image ) will change the speed in which you setup the operations.
Either tell it to go faster or test using a bigger laser diameter ( default 0.1 ) that will defenetly make it finish sooner
@Ariel_Yahni_UniKpty If you use an upgrade the controller, can’t you get the better software options to individually engrave the letters? Guess it would have to be converted to curve data rather than an image format though.

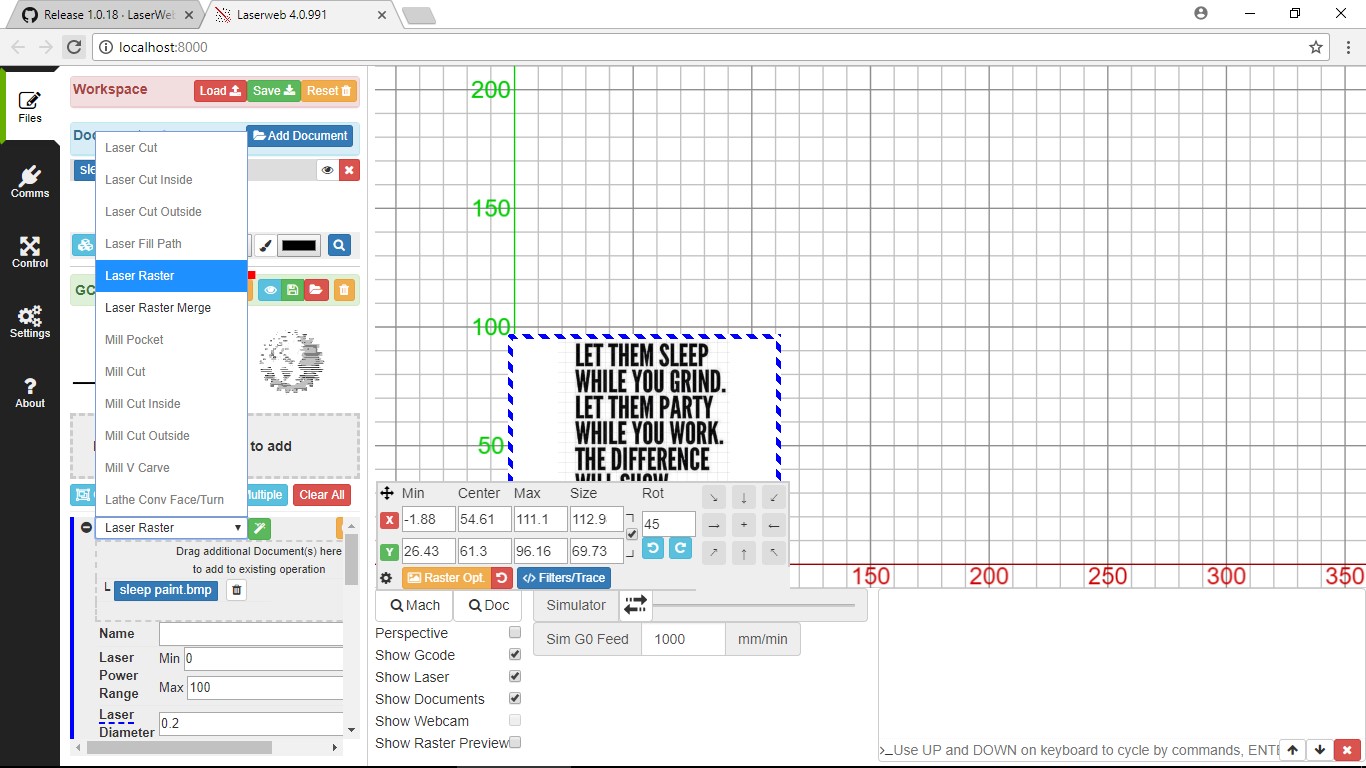

In the files section, where you select the different parts of your design for laser cutting or engraving, the default action is “Laser Cut”, when you click the dropdown, it gives you several other options (Laser Cut Inside, Laser Cut Outside, Laser Fill Path, and a few others (including milling options)).

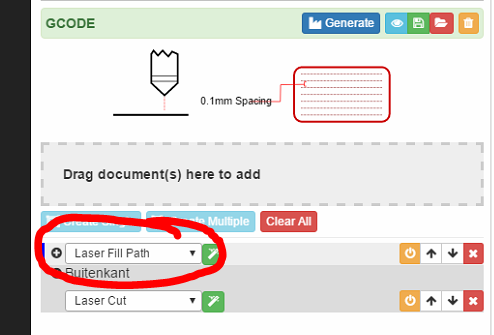

Select “Laser Fill Path” to do a filled vector instead of just the outline.
Most of the settings there are identical to “Laser Cut”, but one important extra field is the “Line Distance”, set that to the width of your beam at the burn surface. (Usually that will also be your focal point, but sometimes it makes sense to be out of focus intentionally to get a wider, less concentrated beam)
One of the things you can do to improve Gcode generation time is splitting the project in multiple actions… It somewhat disrupts the optimization if you do too many actions, but only a single thread (core) can work on a single action at a time, so by splitting the actions in to multiple, you can have more threads actively generating Gcode (up to 5 IIRC)
@Ariel_Yahni_UniKpty , in my experience it depends on the content, but for signs like the above, the only difference would probably depend on the controller due to the max throughput issue with Smoothie compared to GRBL…
Also a raster fill might possibly be more consistent, depending on the type of laser, than the “a bit here, a bit there and back again” process of laser fill…
